Category: PRO SOUND SYSTEMS, Edge X

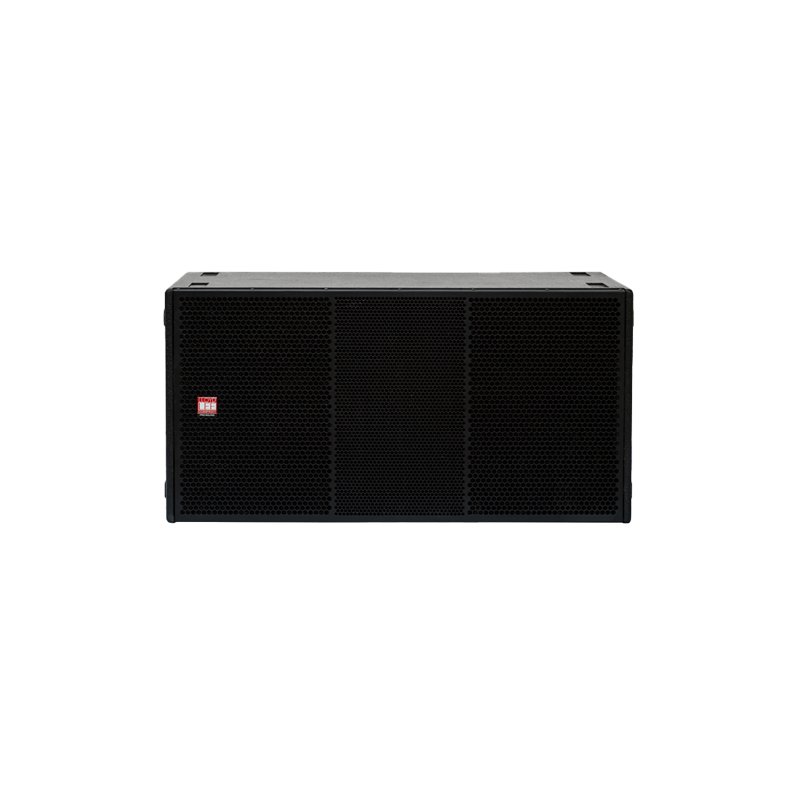

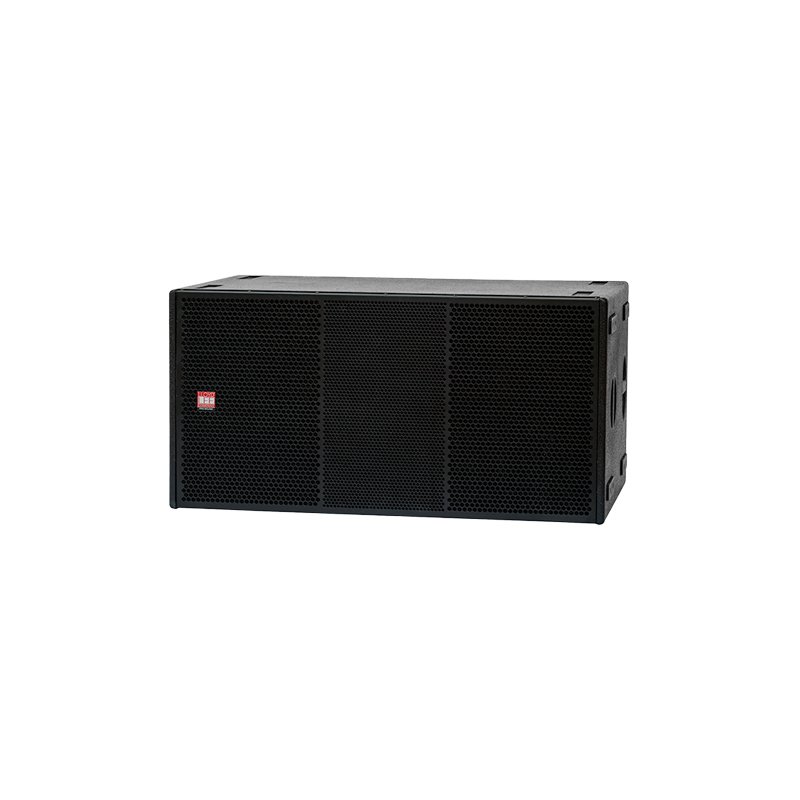

XLS 28
Very high output 2 x 18-inch subwoofer system
- New direct radiating vented LF enclosure, deep bass down to 27Hz
- 2 x 18-inch low distortion Italian (B&C) LF transducers with weather protected cone and plates for outdoor use
- Very high SPL coupled with clean and precise low frequency
- 2400W AES, 9600W peak power handling
- Extreme low frequency reproduction, excellent transient response
- Enclosure is stackable in both horizontal and vertical orientations
- Ideal for line array systems
The EDGE-X XLS 28 is a powerful and extreme low frequency subwoofer from Lloyd Lee Company.
The XLS 28 can give clean and precise bass for large outdoor venues, indoor venues and clubs.
The XLS 28 is equipped with two 18-inch 1200W state of the art woofers that bring bass reproduction closer to
the ultimate experience. Woofer suspension has been specially designed for maximum linear excursion, incredible fatigue resistance and excellent long-term reliability.
The drivers are reflex loaded by ports at centre of the enclosure and substantial internal bracing is employed.
The XLS 28 is capable of reproducing superior sound quality and detail of the highest standards. Usable response extends to 27Hz to 250Hz.
The XLS 28 can be used as stand-alone or ground stacking multiples for reproducing extremely high levels of sub frequencies.
They are ideally suited for any type of line array system and perfect for concentrated bass reproduction for clubs.
The XLS 28 finds its application in both live and recorded music. Its capacity to reproduce very high levels of sub-low frequencies with extraordinary definition, makes it the most powerful and versatile sub in its category.
- Very high output 2 x 18-inch subwoofer system
- 2400W AES, 9600W peak power handling
- 2 x 18-inch low distortion Italian (B&C) LF transducers
- High power and extreme low frequency reproduction is required
- Live sound
- Clubs
| TYPE | Subwoofer |
|---|---|
| FREQUENCY RANGE | 27Hz-250Hz |
| DRIVER LF | 2 x 18 inch, reflex-loaded direct radiator |
| RATED POWER | 2400W AES, 9600W peak |
| SENSITIVITY | 101dB |
| MAXIMUM SPL (CALCULATED @ IM) | 130dB continuous, 136dB peak |
| NOMINAL IMPEDANCE | LF: 4 ohms |
| ENCLOSURE | Rectangular, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | 1084 mm x 548 mm x 690 mm ( W x H x D) |
| WEIGHT | -- kg |
