Category: PRO SOUND SYSTEMS, Edge X

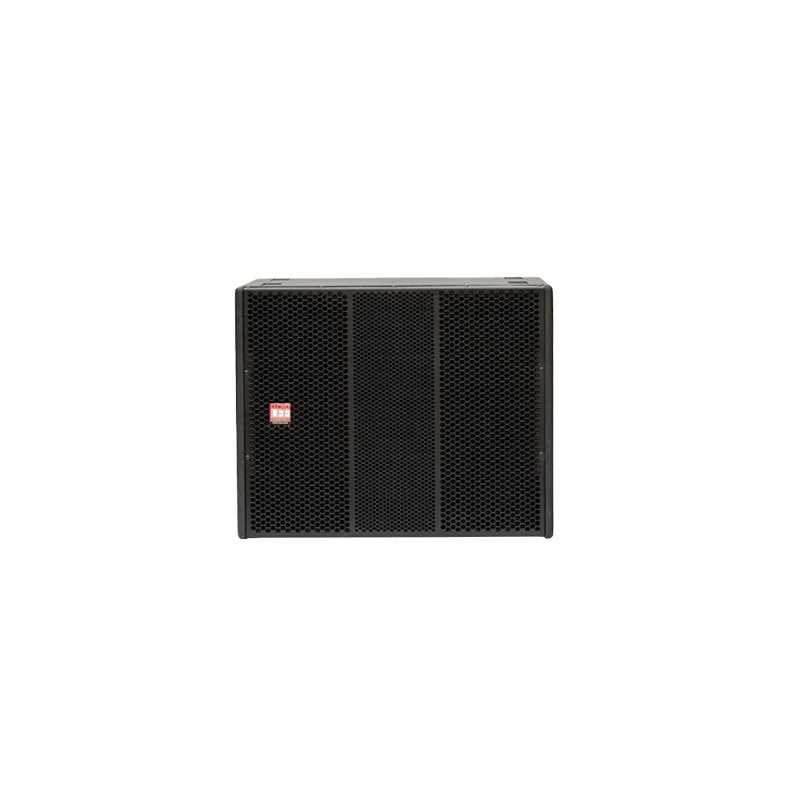

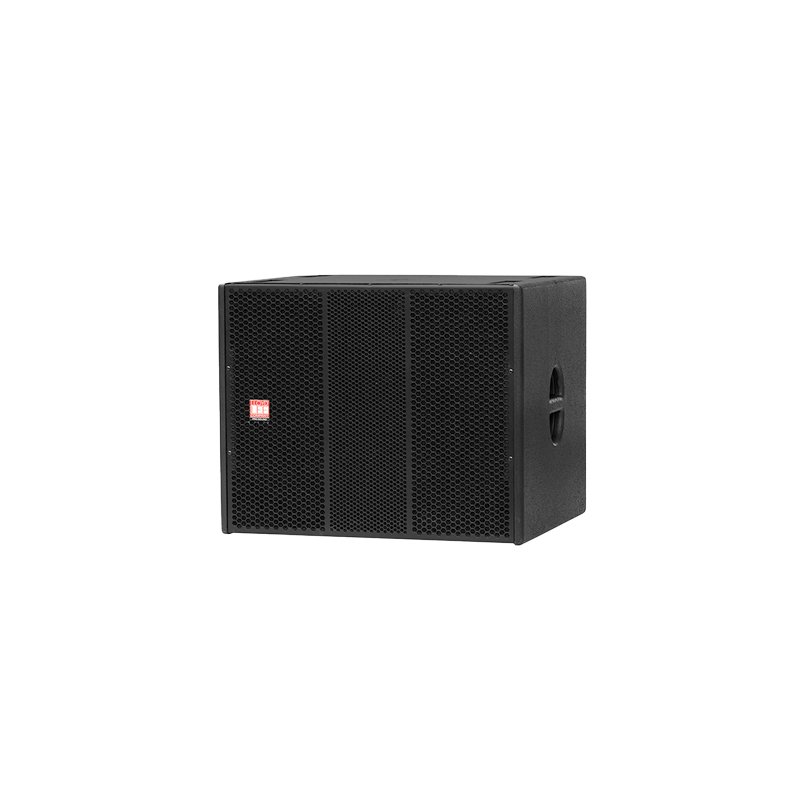

XLS 18
Compact high output 18-inch subwoofer system
- New very compact and powerful design
- 1200W AES, 4000W peak power handling
- Extended low frequency reproduction, excellent transient response
- 18-inch cutting edge technology Italian (B&C) woofer for maximum performance

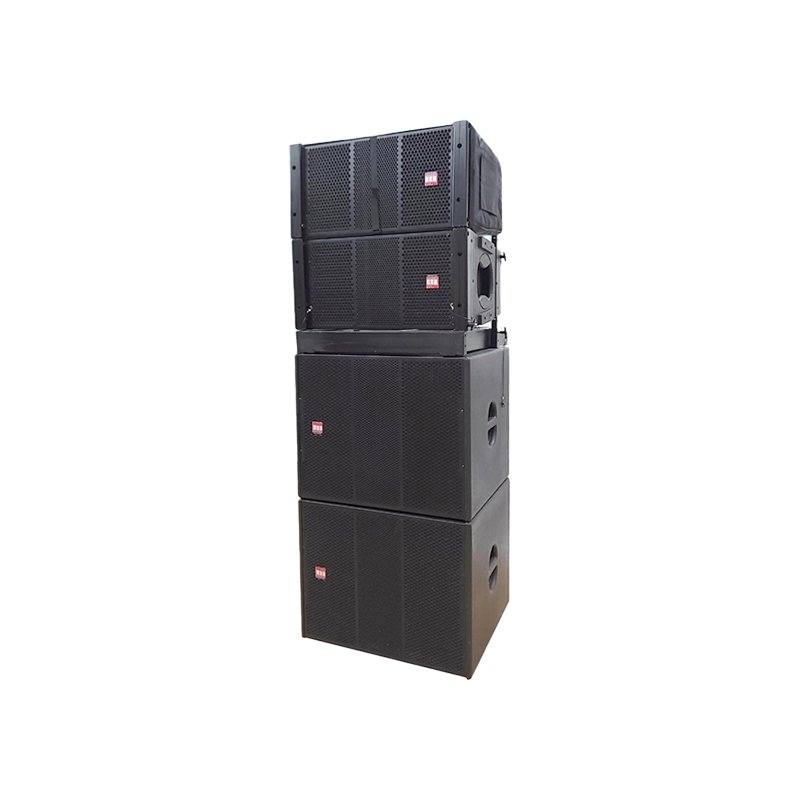

- Enclosure is stackable in both horizontal and vertical orientations
- Direct radiating vented LF enclosure, solid bass down to 28Hz.
- Pole mount to elevate a two-way loudspeaker
The EDGE-X XLS 18 is a new addition to the EDGE-X series of extreme low frequency subwoofers from Lloyd Lee Company.
The XLS 18 can deliver intense bass, in clubs or medium outdoor applications. The XLS 18 design provides excellent transient response, high efficiency and extreme low frequency reproduction.
The sub is equipped with an 18-inch 1200W state of the art woofer that delivers high quality low frequency with excellent definition.
The woofer's rigid cones and massive ferrite magnetic structures in a 'longthrow' design that assures linear movement and very high controlled excursion even at high power levels.
Woofer suspension is specially designed for maximum linear excursion, incredible fatigue resistance and excellent long-term reliability.
The XLS 18 finds its application in both live and recorded music. Its capacity to reproduce very high levels of sub-low frequencies with extraordinary definition, makes it the most versatile sub in its category.
- Compact high output 18-inch subwoofer system
- 1200W AES, 4000W peak power handling
- 18-inch cutting edge technology Italian (B&C) woofer
- Live sound
- Clubs
- Auditorium
- Club sound
- Various installations
| TYPE | Subwoofer |
|---|---|
| FREQUENCY RANGE | 25Hz-250Hz |
| DRIVER LF | 1 x 18 inch, reflex-loaded direct radiator |
| RATED POWER | 1200W AES, 4000W peak |
| SENSITIVITY | 98dB |
| MAXIMUM SPL (CALCULATED @ IM) | 127dB continuous, 133dB peak |
| NOMINAL IMPEDANCE | LF: 8 ohms |
| ENCLOSURE | Rectangular , BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | 685 mm x 555 mm x 578 mm ( W x H x D) |
| WEIGHT | -- kg |
