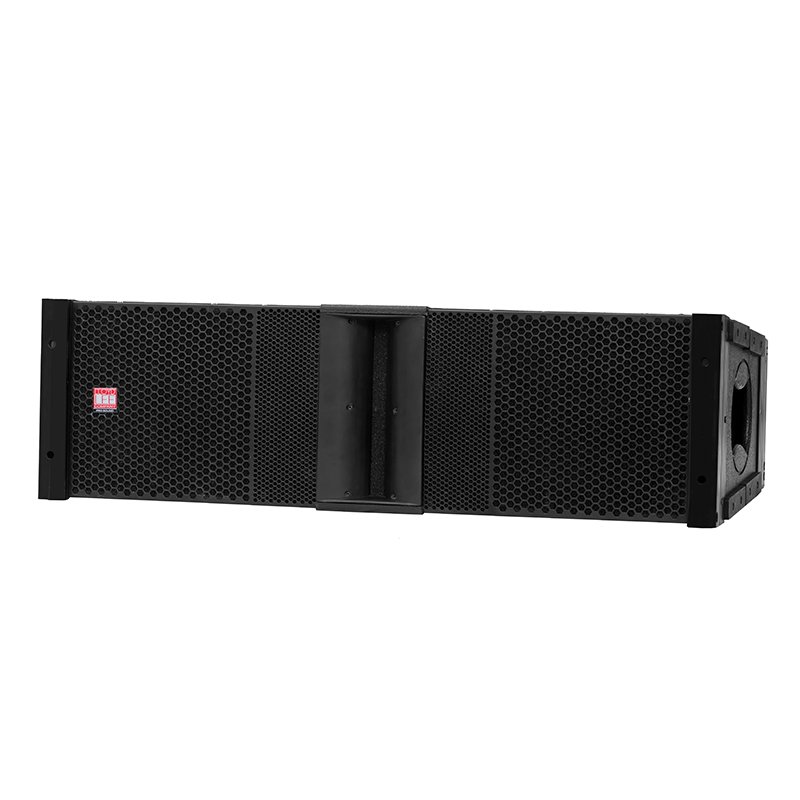

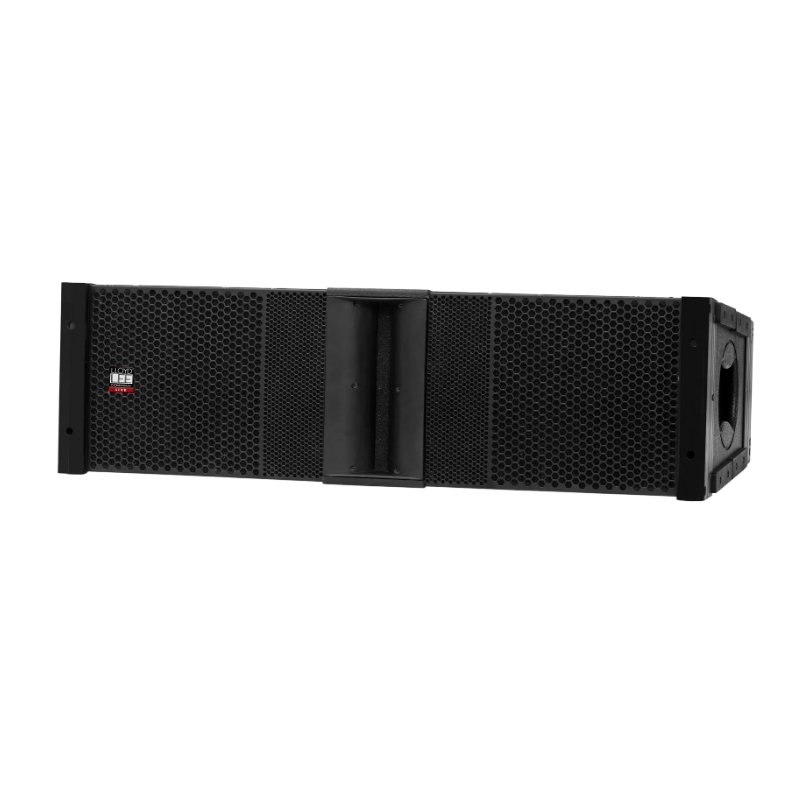

The EDGE-X XLA 9 is 3-way line array loudspeaker system designed to bring outstanding line array performance to live sound and a variety of installations.

It meets the need for a powerful, scalable system that can be flown or ground stacked for wide range of events, indoor and outdoor.
XLA 9 may be complemented by the EDGE-X X48 or EXTREME R-ONE subwoofers for exceptional low frequency extension or may be used without subwoofers for certain applications.

The XLA 9 is an externally powered, 3-way tri amplified line array module which integrates low, mid and high frequency transducers in a very compact design. Utilizing specially developed Italian drivers, the XLA 9 ensures very high output and superb quality from a very compact and light weight enclosure.

Low frequency section employs dual 14-inch-high excursion cone drivers mounted in bass reflex configuration to ensure powerful low frequency performance. Specially developed 7-inch mid drivers and 1.4-inch neodymium large format HF drivers are coupled to a phase corrected MF/HF section to ensure accurate summation, smooth frequency response, and precise horizontal dispersion throughout the MF/HF band.
Dual 1.4-inch exit neodymium high performance compression drivers are mounted on to two individual high frequency plane wave converters.
The resultant planer wave is then coupled to the high horn to ensure precise high frequency reproduction, and even arraying in all situations.

The XLA 9 incorporates proprietary rigging systems on their sides for safe, easy and quick flying or stacking. The physical angles can be preset for a wider coverage before flying the system; permissible angles are from 0° to 12°.

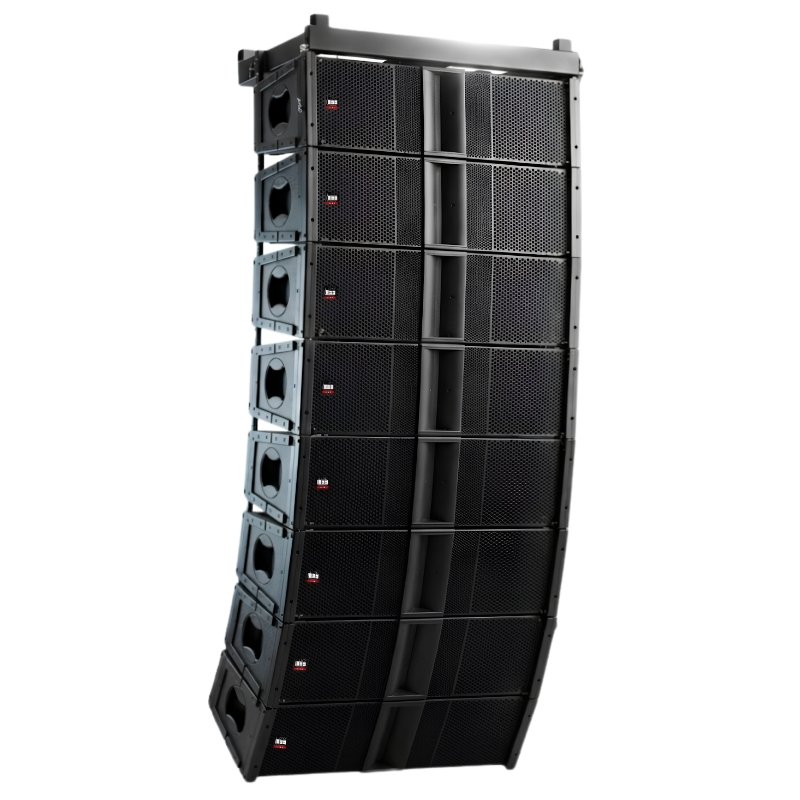

The XLA 9 can be flown or stacked in a variety of ways. The enclosure size, shape, weight and rigging are optimized for ease of transport and handling. Arrays may be easily flown or ground stacked.
Despite the size, modules and arrays both deliver exceptionally high output capability and predictable pattern control.

• High Output 2 x 14-inch LF + 4 x 7-inch MF + 2 x 1.4-inch HF
• High performance three-way full-range line array system
• All Neodymium Italian drivers for superior performance and durability
