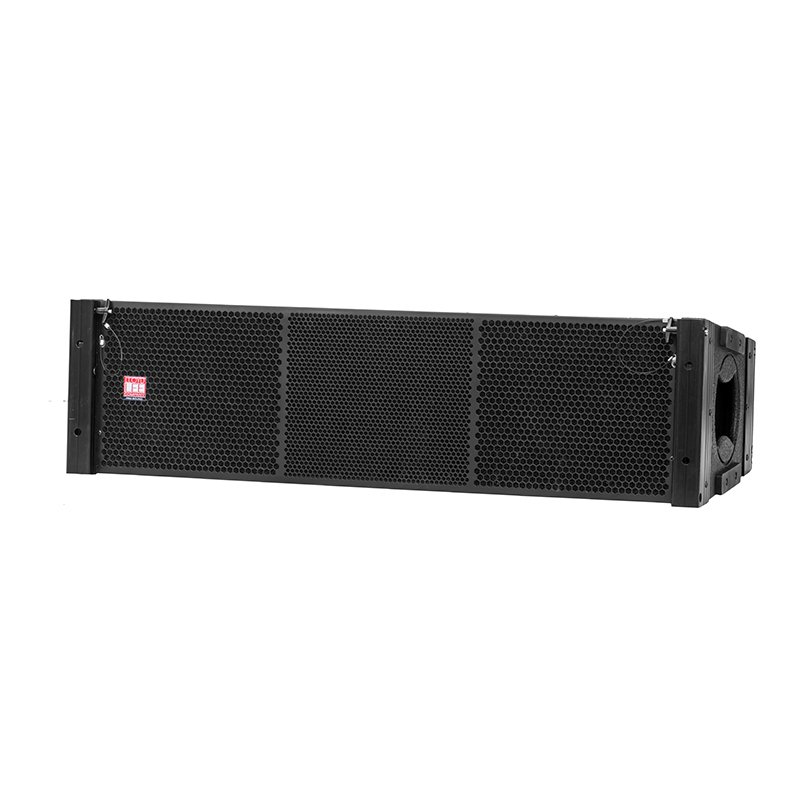

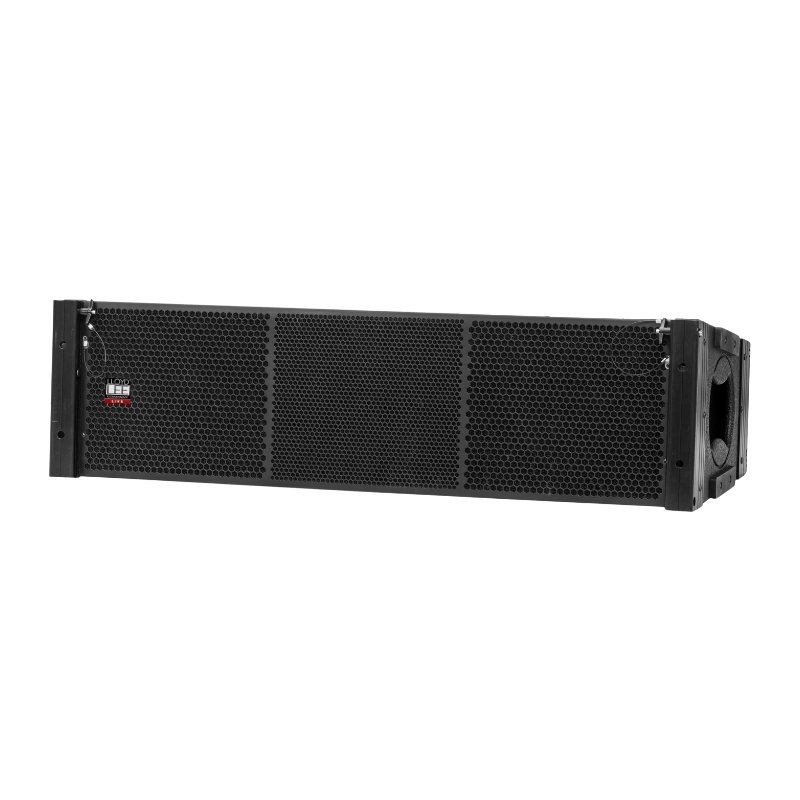

The EDGE-X XLA 7 is 3-way line array loudspeaker system designed to bring outstanding line array performance to live sound
and a variety of installations. Though compact in size, the EDGE-X XLA 7 is a full-bandwidth system and may be used without
subwoofers for certain applications. It meets the need for a versatile, scalable system that can be flown or ground stacked for
wide range of events, indoor and outdoor. XLA 7’s may be complemented by the EDGE-X  XLS 48, ELAN PRO LF7 PRO,
LF9 PRO or EXTREME R-ONE subwoofers for exceptional low frequency extension.

The XLA 7 is an externally powered, 3-way tri amplified line array module which integrates low, mid and high frequency
transducers in a very compact design. Utilizing new horn loaded techniques and specially developed Eighteen Sound drivers,
the XLA 7 ensures very high output and superb quality from a very compact enclosure size.

Low frequency section employs dual 12-inch high excursion cone drivers mounted in bass reflex configuration to ensure powerful low frequency performance. Specially developed pairs of 8-inch mid drivers and 1.4-inch neodymium HF drivers are coupled to a large proprietary phase corrected MF/HF horn to ensure accurate summation, smooth frequency response, and precise horizontal dispersion throughout the MF/HF band. Dual 1.4-inch exit neodymium high performance compression drivers are mounted on to two individual high frequency plane wave converters. The resultant planer wave is then coupled to the complex mid-high horn to ensure precise high frequency reproduction, and even arraying in all situations.

The XLA 7 incorporates proprietary rigging systems on their sides for safe, easy and quick flying or stacking. The physical
angles can be preset for a wider coverage before flying the system; permissible angles are from 0° to 12°. The XLA 7
trapezoidal shape and rear located splay angle adjusters maintains the front spacing the same, providing the array with a
continuous front baffle, for improved array performance.

Despite the compact size, modules and arrays both deliver exceptionally high output capability and predictable pattern control.
The XLA 7 can be flown or stacked in a variety of ways. The enclosure size, shape, weight and rigging are optimized for ease
of transport and handling. Arrays may be easily flown or ground stacked.

• High Output 2 x 12-inch LF + 2 x 8-inch MF + 2 x 1.4-inch HF
• High performance three-way full-range line array system
• Italian drivers for superior performance and durability
