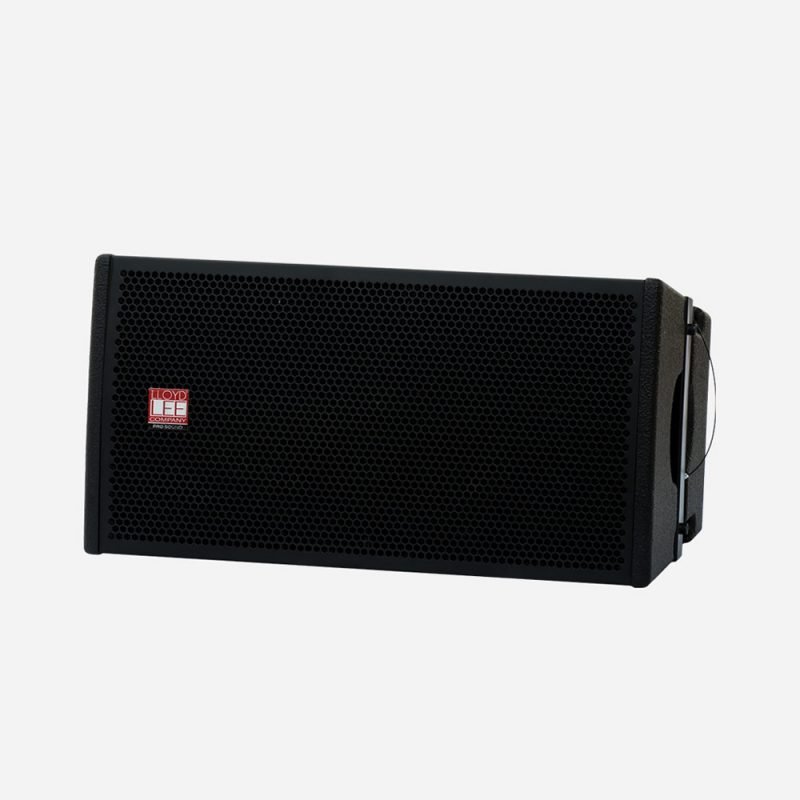

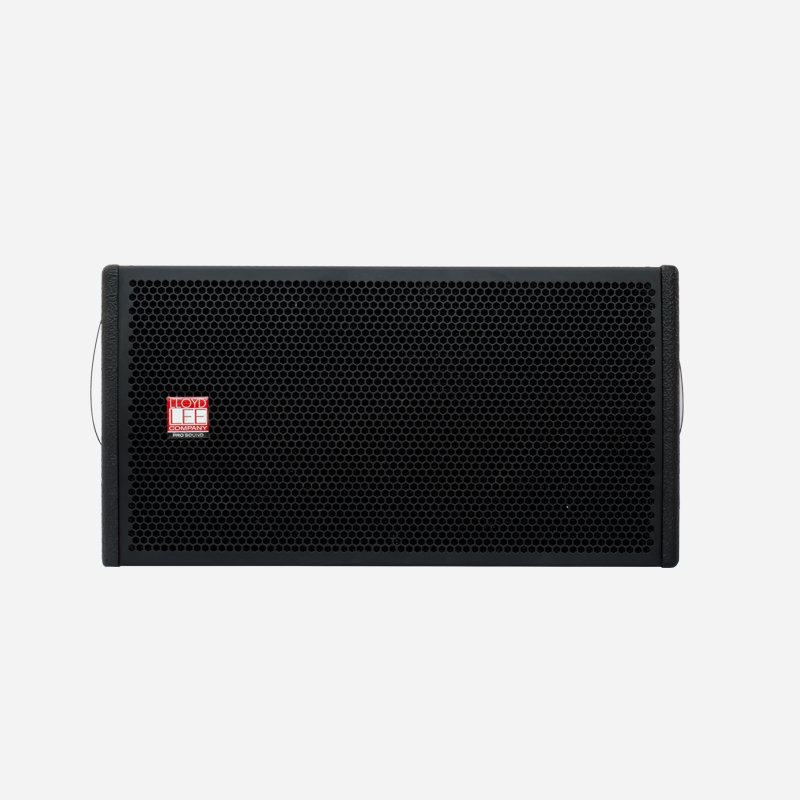

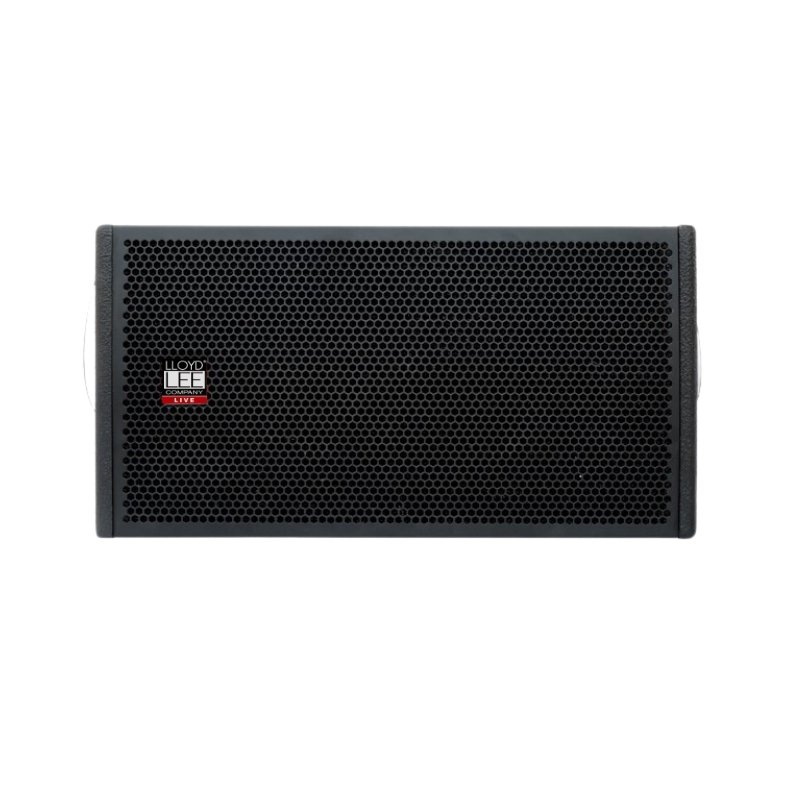

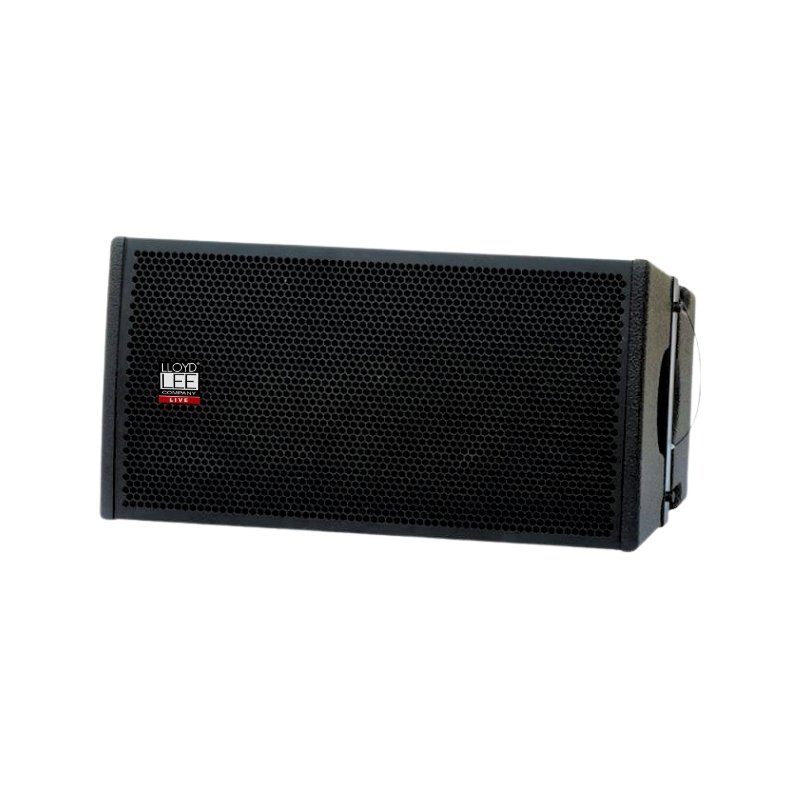

The EDGE-X XLA 1-V2 is a compact passive 2-way line array loudspeaker module passive speaker which integrates mid and high frequency transducers in a single unit. XLA 1-V2 utilizes world class Italian drivers that provide optimum performance and features innovative line array technology within a compact, user friendly package.

Mid-bass frequency reproduction is handled by single 12-inch (B&C) woofer in bass reflex configuration. This high power and high excursion 12-inch woofer has been specially built for the EDGE XLA 1-V2, to ensure punchy low-frequency and superb mid frequency performance. For high frequencies 3 x 1-inch exit custom-built B&C compression driver is mounted on to a high frequency plane wave converter. The resultant planer wave is then coupled to a proprietary high frequency horn to ensure, wide dispersion, precise high frequency coverage and even arraying in all situations.

As a two-way full-range system it can be utilized for reinforcing conferences and seminars as a standalone but for applications requiring low frequency reinforcement it may be combined with the EDGE X-XLS 18, XLS 28 and ELAN PRO LF1 pro subwoofers, extending the range to 28Hz.

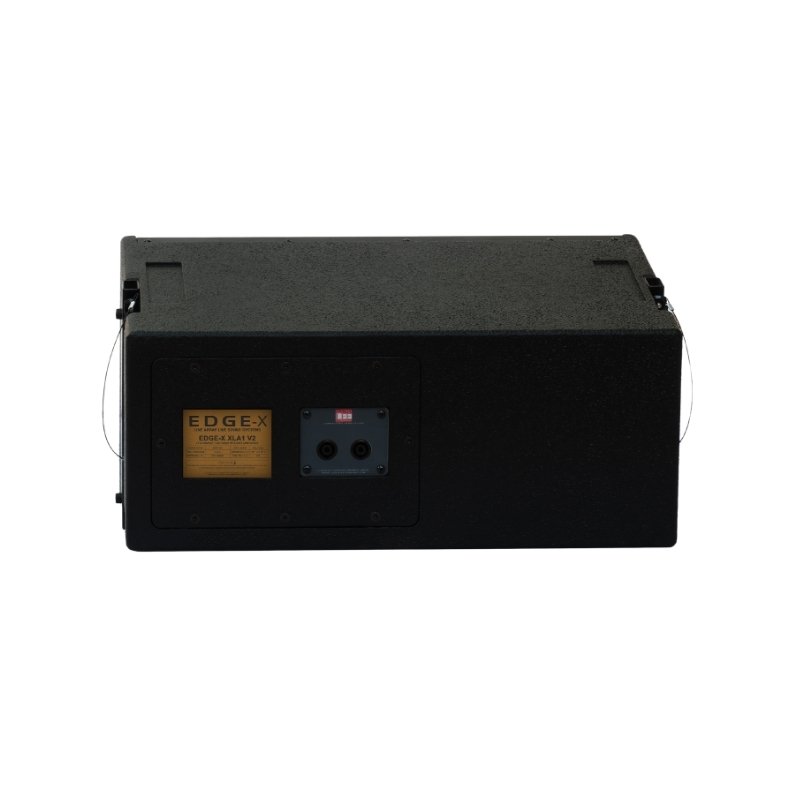

The EDGE-X XLA 1-V2 incorporates proprietary rigging systems on their sides for safe, easy and quick flying, simple connection of enclosures and optional array frame angle allows arrays of up to maximum of four enclosures to be flown. The XLA 1-V2 trapezoidal shape and side located splay angle adjusters maintains the front spacing the same, providing the array with a continuous front baffle, for improved array performance.

Despite the compact size, XLA 1-V2 arrays deliver both, exceptionally high output capability and predictable pattern control. The XLA 1 V2 meets the need for a versatile, scalable system that can be flown or pole mounted for corporate events, theatres, indoor and outdoor venue applications, including portable and installed. It is also suitable as a delay system for large scale outdoor sound reinforcement. The enclosure size, shape, weight and rigging are optimized for ease of transport and handling.

• High output 12-inch LF + 1 x 1.4-inch HF
• High performance two-way full-range line array system
• Specialized B&C Italian drivers for superior performance and durability
