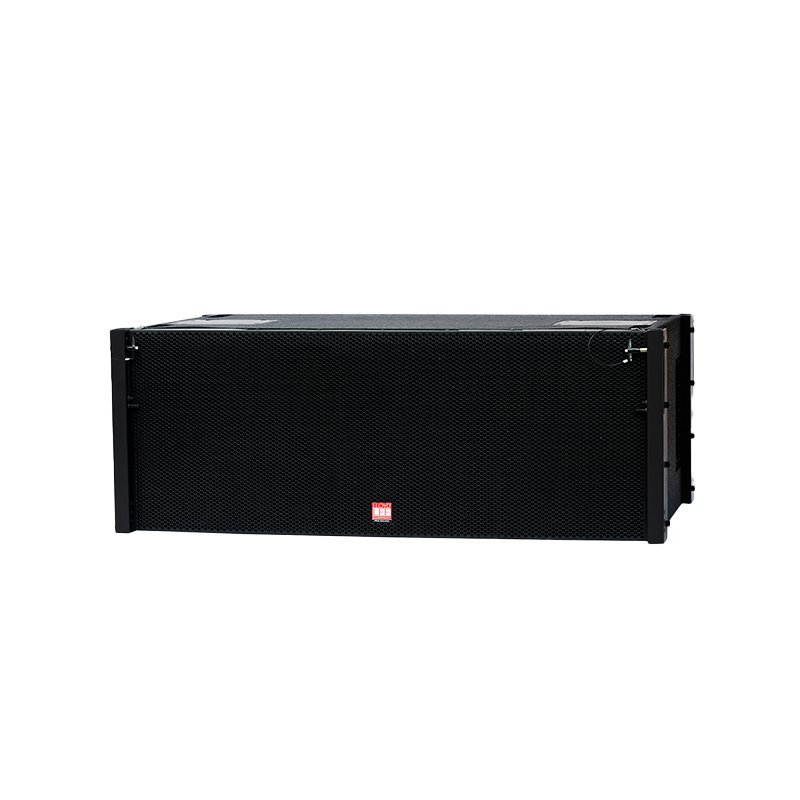

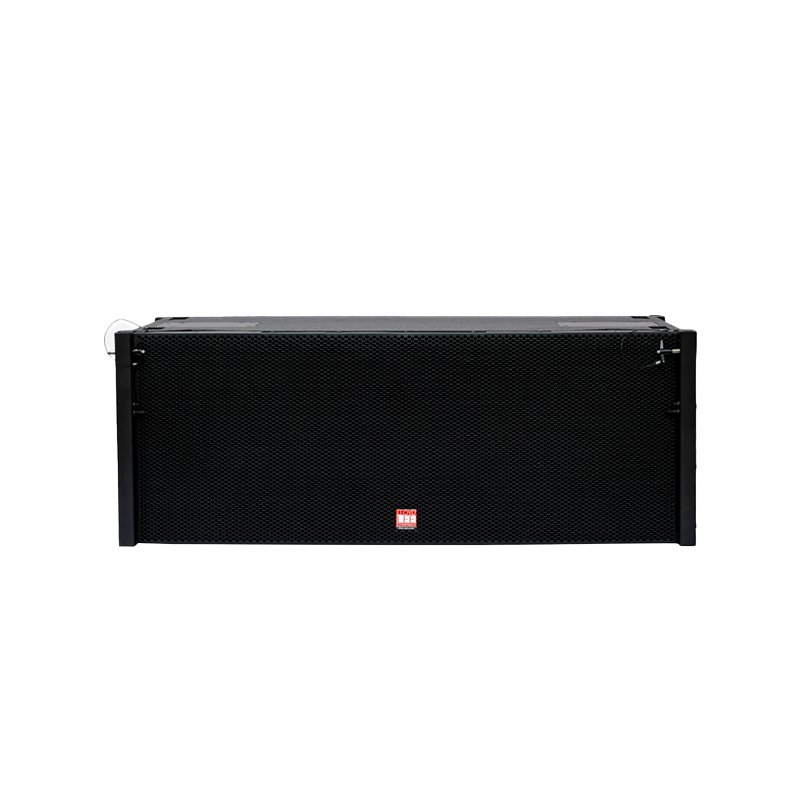

ULTRA LINE+
Extremely high output array-able mid-high speaker system
• Very high acoustic output for very compact enclosure
• Specialized mid and high frequency transducers
• 4 x 12-inch high performance mid-bas section
• 6 x1.4-inch exit high efficiency Neodymium compression drivers for precise performance
• Very long throw
• 100°H x 10°V coverage pattern
ULTRA LINE+ was designed as compact, array-able mid-high system for large scale sound reinforcement.
ULTRA LINE+ is a far throw, compact, 2-way mid-high system in a rectangular flyable enclosure with a 90° H x10° V coverage pattern.
The horns and drivers were designed as part of the RED development and represent a step forward in state of art loudspeaker design in terms of high acoustic output.
ULTRA LINE+ possesses excellent throw and coverage like the famous EXTREME RED loudspeaker, along with further enhancement in driver technology for higher power handling and very high SPL.
• Very high output array-able mid-high speaker system
• Very high acoustic output for very compact enclosure
• Specialized mid and high frequency transducers
• Live sound (medium to large scale sound reinforcement)
• Concert halls, stadiums
| TYPE | Two-way mid-high horn loaded |
|---|---|
| FREQUENCY RANGE | 120Hz-18kHz |
| DRIVERS LF | HF | 4 x 12-inch horn loaded | 6 x 1.4-inch exit HF compression driver horn loaded |
| RATED POWER | LMF 2400W AES, 8000W peak | HF 720W AES, 2880W peak |
| SENSITIVITY | LMF 110 dB | HF 117 dB |
| MAXIMUM SPL (CALCULATED @ IM) | LMF 141dB continuous, 147dB peak | HF 148dB continuous, 154dB peak |
| NOMINAL IMPEDANCE | LMF 2 x 8 ohms | HF 2 x 8 ohms |
| DISPERSION (-6db) | 100º horizontal x 10º vertical |
| ROTATABLE HORN | - |
| CROSSOVER | 1.2kHz active |
| ENCLOSURE | Rectangular, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |

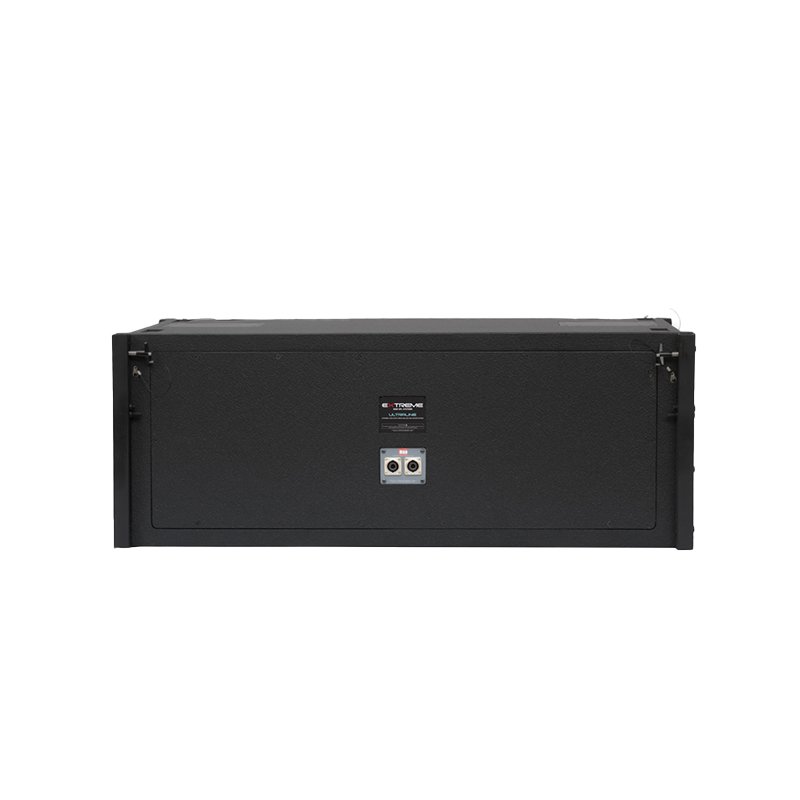

| CONNECTORS | 2 x Neutrik NL8 |
| DIMENSIONS | --- mm x --- mm x --- mm ( W x H x D) |
| WEIGHT | --- Kg |
