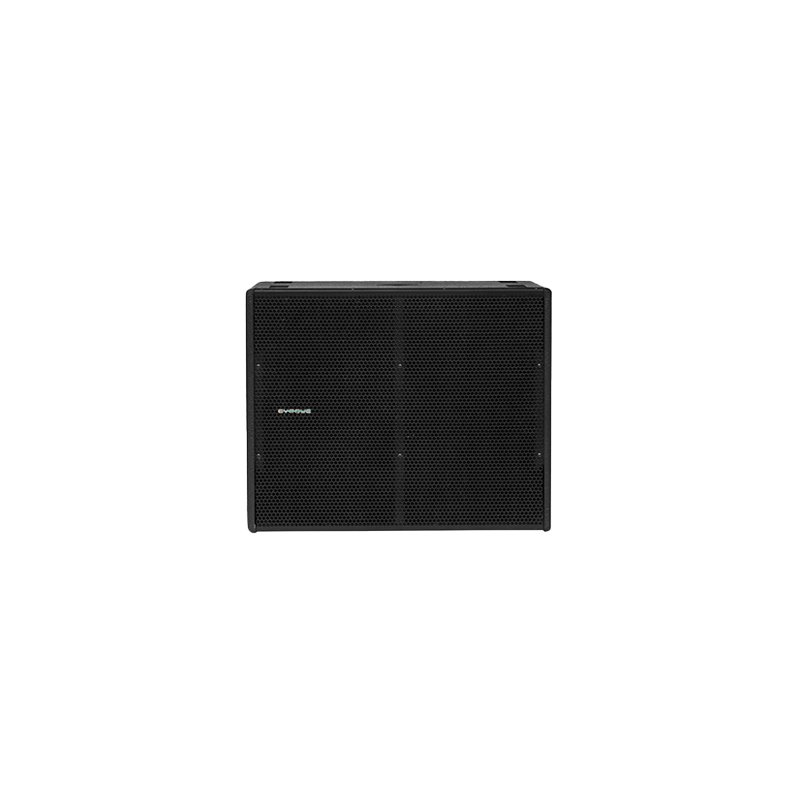

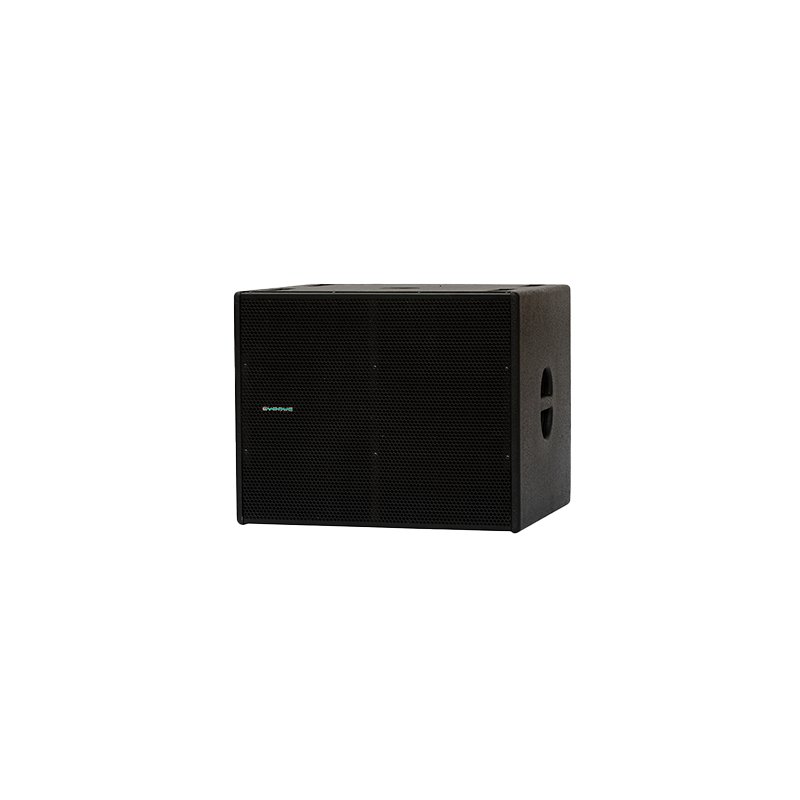

SUBWOOFER 18
Compact high output 18-inch subwoofer system
• Very compact design
• 1200W AES, 4000W peak power handling
• Extended low frequency reproduction, excellent transient response
• 18-inch cutting edge technology Neo Italian woofer for maximum weight reduction and extremely high-power handling
• Enclosure is stackable in both horizontal and vertical orientations
• Direct radiating vented LF enclosure, solid bass down to 28Hz
• Pole mount to elevate a two-way loudspeaker
The EVOQUE SUBWOOFER 18 is a new addition to the EVOQUE series of extreme low frequency subwoofers from Lloyd Lee Company.
The EVOQUE SUBWOOFER 18 can deliver intense bass, in clubs or medium outdoor applications.
The EVOQUE SUBWOOFER 18 design provides excellent transient response, high efficiency and extreme low frequency reproduction.
EVOQUE SUBWOOFER 18 is equipped with an 18-inch 1200W state-of-the-art woofer that delivers high quality low frequency with excellent definition.
Its rigid cones and massive ferrite magnetic structures in a "longthrow" design assures linear movement and very high controlled excursion even at high power levels.
Woofer suspension is specially designed for maximum linear excursion, incredible fatigue resistance and excellent long-term reliability.
The EVOQUE SUBWOOFER 18 finds its application in both live and recorded music.
Its capacity to reproduce very high levels of sub-low frequencies with extraordinary definition, makes it the most versatile sub in its category.
• Compact high output 18-inch subwoofer system
• 1200W AES, 4000W peak power handling
• Very compact design
• Auditoriums
• Club sound
• Various installations
| TYPE | Subwoofer |
|---|---|
| FREQUENCY RANGE | 25Hz-250Hz |
| DRIVERS LF | 1 x 18-inch, reflex-loaded direct radiator |
| RATED POWER | 1200W AES, 4000W peak |
| SENSITIVITY | 98dB |
| MAXIMUM SPL (CALCULATED @ IM) | 127dB continuous, 133dB peak |
| NOMINAL IMPEDANCE | LF: 8 Ohms |
| DISPERSION (-6db) | - |
| ROTATABLE HORN | - |
| CROSSOVER | - |
| ENCLOSURE | Rectangular , BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | --- mm x --- mm x --- mm (W x H x D) |
| WEIGHT | -- kg |
