Category: PRO SOUND SYSTEMS, EVOQUE
SUBWOOFER 15
Compact high output 15-inch subwoofer
• Very compact design
• 600W continuous, 2400W peak power handling
• Direct radiating vented LF enclosure, solid bass down to 35Hz.
• 15-inch low distortion B&C LF transducer with weather protected cone and plates for outdoor use
• Pole mount to elevate a two-way loudspeaker

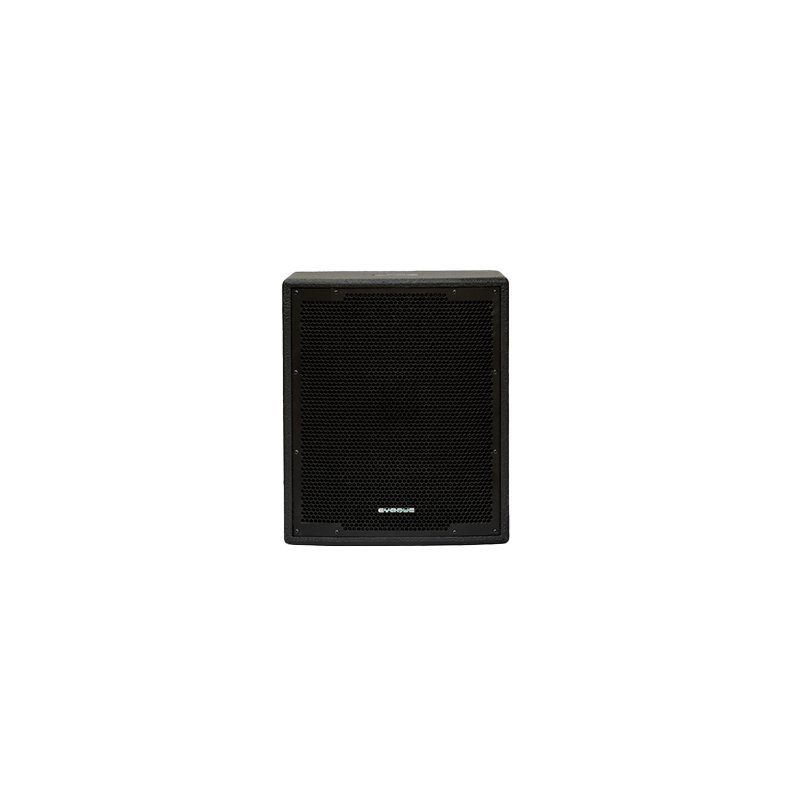

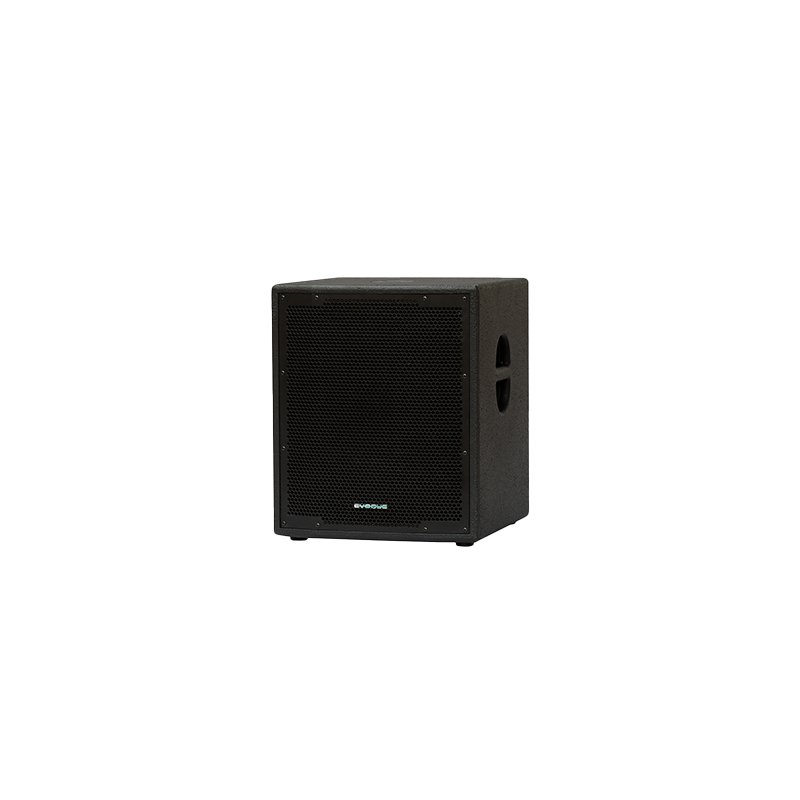

The EVOQUE SUBWOOFER 15 is a compact yet powerful single 15-inch subwoofer designed to complement the full range products in the elite series.
The EVOQUE SUBWOOFER 15 employs a powerful 15-inch 600W continuous power handling woofer.
Reflex loaded woofer orientation has been used to ensure excellent low frequency performance for a very compact enclosure.
The SUBWOOFER 15 has been specifically designed for applications where size and weight are an important factor.
The enclosure is equipped with 1-3/8-inch stand mount on the top for use with full range cabinets, without the need for extra mounting stands.
The EVOQUE SUBWOOFER 15 is the perfect companion sub to the EVOQUE SATELLITE 8 and 10 for compact and portable performance.
The EVOQUE SUBWOOFER 15 is capable of delivering outstanding power and an extended response down to 32Hz.
When used with the elite full-range speaker systems, the EVOQUE SUBWOOFER 15 provides high output sound reinforcement for clubs, large halls, or outdoor events in a compact package which can be moved easily by a one-person crew.
• Compact high output 15-inch subwoofer
• 600W AES, 2400W peak power handling
•Very compact design
• Auditoriums
• Club sound
• Various installations
| TYPE | Subwoofer |
|---|---|
| FREQUENCY RANGE | 41Hz-120Hz |
| DRIVERS LF | 1 x 15-inch, reflex-loaded direct radiator |
| RATED POWER | 600W AES, 2400W peak |
| SENSITIVITY | 98dB |
| MAXIMUM SPL (CALCULATED @ IM) | 120dB continuous, 126dB peak |
| NOMINAL IMPEDANCE | LF: 8 Ohms |
| DISPERSION (-6db) | - |
| ROTATABLE HORN | - |
| CROSSOVER | - |
| ENCLOSURE | Rectangular, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel Powder Coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | -- mm x --- mm x -- mm (W x H x D) |
| WEIGHT | -- Kg |
