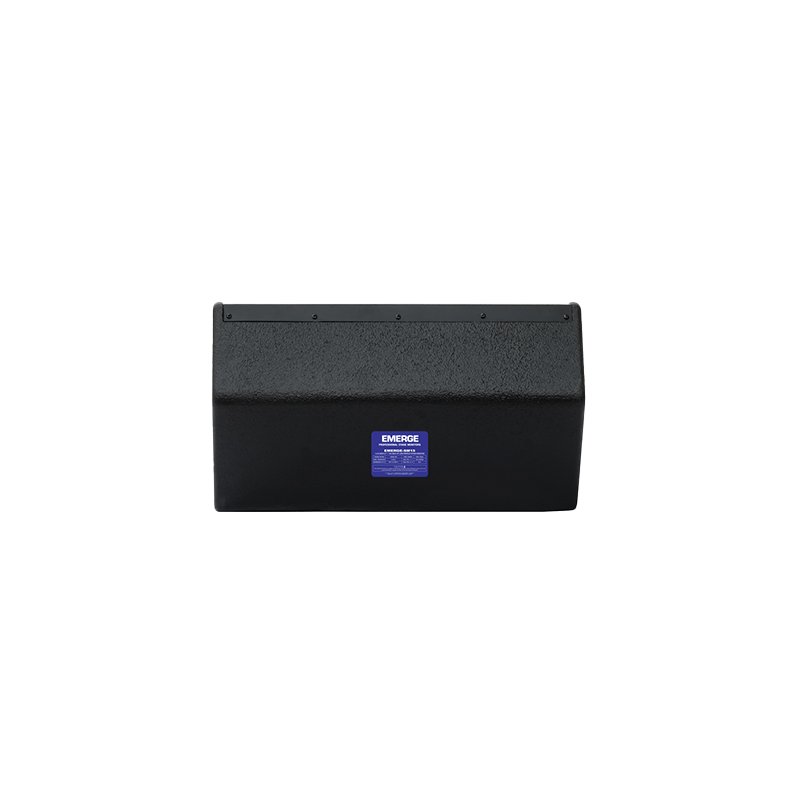

SM 15
Professional high performance 15-inch LF + 1.4-inch HF low profile stage monitor
• New compact low-profile design
• Superb frequency response
• High gain before feedback
• 1000W 15-inch high power Italian (B&C) woofer
• 100W 1.4-inch exit pure titanium, large format compression driver
• Weather protected components and wear resistant ergonomic cabinet design for outdoor use
• Vented LF enclosure, bass down to 50Hz
The SM15 is an exceptional stage monitor designed to exceed the expectations of the most demanding performers and engineers.
This low-profile, high output stage monitor exhibits a smooth response, high gain before feedback, remarkable vocal clarity and very high SPL in an extremely compact design.
High frequencies are reproduced by a large format Italian 1.4-inch exit compression driver that is coupled to 60º x 90º horn.
This exceptional design provides a consistent frequency response and SPL at the optimum height, allowing the performer to move around the stage without any drop-in response or power.
Low-mid frequencies are reproduced by a high efficiency, high power handling 15-inch Italian (B&C) woofer featuring a 4-inch voice coil and weather protected cone for outdoor use.
• Professional high performance 15-inch LF + 1.4-inch HF low profile stage monitor
• 1000W 15-inch-high power Italian (B&C) woofer and 1.4-inch large format B&C compression driver
• Compact low-profile design
• Live sound, auditoriums, theatres
• Main vocal monitor
• High output monitor for drums and keyboards
• Front fill
| TYPE | Two-way compact (full-range) |
|---|---|
| FREQUENCY RANGE | 50Hz-19kHz |
| DRIVERS LF | HF | 1 x 15-inch reflex-loaded direct radiator | 1 x 1.4-inch exit HF compression driver horn loaded |
| RATED POWER | 1000W AES, 4000W peak |
| SENSITIVITY | 98dB |
| MAXIMUM SPL (CALCULATED @ IM) | 128dB continuous, 134dB peak |
| NOMINAL IMPEDANCE | 8 Ohms |
| DISPERSION (-6db) | 50º horizontal x 90º vertical |
| ROTATABLE HORN | - |
| CROSSOVER | 1.2kHz passive |
| ENCLOSURE | Trapezoid, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | 817 mm x 406 mm x 480 mm (W x H x D) |
| WEIGHT | -- kg |
