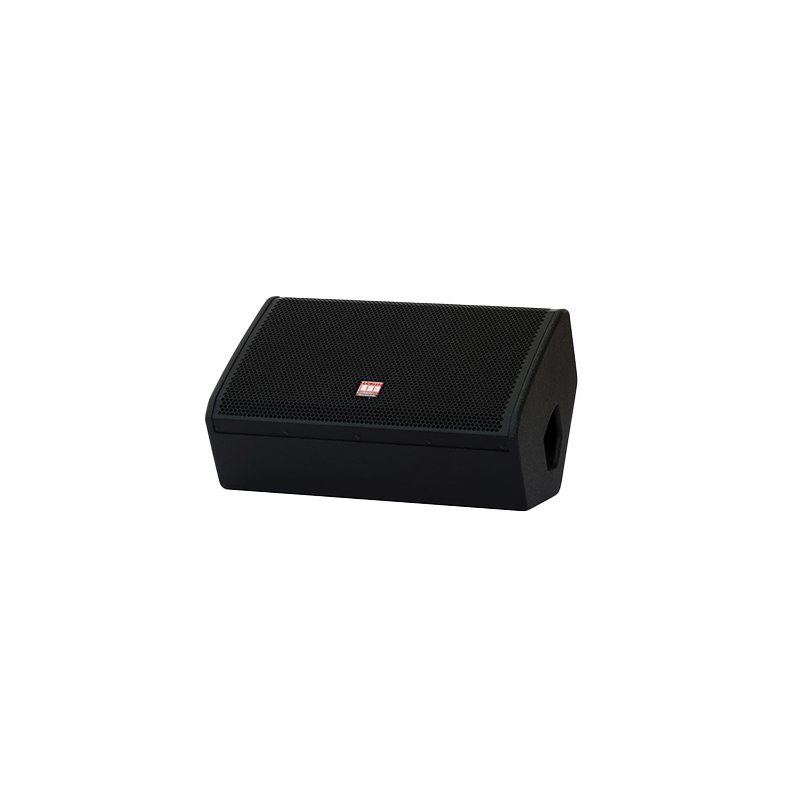

SM 12
Professional high performance 12-inch LF + 1.4-inch HF low profile stage monitor
• New compact low-profile design
• Superb frequency response
• High gain before feedback
• 700W 12-inch high power Italian (B&C) woofer
• 80W 1.4-inch exit pure titanium, large format compression driver
• Weather protected components and wear resistant ergonomic cabinet design for outdoor use
• Vented LF enclosure, bass down to 59Hz
The SM15 and SM12 are high performance stage monitors designed to exceed the expectations of the most demanding performers and engineers.
The SM15 and SM12's low-profile, high output design exhibits a smooth response, high gain before feedback, remarkable vocal clarity and very high SPL in an extremely compact design.
The SM15 used a large format Italian 1.4-inch exit compression driver that is coupled to 60º x 90º horn for high frequency reproduction.
This exceptional design provides a consistent frequency response and SPL at the optimum height, allowing the performer to move around the stage without any drop-in response or power.
Low-mid frequencies are reproduced by a high efficiency, high power handling 15-inch Italian (B&C) woofer featuring a 4-inch voice coil and weather protected cone for outdoor use.
The SM12 used Italian 1.4-inch exit compression driver that is coupled to 60º x 90º horn for high frequency reproduction.
This exceptional design provides a consistent frequency response allowing the performer to move around the stage.
Low-mid frequencies are reproduced by high power handling 12-inch Italian (B&C) woofer featuring a 3-inch voice coil and weather protected cone for outdoor use.
• Live sound, auditoriums, theatres
• Main vocal monitor
• High output monitor for drums and keyboards
• Front fill
| TYPE | Two-way compact (full-range) |
|---|---|
| FREQUENCY RANGE | 50Hz-19kHz |
| DRIVERS LF | HF | 1 x 12-inch reflex-loaded direct radiator | 1 x 1.4-inch exit HF compression driver horn loaded |
| RATED POWER | 700W AES, 2800W peak |
| SENSITIVITY | 101dB |
| MAXIMUM SPL (CALCULATED @ IM) | 126dB continuous, 130dB peak |
| NOMINAL IMPEDANCE | 8 Ohms |
| DISPERSION (-6db) | 50º horizontal x 90º vertical |
| ROTATABLE HORN | - |
| CROSSOVER | 1.2kHz passive |
| ENCLOSURE | Trapezoid, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | --- mm x --- mm x --- mm (W x H x D) |
| WEIGHT | -- kg |
