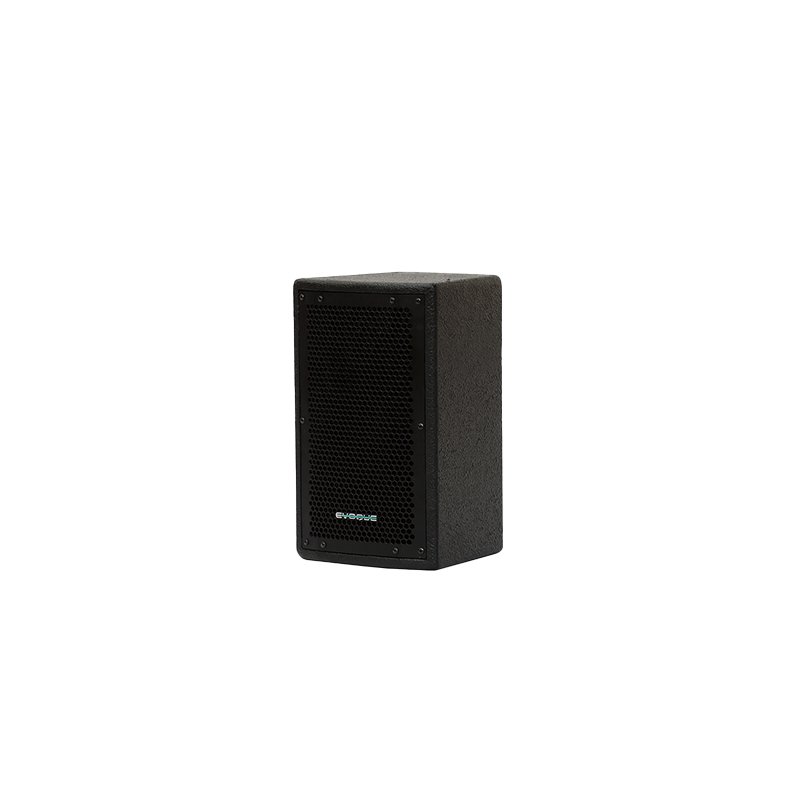

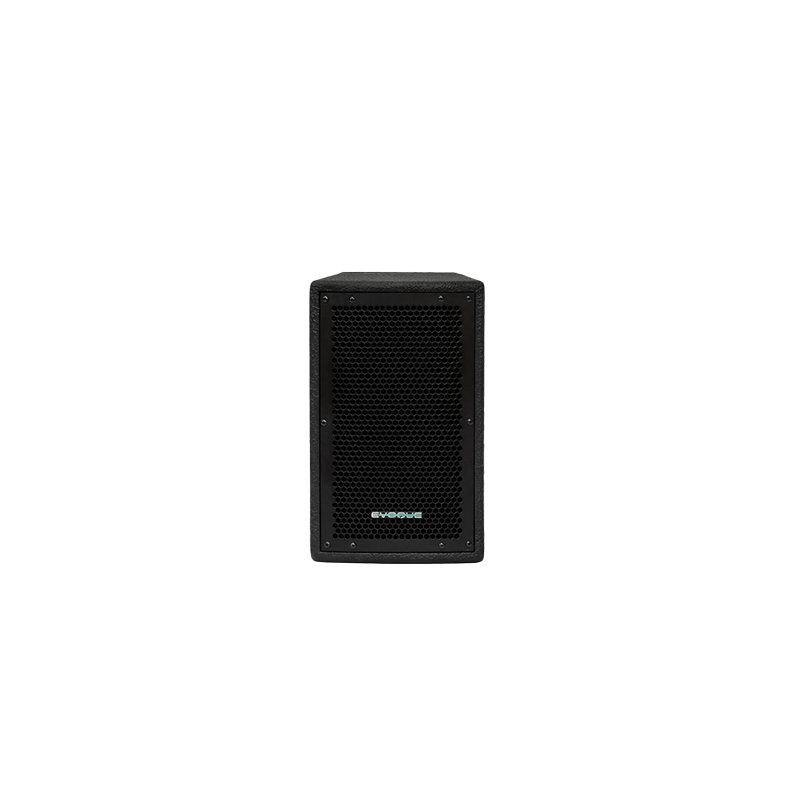

SATELLITE 8
High output compact 8-inch LF + 1-inch HF 2-way full-range loudspeaker
• Two-way high-output full-range
• 1-inch exit HF compression driver
• 8-inch LF transducer
• Advanced crossover with HF protection
• Unique elliptical horn
• 300W continuous, 1200W peak power handling
• Ultra-compact multipurpose design
• M8 threaded points for suspension (optional)
The EVOQUE SATELLITE 8 is an ultra-compact loudspeaker designed for a variety of install applications.
Employing an incredibly low-distortion Italian 8-inch woofer, the EVOQUE SATELLITE 8 will astound you with its performance.
A specially designed crossover network integrates the speaker with a 1-inch HF compression driver.
The driver is coupled to a unique elliptical horn that’s chosen for precise coverage depending on application.
Specially developed HF overload protection is provided for reliable, long term operation.
Compact cabinet design allows the system to be used for various installations where compact size is important without sacrificing on quality and power.
The SATELLITE 8 can be combined with Lloyd Lee Co. EVOQUE SUBWOOFER 15 for incredible full range sound.
The SATELLITE 8 is an ideal solution for installations like conferences halls, clubs and of individual speakers or clusters in entertainment, cultural or religious venues
• High output compact 8-inch LF + 1-inch HF
• 2-way full-range loudspeaker
• 300W continuous, 1200W peak power handling
• Live sound
• Auditoriums
• Houses of worship
• Club sound
• Various installations
| TYPE | Two-way compact (full-range) |
|---|---|
| FREQUENCY RANGE | 75Hz-18kHz |
| DRIVERS LF | HF | 1 x 8-inch reflex-loaded direct radiator | 1 x 1-inch exit HF compression driver horn loaded |
| RATED POWER | 300W AES, 1200W peak |
| SENSITIVITY | 97dB |
| MAXIMUM SPL (CALCULATED @ IM) | 114dB continuous, 120dB peak |
| NOMINAL IMPEDANCE | 8 Ohms |
| DISPERSION (-6db) | 90º horizontal x 60º vertical |
| ROTATABLE HORN | No |
| CROSSOVER | 1.7kHz passive |
| ENCLOSURE | Trapezoid, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | --- mm x --- mm x --- mm (W x H x D) |
| WEIGHT | -- Kg |
