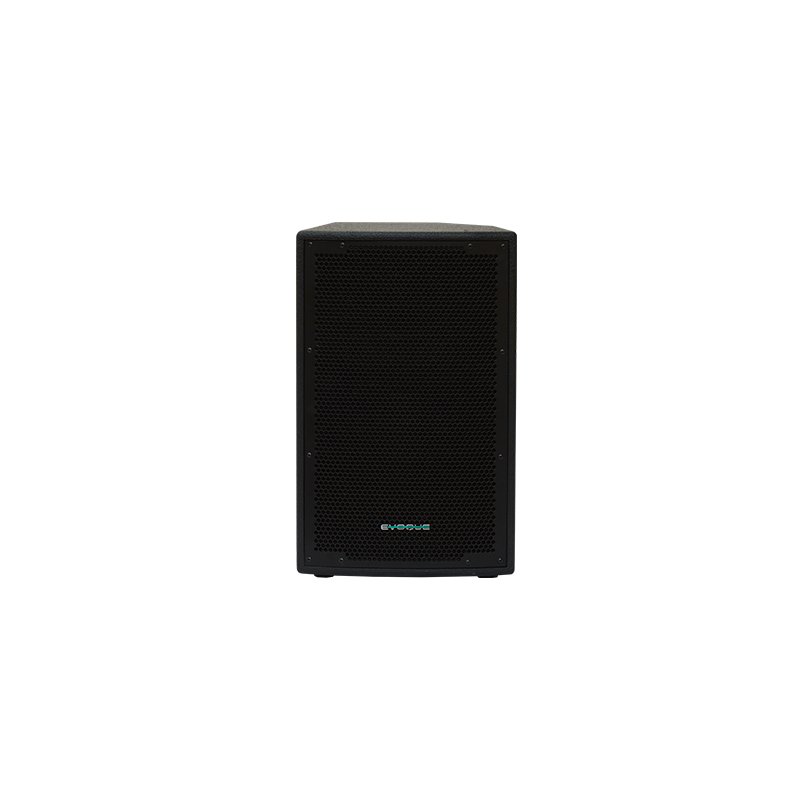

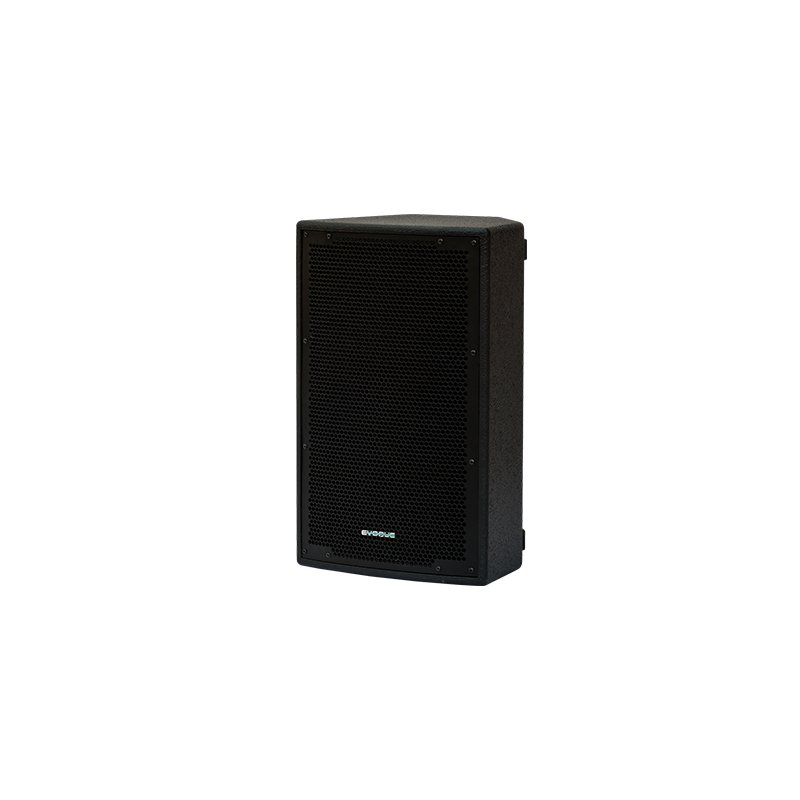

SATELLITE 15
High output compact 15-inch LF + 1-inch HF 2-way full-range loudspeaker
• Two-way high-output full-range
• Italian (B&C) 1-inch exit pure titanium HF compression driver
• Italian (B&C) 15-inch LF transducer with weather protected cone and plates for outdoor use
• Advanced crossover with HF protection
• Unique rotatable 60° x 40° constant-directivity horn
• 600W continuous, 2000W peak power handling
• Ultra-compact low profile 5-side multipurpose design with monitor slant
• Integral M8 threaded points for suspension (optional)
• Vented LF enclosure, solid bass down to 55Hz
The EVOQUE SATELLITE 15 is an ultra-compact, low-profile loudspeaker designed for a variety of install applications.
SATELLITE 15 employs a long excursion Italian (B&C) 15-inch woofer that delivers rock-solid bass response and excellent mid-range clarity with exceptional reliability.
A specially designed crossover network integrates the speaker with an Eighteen Sound 1-inch pure titanium HF compression driver.
The driver is coupled to a unique 60° x 40° constant directivity horn that is rotatable for precise and even coverage depending on application.
HF overload protection is provided for reliable, long-term operation.
The SATELLITE 15 is designed for medium-throw applications and can be combined with the EVOQUE SUB 15, SUB 18 or SUB 28 subwoofer for incredible full range sound.
The EVOQUE SATELLITE 15 is an ideal solution for events like clubs, installations of individual speakers or clusters in entertainment venues.
• Auditoriums
• Houses of worship
• Club sound
• Various installations
| TYPE | Two-way compact/monitor (full-range) |
|---|---|
| FREQUENCY RANGE | 41Hz-19kHz |
| DRIVERS LF | HF | 1 x 15-inch reflex-loaded direct radiator | 1 x 1-inch exit HF compression driver horn loaded |
| RATED POWER | 600W AES, 2000W peak |
| SENSITIVITY | 100dB |
| MAXIMUM SPL (CALCULATED @ IM) | 123dB continuous, 129dB peak |
| NOMINAL IMPEDANCE | 8 Ohms |
| DISPERSION (-6db) | 60º horizontal x 40º vertical |
| ROTATABLE HORN | Yes |
| CROSSOVER | 1.6kHz passive |
| ENCLOSURE | Trapezoid, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | 455 mm x 720 mm x 355 mm (W x H x D) |
| WEIGHT | — Kg |
