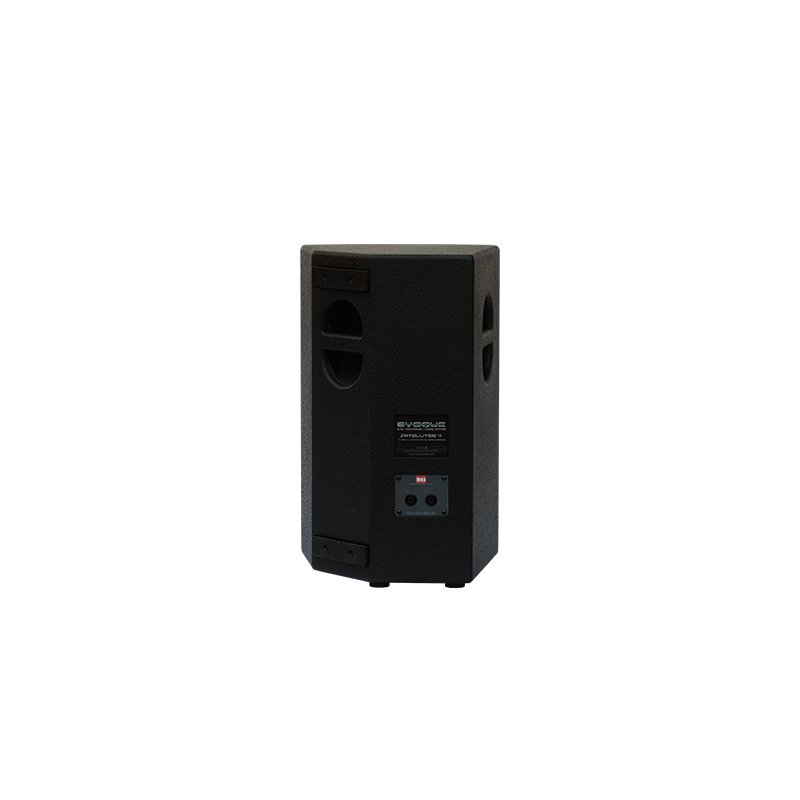

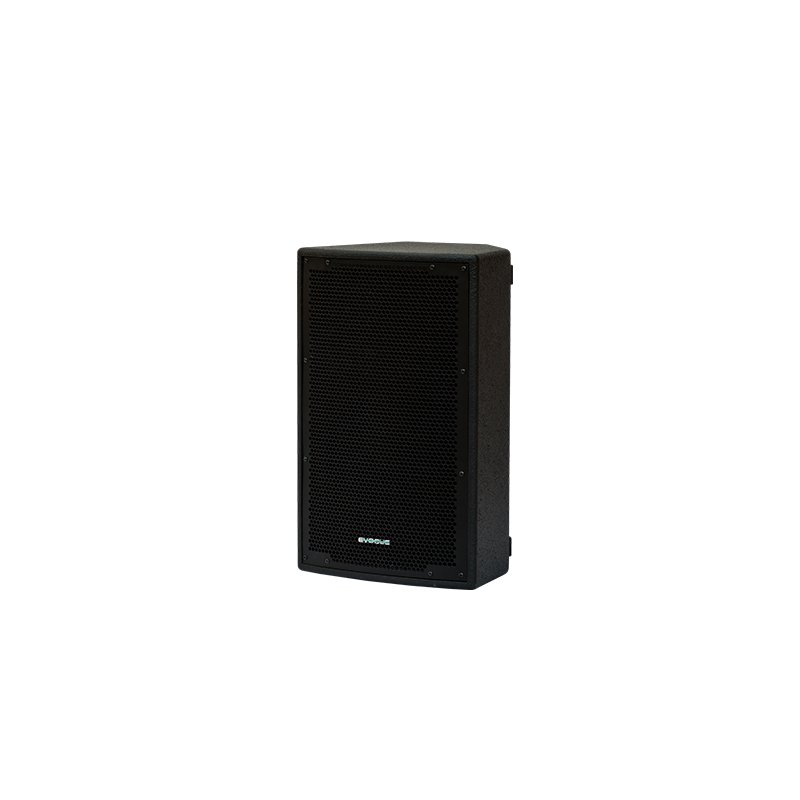

SATELLITE 12
High output compact 12-inch LF + 1-inch HF 2-way full-range loudspeaker
• Two-way high output full-range
• Italian 1-inch exit HF compression driver
• Italian 12-inch LF transducer with weather protected cone and plates for outdoor use
• Advanced crossover with HF protection
• Unique rotatable 60° x 40° constant-directivity horn
• 400W continuous, 1600W peak power handling
• Ultra-compact low profile 5-side multipurpose design with monitor slant
• Integral M8 threaded points for suspension (optional)
• Vented LF enclosure
The EVOQUE SATELLITE 12 is an ultra-compact loudspeaker designed for a variety of install applications.
Employing an incredibly low-distortion 12-inch woofer, the EVOQUE SATELLITE 12 will astound you with its performance.
A specially designed crossover network integrates the speaker with a 1-inch pure titanium HF compression driver.
The driver is coupled to a unique asymmetrical horn that is rotatable for precise coverage depending on application.
Specially developed HF overload protection is provided for reliable, long-term operation.
Compact cabinet design allows the system to be used for various installations where compact size is important without sacrificing on quality and power.
The EVOQUE SATELLITE 12 can be combined with the EVOQUE SUB 15, SUB 18 or SUB 28 subwoofer for incredible full range sound.
The EVOQUE SATELLITE 12 is an ideal solution for events like clubs, installations of individual speakers or clusters in entertainment venues.
• Auditorium
• Houses of worship
• Club sound
• Various installations
| TYPE | Two-way full range/monitor |
|---|---|
| FREQUENCY RANGE | 50Hz-18kHz |
| DRIVERS LF | HF | 1 x 12-inch reflex-loaded direct radiator | 1 x 1-inch exit HF compression driver horn loaded |
| RATED POWER | 400W AES, 1600W peak |
| SENSITIVITY | 98dB |
| MAXIMUM SPL (CALCULATED @ IM) | 119dB continuous, 125dB peak |
| NOMINAL IMPEDANCE | 8 Ohms |
| DISPERSION (-6db) | 60º horizontal x 40º vertical |
| ROTATABLE HORN | Yes |
| CROSSOVER | 1.6kHz passive |
| ENCLOSURE | Trapezoid, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | 386 mm x 637 mm x 320 mm (W x H x D) |
| WEIGHT | 19 Kg |
