Category: PRO SOUND SYSTEMS, EVOQUE

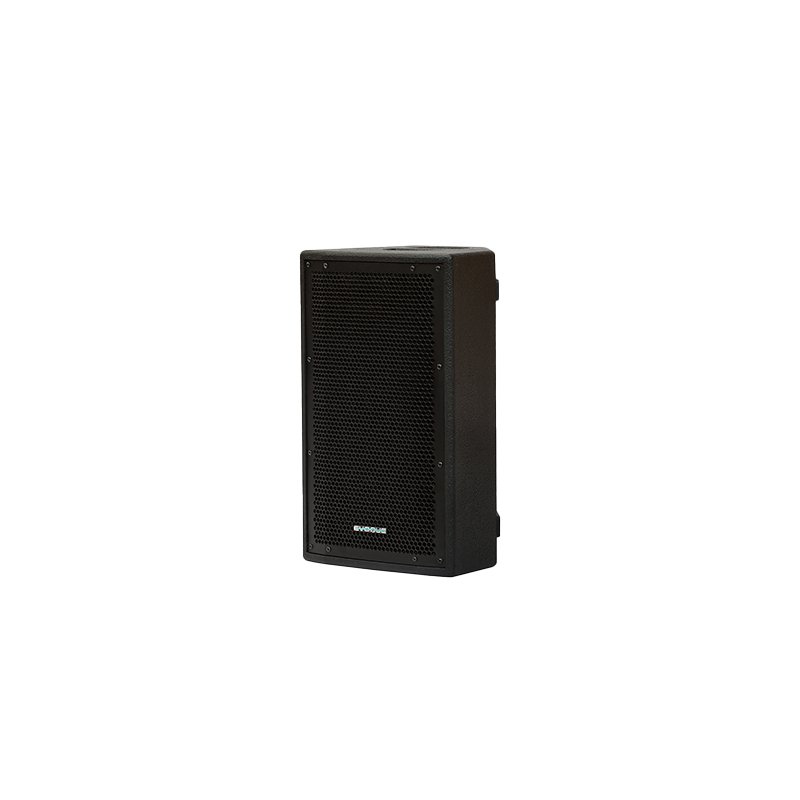

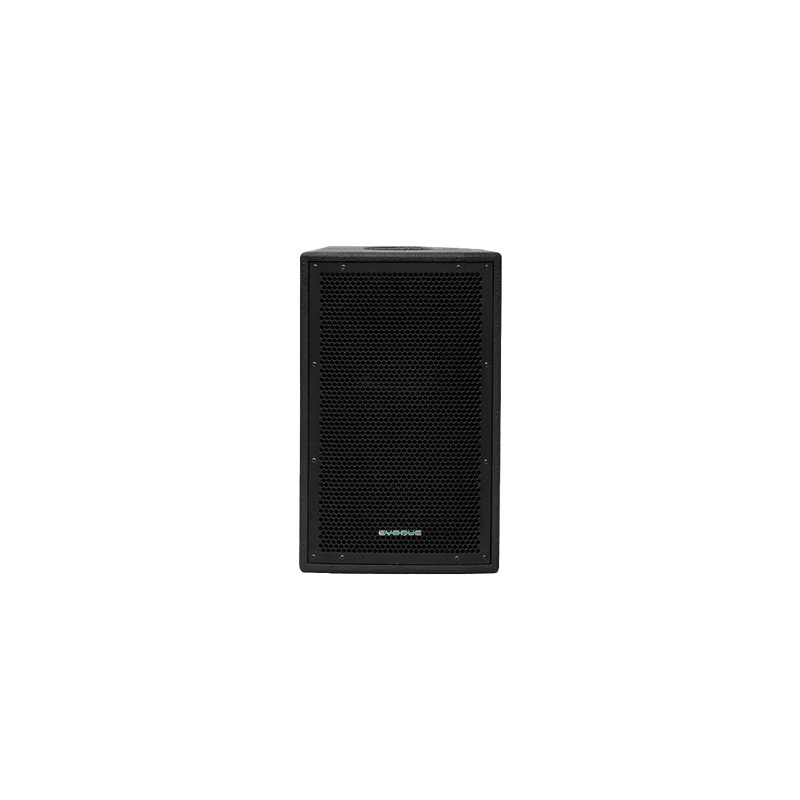

SATELLITE 10
High output compact 10-inch LF + 1-inch HF 2-way full-range loudspeaker
• Two-way high-output full-range
• 1-inch exit pure titanium HF compression driver
• Specialised B&C 10-inch LF transducer with weather protected cone and plates for outdoor use
• Advanced crossover with HF protection
• Unique asymmetrical horn
• 350W continuous, 1200W peak power handling
• Ultra-compact multipurpose design and mount for tripod use
• Integral M8 threaded points for suspension (optional)
• Vented LF enclosure
The EVOQUE SATELLITE 10 is an ultra-compact loudspeaker designed for a variety of install applications.
Employing an incredibly low-distortion 10 inch woofer, the EVOQUE SATELLITE 10 will astound you with its performance.
A specially designed crossover network integrates the speaker with a 1-inch pure titanium HF compression driver.
The driver is coupled to a unique asymmetrical horn that is rotatable for precise coverage depending on application.
Specially developed HF overload protection is provided for reliable, long term operation.
Compact cabinet design allows the system to be used for various installations where compact size is important without sacrificing on quality and power.
The EVOQUE SATELLITE 10 can be combined with the EVOQUE SUB 12, SUB 15 or SUB 18 subwoofer for incredible full range sound.
The EVOQUE SATELLITE 10 is an ideal solution for events like clubs, installations of individual speakers or clusters in entertainment venues.
• High output compact 10-inch LF + 1-inch HF
• 350W continuous, 1200W peak power handling
• Two-way high-output full-range, specialised B&C speakers
• Auditoriums
• Club sound
• Various installations
| TYPE | Two-way compact/monitor (full-range) |
|---|---|
| FREQUENCY RANGE | 60Hz-18kHz |
| DRIVERS LF | HF | 1 x 10-inch reflex-loaded direct radiator | 1 x 1-inch exit HF compression driver horn loaded |
| RATED POWER | 350W AES, 1200W peak |
| SENSITIVITY | 99dB |
| MAXIMUM SPL (CALCULATED @ IM) | 116dB continuous, 122dB peak |
| NOMINAL IMPEDANCE | 8 Ohms |
| DISPERSION (-6db) | 90º horizontal x 60º vertical |
| ROTATABLE HORN | Yes |
| CROSSOVER | 1.8kHz passive |
| ENCLOSURE | Trapezoid, BWP 6ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | --- mm x --- mm x --- mm (W x H x D) |
| WEIGHT | -- Kg |
