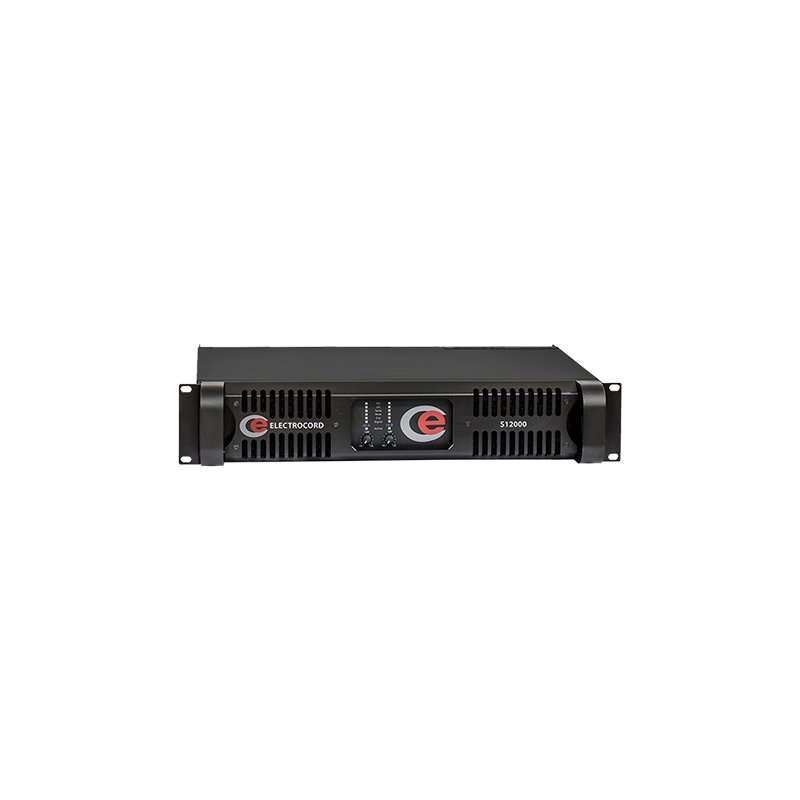

S12000

-

Features

• S12000 (Class TD) – 2 Channel, 3200W per channel@4 Ohms
• State-of-the-art voltage regulation technology for more dynamic power
• An advanced protection system, which includes power soft start, DC overload, short circuit, overheating, ultra-high frequency, clipping
• High efficiency short-range duct double copper ribbon heat sink

Enquiry Now   Download Brochure

S 12000 is a 2-channel amplifier that incorporates state-of-the-art voltage regulation technology for more dynamic power specially designed for subwoofer drive application.

The S series is equipped with an advanced protection system, which includes power soft start, DC overload, short circuit, overheating, ultra-high frequency, clipping and in particular no relay output protection that has a rapid response which no relay can match.

Excellent heat dissipation system, S series amplifiers are designed with high efficiency short-range duct double copper ribbon heat sink, to ensure excellent heat dissipation and unmatched performance as compared to aluminium heat sinks.

The input stage of all S series amplifiers have a high sensitivity to provide ample system headroom.
This in effect means that the input stage is almost impossible to clip.
Built-in adjustable Voltage Peak Limiter (VPL) sets the maximum output voltage and therefore also the maximum output power.
The sophisticated output section monitors faults and generates appropriate warnings, which are displayed on the amplifier front panel.
These alerts allow the operator to adjust system settings and thereby avoid failures.

Whether it is touring or fixed installation, S series amplifiers suit the most demanding applications due to its small size, low weight, high efficiency, high power and high reliability.

The S series are designed especially for highly demanding touring environment where live sound companies push the threshold of high-power performance vs reliability to its extreme.
All S Series amplifiers are built around the same core technologies, including Class TD output stage, SMPS regulated switch-mode power supplies, and highly efficient heat dissipation systems.
S series amplifiers have the same signal flow, and the same feature sets.

Output power 1KHz, <0.05%THD
8-Ohm power 2x1500W
4-Ohm power 2x2800W
2-Ohm power 2x---W
8-Ohm bridged power 1x---W
4-Ohm bridged power 1x---W
THD (20Hz-20kHz for 1W) <0.1%
THD (1kHz and 1dB below clipping) <0.05%
DSP processor NA
Gain (optional) 23, 26, 29, 32, 35, 38, 41, 44dB
Signal noise ratio 110dB
Frequency response (+/-0.1dB) 10Hz-34kHz
Damping coefficient >500
Impedance (balanced/unbalanced) 20KΩ/10KΩ
Output socket Speakon connectors (NEUTRIK)
Input socket Combo XLR type, 3 pin (NEUTRIK)
Link socket XLR type,3 pin male (NEUTRIK)
Protection Short circuit, open circuit, thermal, overload, DC, super audio protection
Power Requirement 200-240V~50-60Hz
Size (W x H x D) 483mm x 445mm x 88mm
Weight (net) 16.5Kg
