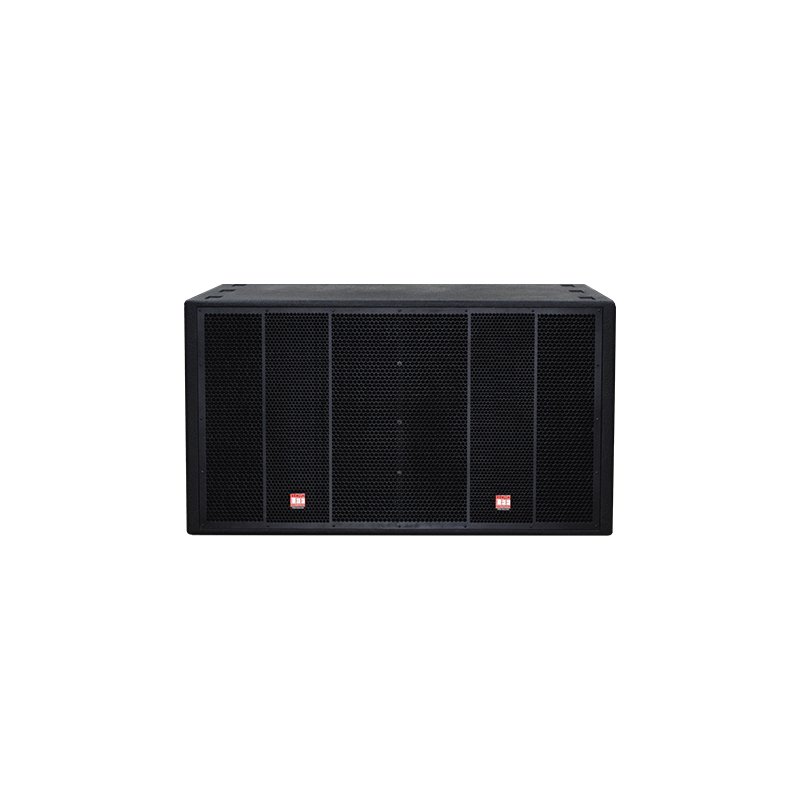

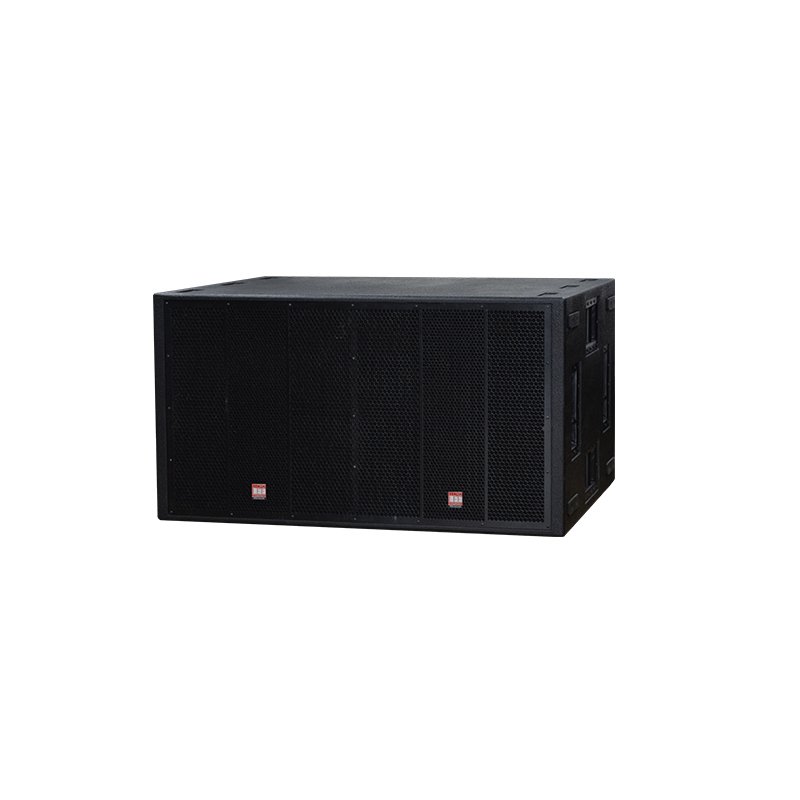

N-ONE

Very high output dual 21-inch horn loaded subwoofer system

Features

• 4000W AES, high efficiency and high output design
• Dual vented horn subwoofer system with long throw capability
• 2 x 21-inch very high excursion, high power Italian bass drivers
• Frequency range 27Hz-160Hz
• Enclosure is stackable in both horizontal and vertical orientations

Enquiry Now   Download Brochure

The N-ONE is a very high performance dual 21-inch horn loaded subwoofer that incorporates the advantages of the very successful Lloyd Lee Co. pro subwoofers
into a compact yet powerful subwoofer that delivers outstanding low frequency performance.
N-ONE design utilizes the unique double sub-horn cabinet construction with two B&C woofers to ensure chest-kicking low frequency, extremely long-term power handling and reliability in all applications.
This design behaves like a horn over much of its range, but without the time delay and weight problems usually associated with conventional designs.
Vented-box advantages take over for the lowest octave and assist in producing exceptionally high levels of clean, punchy bass from a modest-sized box.

The N-ONE subwoofer uses a new, longer, four-layer aluminium voice coil woofer; the result is more force, higher sensitivity, lower distortion and better overall performance.
The reverse woofer orientation has been used to optimize the rear chamber volume and decrease the horn flare rate for extended low-end performance.
When configured with the EDGE-X XLA7, XLA9 or mid-high speaker systems, the N-ONE provides high output full range sound reinforcement for large halls and outdoor events.

The N-ONE rectangular cabinet can be easily ground stacked in multiples to increase low frequency directivity and level.
When two speaker systems are placed side by side, the woofer cones mutually couple, causing the two systems to act as one system with twice the effective cone area at very low frequencies, giving an additional 3dB increase in maximum acoustic output.

• Very high output dual 21-inch subwoofer system
• 4000W AES, 16000W peak power handling
• High efficiency, very high-power design

• High power and extreme low frequency reproduction is required
• Live sound (medium-large scale)

TYPE  Horn loaded subwoofer
FREQUENCY RANGE  27Hz-160Hz
LF SECTION  2 x 21-inch reflex horn loaded
RATED POWER  LF: 4000W AES, 16000W peak
SENSITIVITY  LF: 104dB
MAXIMUM SPL (CALCULATED @ IM) 142dB continuous,148dB peak
NOMINAL IMPEDANCE  LF: 4 ohms
DISPERSION (-6db) -
ROTATABLE HORN -
CROSSOVER -
ENCLOSURE  Rectangular, BWP ply construction
FINISH  Lloyd Lee Co. textured paint
PROTECTIVE GRILLE  Perforated steel powder coated,16G.

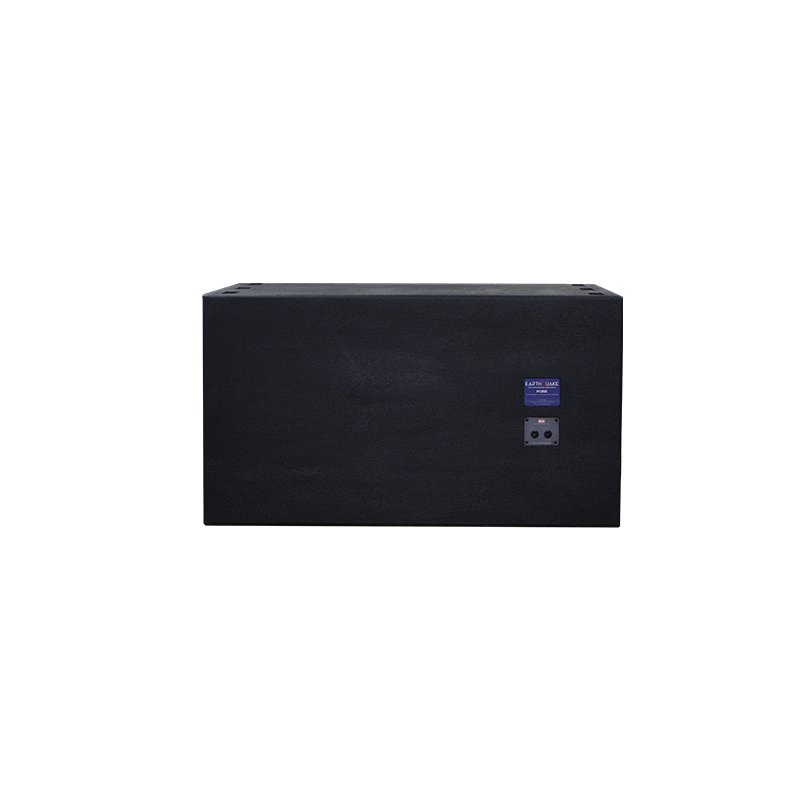

CONNECTORS  2 x Neutrik NL4
DIMENSIONS  (W) – mm x (H- mm  x (D) – mm
WEIGHT  — kgs
