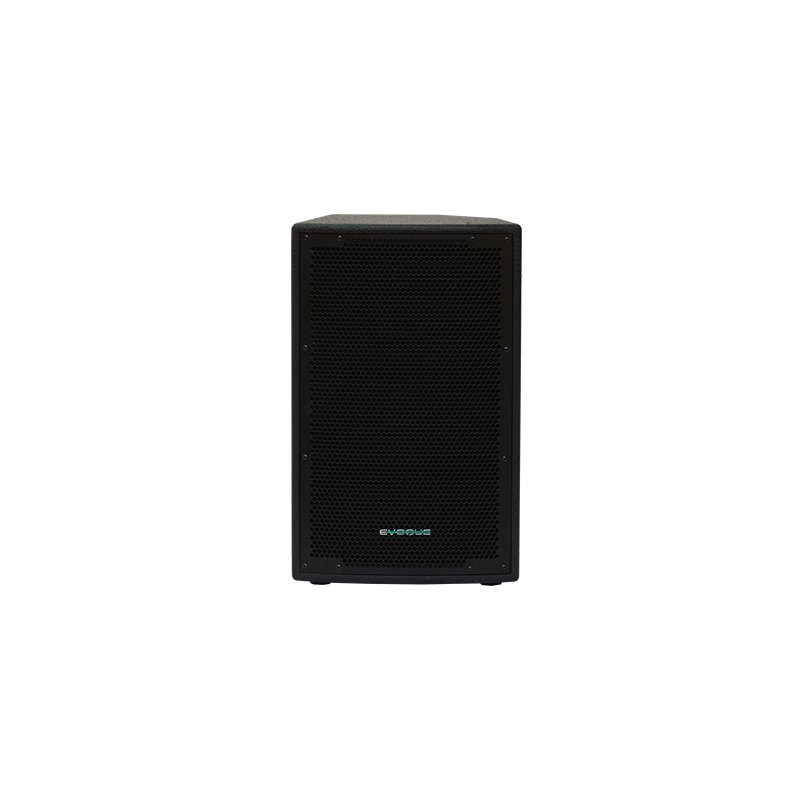

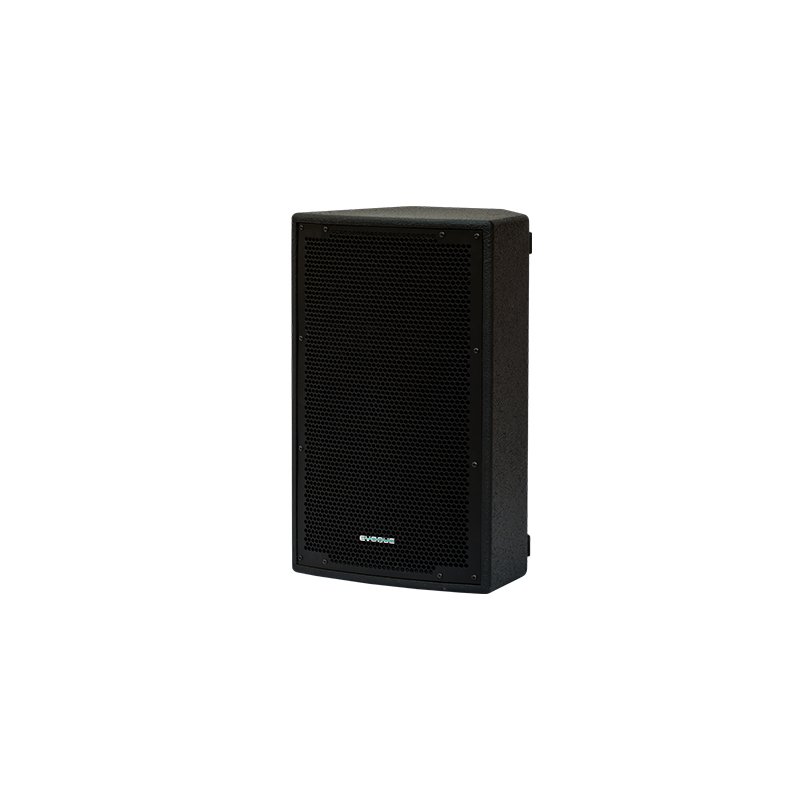

MODULE 15
Very high output compact 15-inch LF + 1.4-inch HF 2-way full-range loudspeaker
• Compact multipurpose design
• Two-way very high-output full range
• 900W continuous, 3000W peak power handling
• 1.4-inch exit compression driver for high power and precise vocal reproduction
• 15-inch long excursion high power B&C woofer with weather protected cone and plates for outdoor use
• Advanced crossover with HF protection
• 70° x 50° constant-directivity horn
• Integral M8 threaded points for suspension (optional)
• Vented LF enclosure, solid bass down to 55Hz
• Mount for tripod use
"The EVOQUE MODULE 15 is a 15-inch two-way full-range loudspeaker with 900 Watts continuous power handling loudspeaker designed for high level dance clubs. The EVOQUE MODULE 15 employs a very high excursion Italian 15-inch woofer into an enclosure with specially designed ports that enables awesome bass response down to 50Hz. The EVOQUE MODULE 15 is equipped with a high power and high efficiency large format 1.4-inch exit driver for extra head room and long-term reliability. The driver is coupled to 70° x 50° constant directivity horn for smooth and even coverage. HF overload protection is provided for reliable, long-term operation. The 60° coverage angle of the EVOQUE MODULE 15 is wide enough to provide coverage of an audience when used one-per side yet narrow enough to allow splaying of multiple enclosures without excessive coverage overlap.
The EVOQUE MODULE 15 fits well in applications that require extra low-frequency extension and very high SPL as compared to standard 12-inch speakers. The MODULE 15 is an ideal solution for events like club sound, installations of individual speakers or clusters in entertainment, venues."
• Club sound
• Various installations
• Auditoriums, theatres
• Various other installations
| TYPE | Two-way compact (full-range) |
|---|---|
| FREQUENCY RANGE | 39Hz-19kHz |
| DRIVERS LF | HF | 1 x 15-inch reflex-loaded direct radiator | 1 x 1.4-inch exit HF compression driver horn loaded |
| RATED POWER | 900W AES, 3000W peak |
| SENSITIVITY | 98dB |
| MAXIMUM SPL (CALCULATED @ IM) | 127dB continuous, 133dB peak |
| NOMINAL IMPEDANCE | 8 Ohms |
| DISPERSION (-6db) | 75º horizontal x 50º vertical |
| ROTATABLE HORN | No |
| CROSSOVER | 1.5kHz passive |
| ENCLOSURE | Trapezoid, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | 460 mm x 785 mm x 405 mm (W x H x D) |
| WEIGHT | — Kg |
