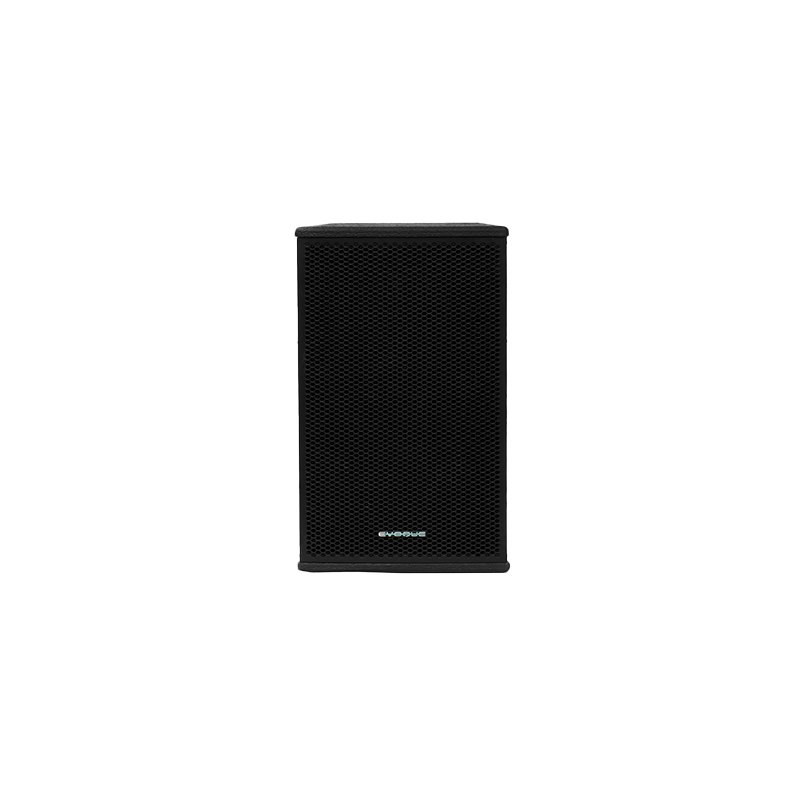

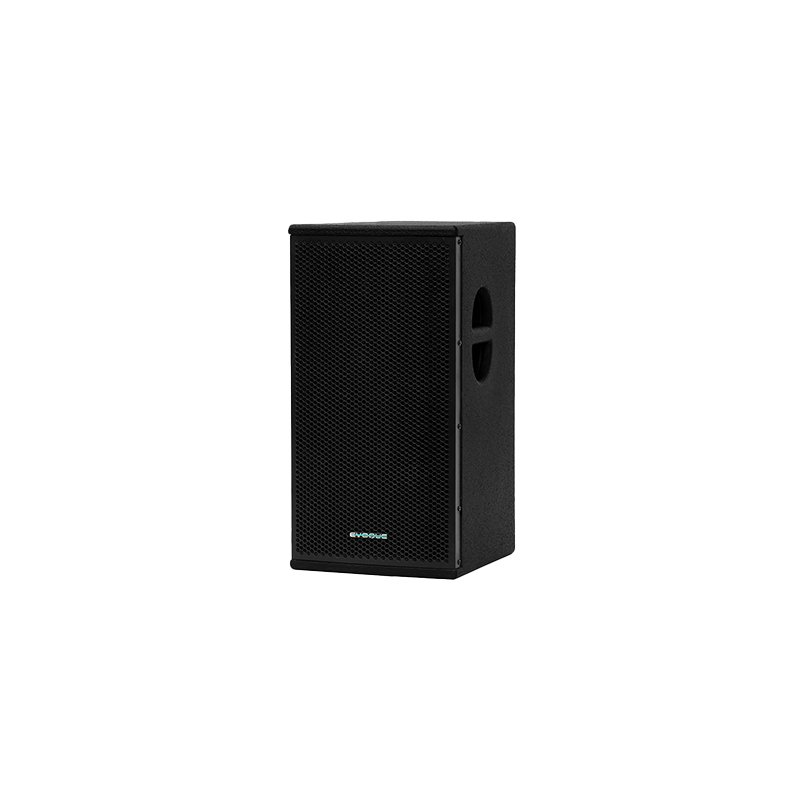

MODULE 12
Very high output compact 12-inch LF + 1.4-inch HF 2-way full-range loudspeaker
• Compact multipurpose design
• Two-way very high-output full range
• 700W continuous, 2800W peak power handling
• 1.4-inch exit compression driver for high power and precise vocal reproduction
• 12-inch long excursion high power B&C woofer with weather protected cone and plates for outdoor use
• Advanced crossover with HF protection
• Unique elliptical 70° x 50° constant-directivity horn
• Integral M8 threaded points for suspension (optional)
• Vented LF enclosure, solid bass down to 55Hz
• Mount for tripod use
"The EVOQUE MODULE 12 is a 12-inch two-way full-range loudspeaker with 700 Watts continuous power handling loudspeaker designed for high level dance clubs. The EVOQUE MODULE 12 employs a very high excursion Italian 12-inch woofer into an enclosure with specially designed ports that enables awesome bass response down to 55Hz. The EVOQUE MODULE 12 is equipped with a high power and high efficiency 1.4-inch exit driver for extra head room and long-term reliability. The driver is coupled to 70° x 50° constant directivity horn for smooth and even coverage. HF overload protection is provided for reliable, long term operation. The 60° coverage angle of the EVOQUE MODULE 12 is wide enough to provide coverage of an audience when used one-per side yet narrow enough to allow splaying of multiple enclosures without excessive coverage overlap.
The EVOQUE MODULE 12 fits well in applications that require extra low-frequency extension and very high SPL as compared to standard 12-inch speakers. The MODULE 12 is an ideal solution for events like conferences, club sound, installations of individual speakers or clusters in entertainment, venues."
• Very high output compact 12-inch LF + 1.4-inch HF
• 700W continuous, 2800W peak power handling
• Two-way very high-output full range
• Club sound
• Various installations
• Auditoriums, theatres
• Front fill and stage fill
| TYPE | Two-way compact (full-range) |
|---|---|
| FREQUENCY RANGE | 55Hz-19kHz |
| DRIVERS LF | HF | 1 x 12-inch reflex-loaded direct radiator | 1 x 1.4-inch exit HF compression driver horn loaded |
| RATED POWER | 700W AES, 2800W peak |
| SENSITIVITY | 100dB |
| MAXIMUM SPL (CALCULATED @ IM) | 126dB continuous, 132dB peak |
| NOMINAL IMPEDANCE | 8 Ohms |
| DISPERSION (-6db) | 70º horizontal x 50º vertical |
| ROTATABLE HORN | Yes |
| CROSSOVER | 1.4kHz passive |
| ENCLOSURE | Trapezoid, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | --- mm x --- mm x --- mm (W x H x D) |
| WEIGHT | --- Kg |
