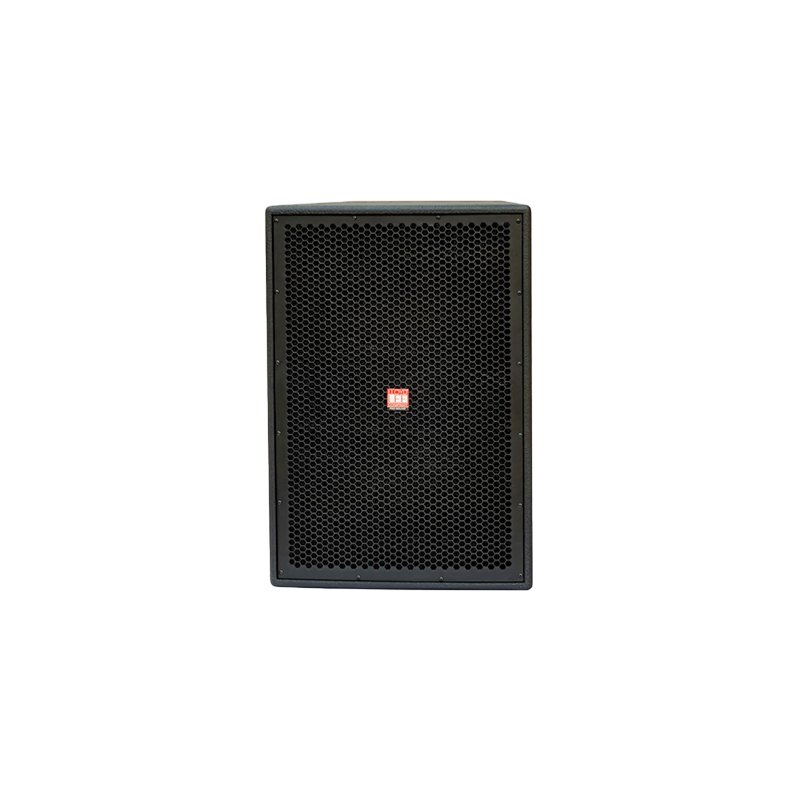

MH7 PRO
Very high output 12-inch MF + 1.4-inch HF, horn loaded mid-high speaker system
• Very long throw and high power capability
• 8 ohms mid and high frequency transducers
• 1 x 12-inch high performance mid-section
• 1 x 1.4-inch exit high efficiency compression driver selected for extended and precise high frequency performance
• Long throw capability
• 60°H x 30°V coverage pattern.
The MH7 pro is a horn loaded bi-amplified mid-high loudspeaker system like the successful MH1 speaker. The MH7 pro has an extended frequency response (down to 100Hz) unlike other standard 250Hz responses of commonly used mid speakers.
The MH7 pro possesses the similar throw and coverage like the MH5, along with further improvement in the mid-high frequencies for better vocal reproduction and extended frequency range.
It can be used directly with a sub-woofer, without the need for an additional low-mid speaker.
Driver technology has been optimized for lighter weight and maximum acoustic output in a compact enclosure. An Italian high efficiency custom built 8 ohms 12-inch mid-bass transducer is used, for a 2dB average increase in output as compared to the MH1. The 12-inch mid-bass transducer is coupled to a high performance reflex mid-bass horn which extends the usable frequency down to 100 Hz.
The high frequency section employs a high efficiency 8 ohms 1.4-inch exit large format compression driver using a 3-inch Titanium diaphragm, for excellent frequency response and power handling.
The 1.4-inch exit high efficiency compression driver is coupled to a horn with a constant coverage pattern to ensure smooth and even arraying in all situations.
• Very high output 12-inch MF + 1.4-inch HF
• Horn loaded mid-high speaker system
• Specialized Italian (B&C) mid and high frequency transducers
• Live sound (small to large scale sound reinforcement)
• Auditorium
• Houses of worship
• Club sound
• Concert halls
• Stadiums
| TYPE | Two-way mid-high horn loaded |
|---|---|
| FREQUENCY RANGE | 100Hz-19KHz + 10dB |
| LMF SECTION | 1 x 12-inch reflex horn loaded |
| HF SECTION | 1 x 1.4-inch exit HF compression driver, horn loaded |
| RATED POWER | LMF: 500W AES, 2000W peak | HF: 120W AES, 400W peak |
| SENSITIVITY | LMF: 103dB | HF: 110dB |
| MAXIMUM SPL (CALCULATED @ IM) | LMF: 125dB continuous, 131 dB peak | HF: 129dB continuous, 135dB peak |
| NOMINAL IMPEDANCE | LMF: 8 ohms | HF: 8 ohms |
| DISPERSION (-6db) | 60 deg. horizontal x 40 deg. vertical |
| CROSSOVER | 1.9 KHz active |
| ENCLOSURE | Trapezoid, BWP ply construction |
| FINISH | Lloyd Lee Co. textured paint |
| PROTECTIVE GRILLE | Perforated steel power coated, 16G. |

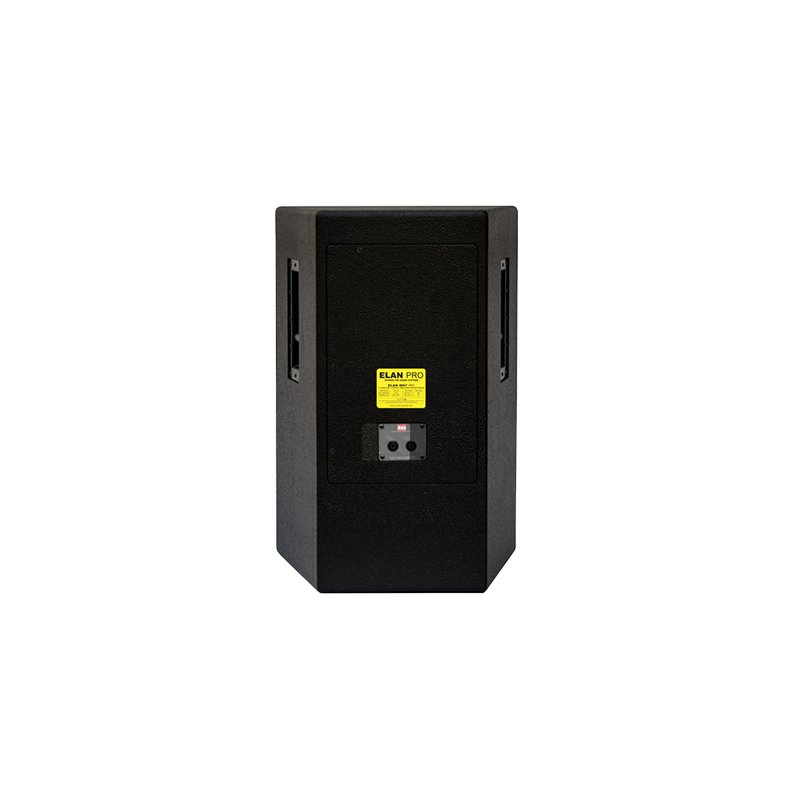

| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | - |
| WEIGHT | -- kgs |
