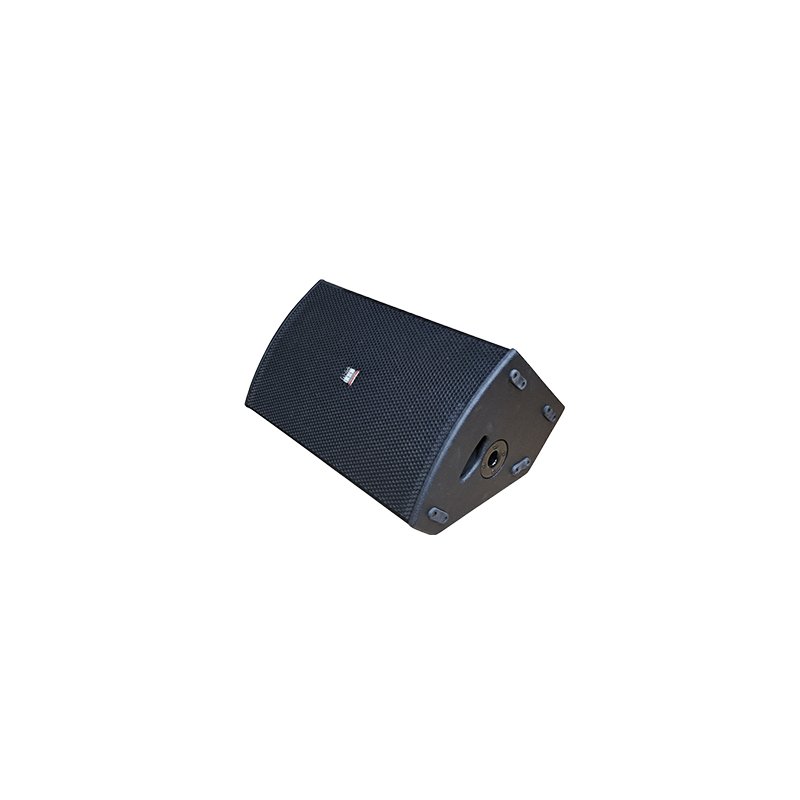

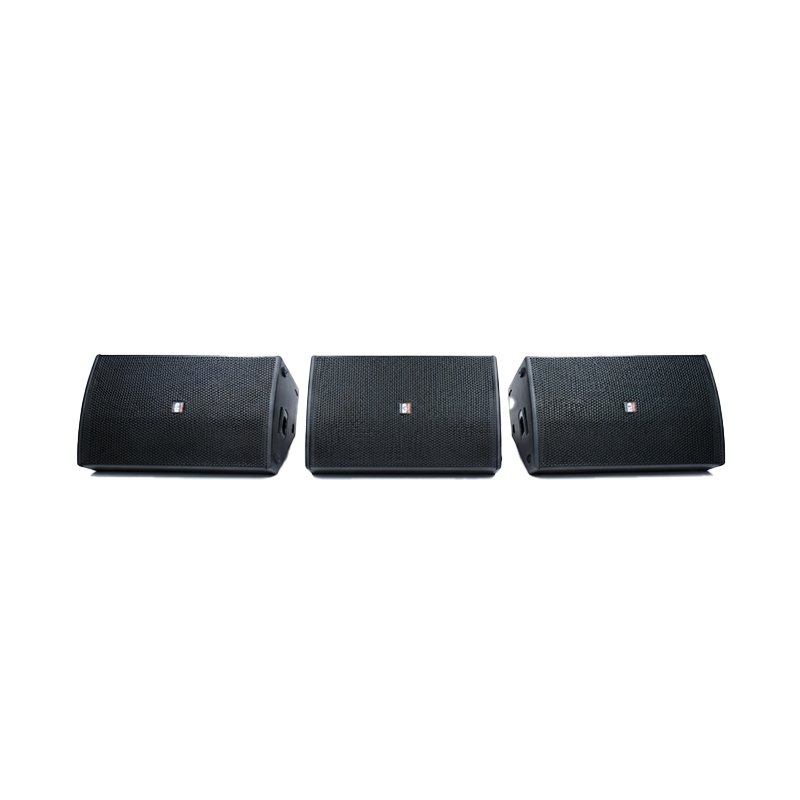

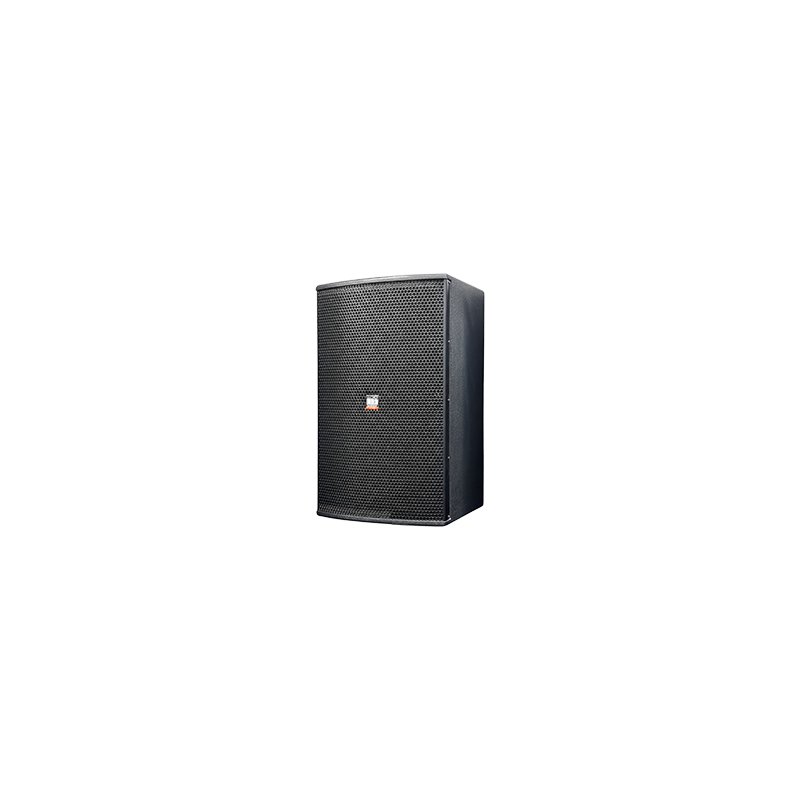

M15A
Powered 2000W, 15-inch LF + 1.4-inch HF 2 way full-range loudspeaker
• 2000W powered two-way multipurpose speaker system with universal mains
• European state-of-the-art 2 Ch class D module rated at 1000W LF + 1000W HF
• World class DSP engine that ensures excellent sound quality and reliability
• European 100W 1.4-inch exit pure titanium large format HF compression driver
• European 1000W 15-inch LF transducer for outstanding mid and bass clarity
• Unique constant-directivity horn
• Ultra-compact low profile 5-side multipurpose design with monitor slant
• Integral M8 threaded points for suspension (optional)
• Vented LF enclosure, bass down to 50Hz
• Push-to-select functionality with a total of 8 pre-optimised settings
• Compatible with Electron series and a wide range of Lloyd Lee and Outplay products
The ELECTRON M15A compact powered loudspeaker system joins the Lloyd lee Co. family of professional sound touring products.
The M15A is an ultra-compact, low-profile loudspeaker designed for main PA system and high power stage monitor applications.
M15A employs a world class European 15-inch woofer that delivers excellent bass and midrange clarity even when driving hard.
For the HF reproduction a large format 1.4-inch exit titanium HF compression driver is used to ensure crisp vocal reproduction and reliability in the most demanding stage monitor or PA applications.
The M15A is powered by the Lloyd Lee Co. PM2000 power module that delivers an outstanding high-power output of 2x1000W @ 4Ω.
The PM2000 module sets a new benchmark in audio performance, efficiency and power density.
Signal processing is accomplished by way of a powerful 24 bit DSP providing unparalleled control over critical signal parameters.
The PM2000 boasts many class leading features such as-
1)Full protection circuitry including Over-Current, Over/Under-Voltage, Output DC and Over-Temperature
2)Switched-mode power supply with PFC and auto voltage sensing Class D amp module- full bandwidth
3) Built-in FIR filter, parametric eqs. crossover and phase filters and accurate limiters guarantee excellent sonic performance and system reliability.
4) The PM2000 24 bit high end converters coupled with 96kHz sample rate ensures an excellent dynamic range and exceptionally low distortion.
The M15A is designed for medium-throw applications, monitors or drum fills and can be combined with the SB18A powered subwoofer for breath-taking full-range sound.
The M15A is an ideal solution for events like conferences, parties, club sound, installations of individual speakers or clusters in entertainment, cultural or religious venues, as well as on stage with bands as stage monitors.
• Live sound
• Auditorium
• Houses of worship
• Club sound
• Various installations
| TYPE | Powered two-way compact/monitor (full-range) |
|---|---|
| FREQUENCY RANGE | 41Hz-19kHz |
| DRIVERS LF | HF | 1x15-inch reflex-loaded direct radiator | 1x1.4-inch exit HF compression driver horn loaded |
| NOMINAL HF AMPLIFIER POWER | 1000W @ 4ohms / 500W @ 8ohms |
| NOMINAL LF AMPLIFIER POWER | 1000W @ 4ohms |
| MAXIMUM SPL (CALCULATED @ IM) | 127dB continuous, 133dB peak |
| NOMINAL IMPEDANCE | - |
| DISPERSION (-6db) | 50º horizontal x 90º vertical |
| ROTATABLE HORN | No |
| CROSSOVER | - |
| ENCLOSURE | Monitor slant, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | Maximum input level +18dBu, Input impedance 20KΩ | Input: Female XLR | Loop Thru: Male XLR | AC Input: PowerCON | AC Output: PowerCON |
| DIMENSIONS | — mm x — mm x — mm ( W x H x D) |
| WEIGHT | — kg |
| AC REQUIREMENTS | 240V, 50Hz |
| SIGNAL INPUT | 240V, 50Hz |
