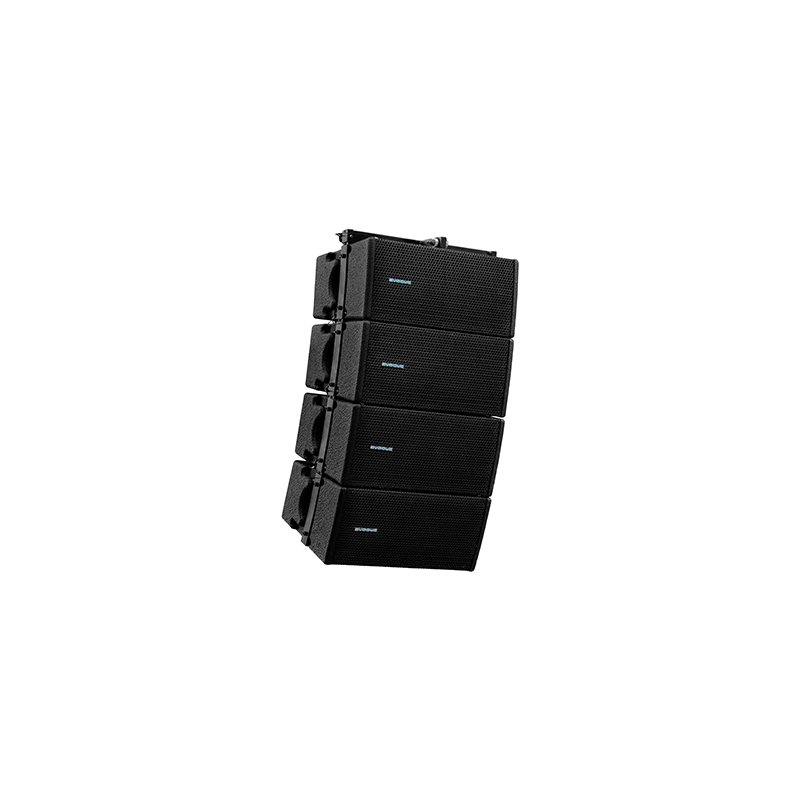

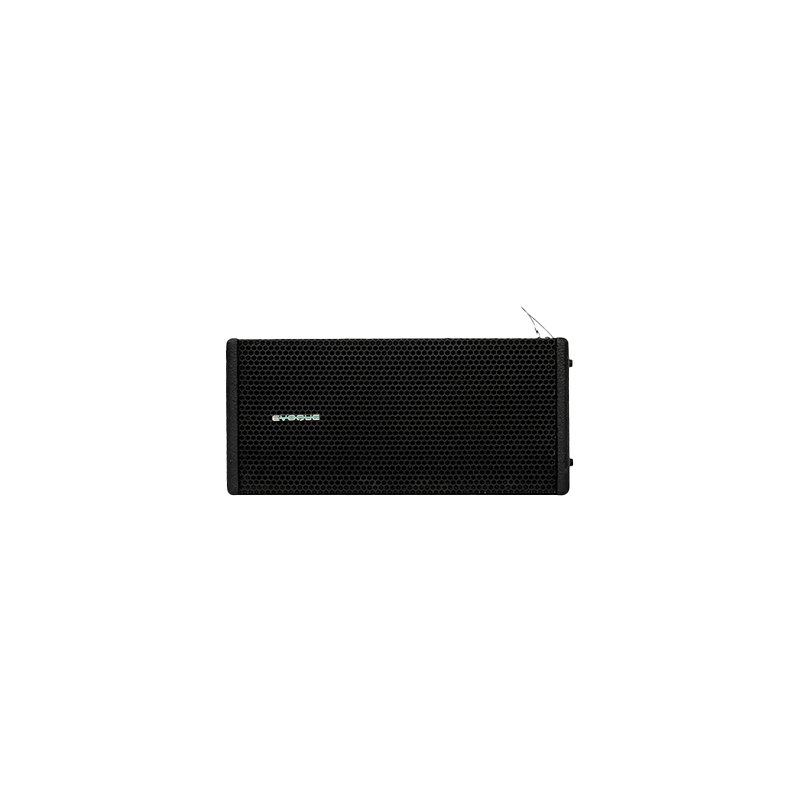

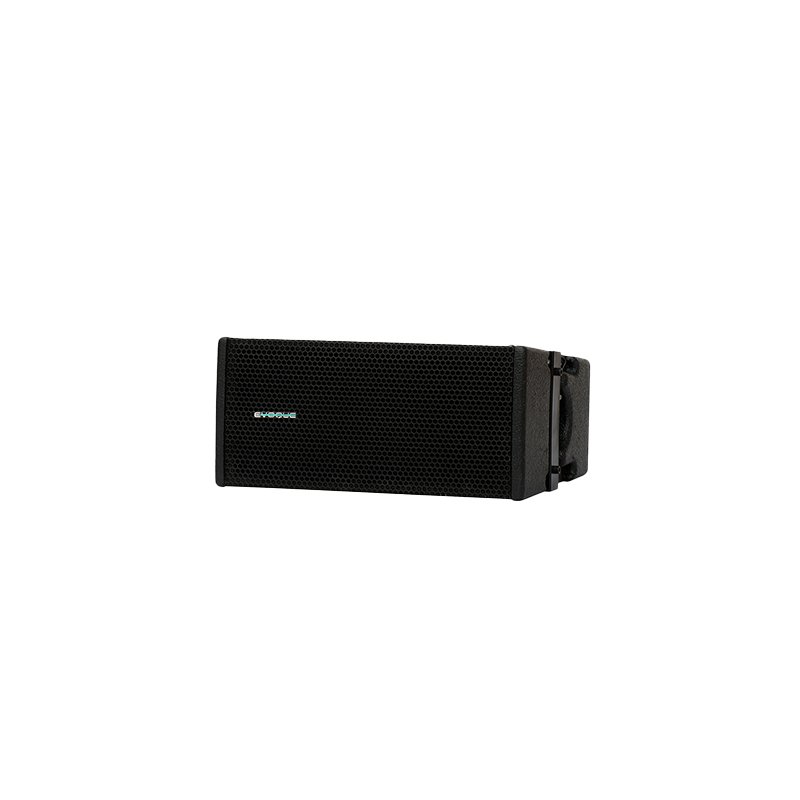

LINE 8F
High output 8-inch LF + 1.4 HF-inch 2-way line array speaker system
• Very high output coupled with clean and precise sound reproduction
• Passive operation
• Italian drivers for superior performance and durability
• 1 x 8-inch 300W high performance mid bass
• 1 x 1.4-inch compression driver, horn-loaded for power and performance
• Wide coverage 100° horizontal nominal
• Fast, Integral, high-strength rigging system
• Common grid may be used for flying or ground stacking
• Company pre-sets for a variety of applications
The EVOQUE LINE 8F is the compact line array loudspeaker module designed for the far field throw applications in clubs. EVOQUE LINE 8F is an externally powered
2-way passive speaker which integrates mid and high frequency transducers in a single unit, it utilizes custom built Italian drivers that provide optimum superior sound quality and years of unparallel performance.
A specialised 8-inch woofer has been employed for the EVOQUE LINE 8F to ensure smooth mid frequency
performance and superb low frequency reproduction. For high frequencies a 1.4-inch exit compression driver is mounted onto a high frequency plane wave converter.
The resultant planer wave is then coupled to a high frequency horn that ensures, wide dispersion, precise high frequency coverage and even array performance in all situations.
• High output 10-inch LF + 1.4 HF-inch
• Very high output coupled with clean and precise sound reproduction
• Italian drivers for superior performance and durability
• Ideal for a wide range install applications
• Small to medium scale sound reinforcement
• Club sound
| TYPE | Two-way, compact line array module |
|---|---|
| FREQUENCY RANGE | 60Hz-18kHz |
| DRIVERS LF | HF | 1 x 8-inch woofer, reflex loaded | 1 x 1.4-inch exit HF compression drivers, horn loaded |
| RATED POWER | Passive: 300W AES, 1200W peak | LMF: 300W AES, 1200W peak | HF: 80W AES, 320W peak |
| SENSITIVITY | 98dB |
| MAXIMUM SPL (CALCULATED @ IM) | 118dB continuous, 124dB peak |
| NOMINAL IMPEDANCE | 8 Ohms |
| DISPERSION (-6db) | 100º horizontal x 15º vertical |
| ROTATABLE HORN | - |
| CROSSOVER | 1.2kHz passive |
| ENCLOSURE | Vertical trapezoid, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | 532 mm x 290-205 mm x 350 mm (W x H x D) |
| WEIGHT | 22.5 kg |
