LINE 12 PRO
High output 1 x 12-inch LF + 3 x 1-inch HF 2-way line array speaker system
• High performance two-way full-range constant curvature line array system
• Very high output coupled with clean and precise sound reproduction
• Passive operation
• Italian (B&C) drivers for superior performance and durability
• 12-inch 700W high performance woofer in bass reflex design
• 3 x 1-inch compression driver, horn-loaded for power and performance
• Wide bandwidth and extended bass response
• Wide coverage 110° horizontal
• Common grid may be used for flying or ground stacking
• Fast, integral, high-strength rigging system
• Company pre-sets for a variety of applications
The EVOQUE LINE 12 PRO is a compact line array loudspeaker module with an externally powered 2-way passive speaker which integrates mid and high frequency transducers in a single unit.
LINE 12 PRO utilizes world class Italian (B&C) drivers that provide optimum performance and features, innovative line array technology within a compact, user-friendly package.
Mid-bass frequency reproduction is handled by single 12-inch 700W woofer in bass reflex configuration.
This high power and high excursion 12-inch woofer has been specially built for the LINE 12 PRO to ensure punchy low-frequency and superb mid frequency performance.
For high frequencies 3 x 1-inch exit compression driver are mounted on to three individual high frequency plane wave converters.
The resultant planer wave is then coupled to a proprietary high frequency horn to ensure wide dispersion, precise high frequency coverage and even arraying in all situations.
The LINE 12 PRO incorporates proprietary rigging systems on their sides for safe, easy and quick flying or stacking. Simple connection of enclosures and optional array frame angle allow arrays of up to maximum of six enclosures to be flown.
The LINE 12 PRO trapezoidal shape and side located splay angle adjusters maintain the front spacing the same, providing the array with a continuous front baffle, for improved array performance.
Despite the compact size, LINE 12 PRO arrays deliver both, exceptionally high output capability and predictable pattern control.
The LINE 12 PRO meets the need for a powerful yet compact system for clubs and many other install applications.
• Ideal for a wide range of installed applications
• Small to medium scale sound reinforcement
• Concert halls, stadiums, auditoriums, club sound
| TYPE | Two-way, compact constant curvature line array |
|---|---|
| FREQUENCY RANGE | 50Hz-19kHz |
| DRIVERS LF | HF | 1 x 12-inch woofer, reflex loaded | 3 x 1-inch exit HF compression driver, horn loaded |
| RATED POWER | Passive: 800W AES, 3200W peak | LMF: 700W AES, 2800W peak | HF: 105W AES, 480W peak |
| SENSITIVITY | 101dB |
| MAXIMUM SPL (CALCULATED @ IM) | 128dB continuous, 134dB peak |
| NOMINAL IMPEDANCE | 8 Ohms |
| DISPERSION (-6db) | 110º horizontal x 12º vertical |
| ROTATABLE HORN | - |
| CROSSOVER | 1.2kHz passive |
| ENCLOSURE | Vertical trapezoid, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |

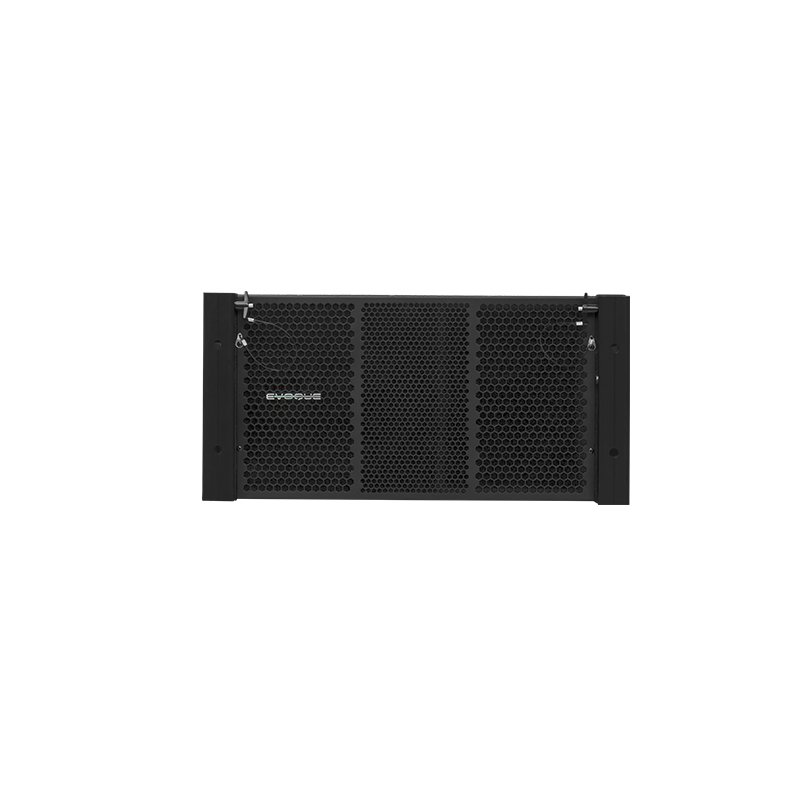

| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |

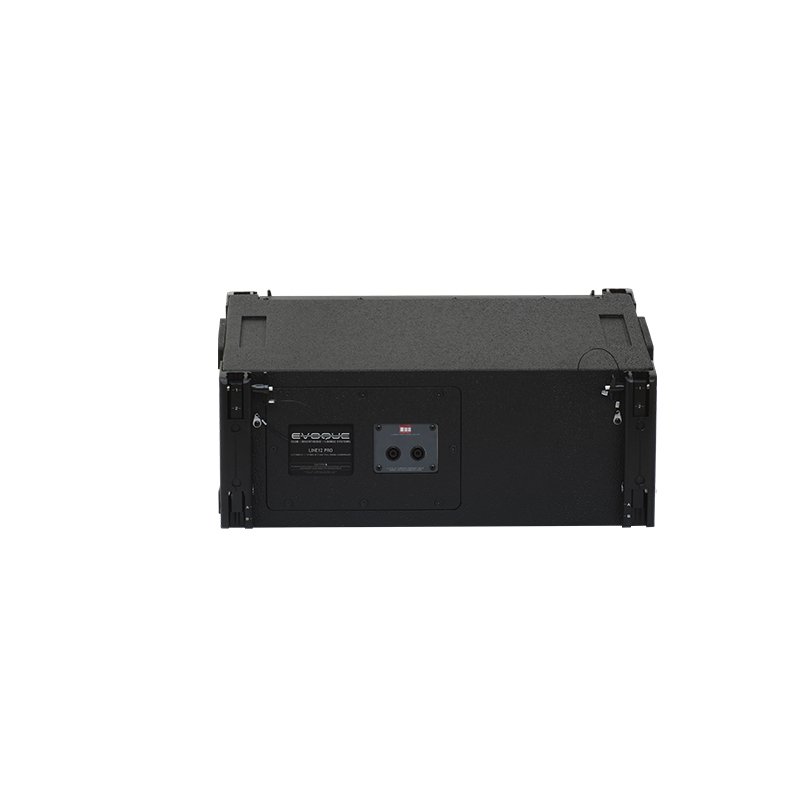

| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | — mm x — mm x — mm (W x H x D) |
| WEIGHT | — kg |
