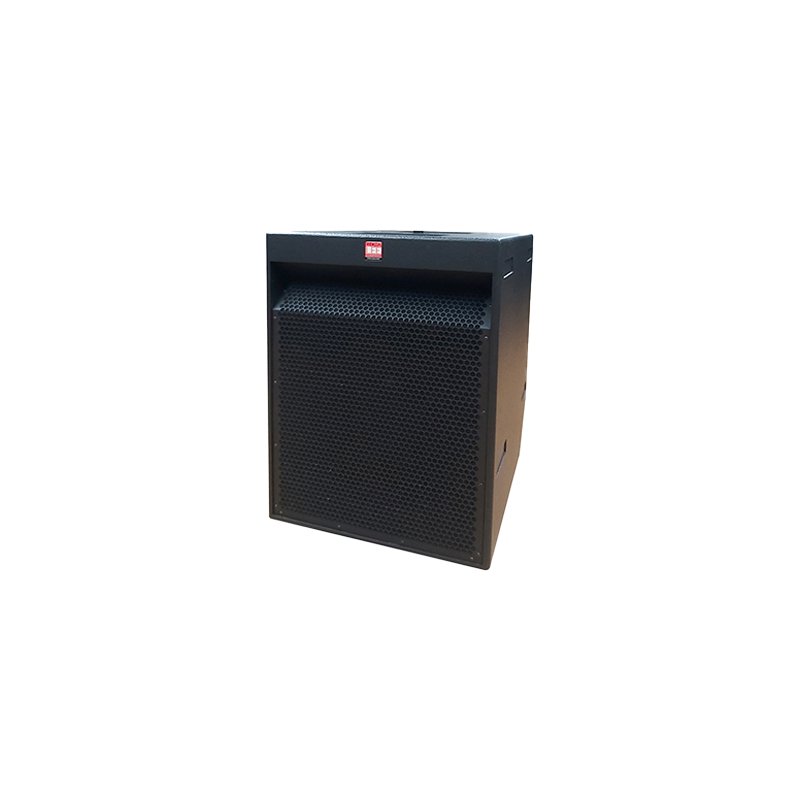

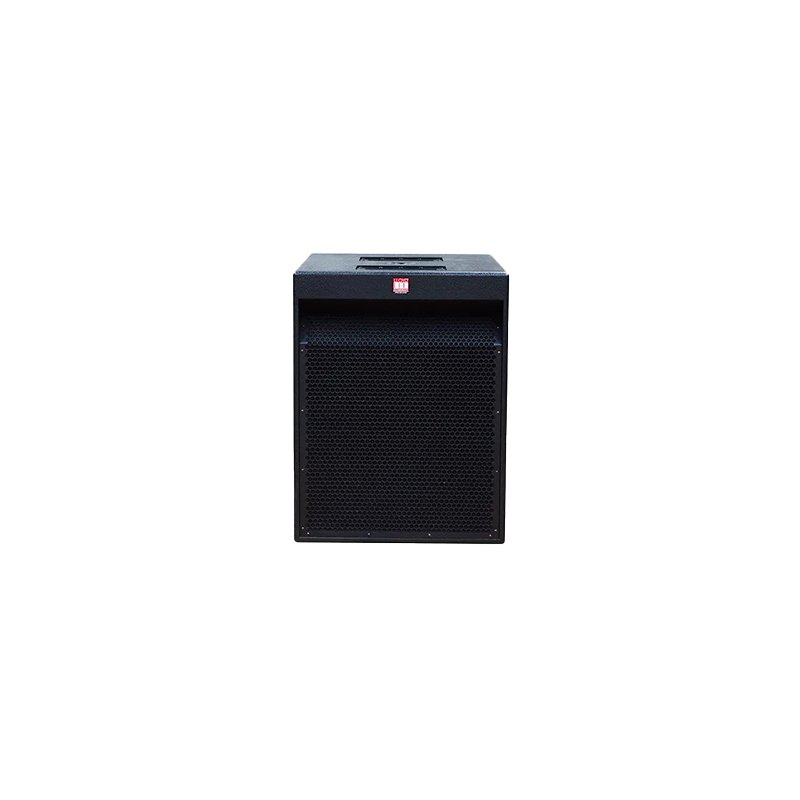

LF5 PRO
Compact high output 18-inch horn loaded subwoofer
• 1700W AES, high efficiency and high output design
• Compact and light weight design
• Fusion horn/reflex loaded subwoofer system
• 18-inch very high excursion, high power Italian bass driver
• Extended frequency range 32Hz-180Hz
• 8-ohms nominal impedance
• Enclosure is stackable in both horizontal and vertical orientations
The LF5 pro is a high-performance compact single 18-inch subwoofer. A derivative of the LF5+, the LF5 pro is larger, and possess very high output capability with extended low frequency response.
A single very high excursion specialised B&C woofer is mounted into a bass horn enclosure to ensure outstanding performance.
The LF5 pro is designed to be used ground stacked as stand alone or in multiples. Best performance is achieved by close coupling a stack of four or more LF5 pro opposite on their sides to increase the effective horn area.
For large outdoor systems, multiples of these configurations will form a tall vertical source which will direct the bass into the audience yet achieving almost constant horizontal.
They are an ideal solution for clubs, large halls, or outdoor events where the systems can be moved easily by a two-person crew.
Although the LF5 pro was designed for use with the MH7 Pro and EDGE-X XLA3, XLA5 line-array systems, it may be used to augment the bass performance of any Lloyd Lee Co. speaker system.
• Live sound (medium to large scale sound reinforcement)
• Auditorium
• Club sound
• Concert halls
• Stadiums
| TYPE | Horn loaded subwoofer |
|---|---|
| FREQUENCY RANGE | 32Hz-180Hz + 10dB |
| LF SECTION | 1 x 18-inch horn loaded |
| RATED POWER | 1700W AES, 6800W peak |
| SENSITIVITY | 101dB |
| MAXIMUM SPL (CALCULATED @ IM) | 132dB continuous,138dB peak |
| NOMINAL IMPEDANCE | 8 ohms |
| ENCLOSURE | Rectangular, BWP ply construction |
| FINISH | Lloyd Lee Co. textured paint |
| PROTECTIVE GRILLE | Perforated steel power coated, 16G. |

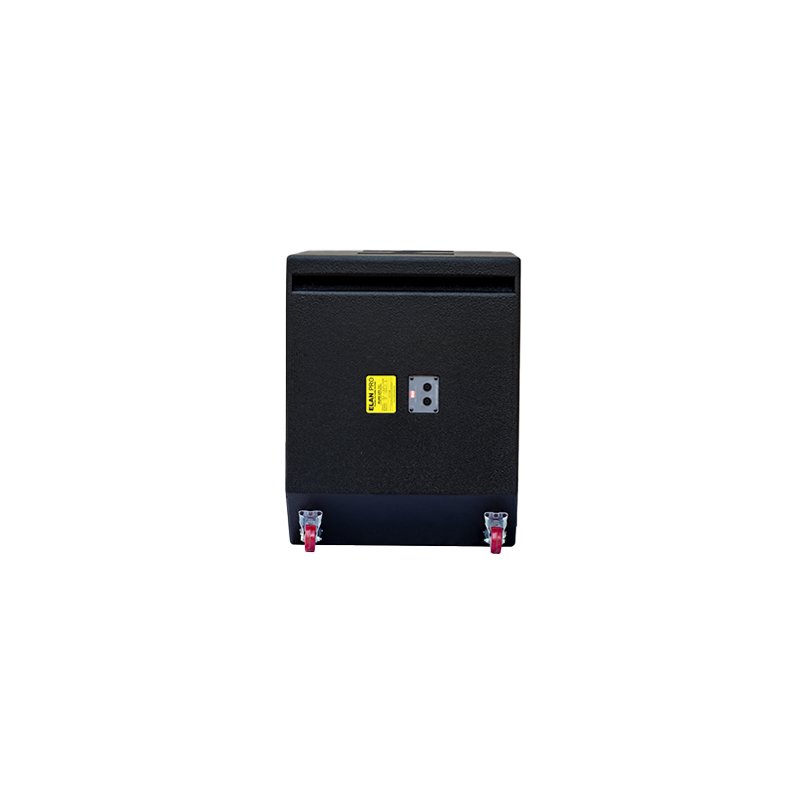

| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | (W) 560mm x (H) 805mm x (D) 590mm |
| WEIGHT | 60 kgs |
