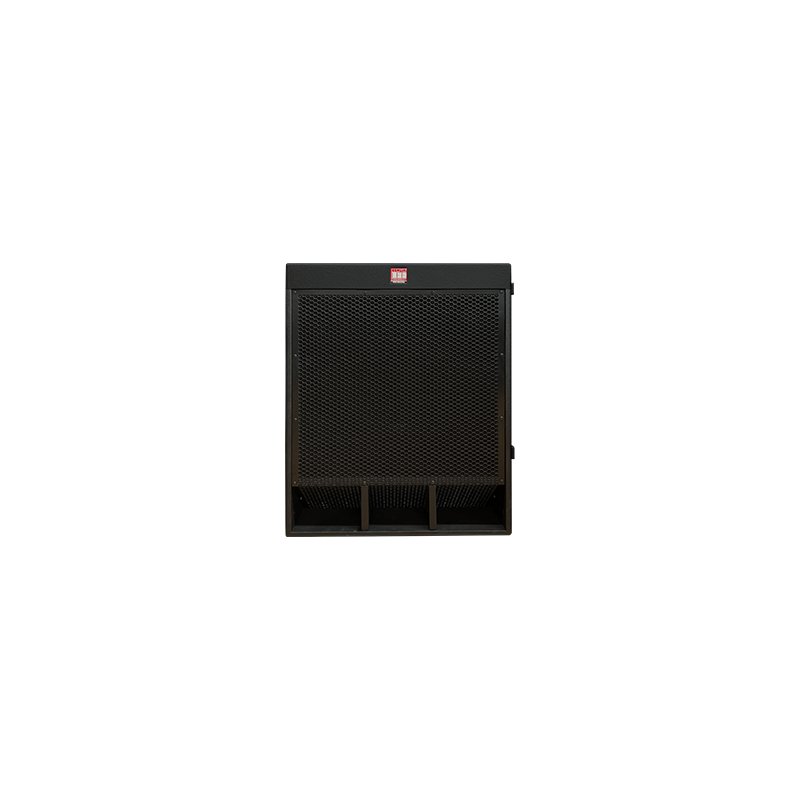

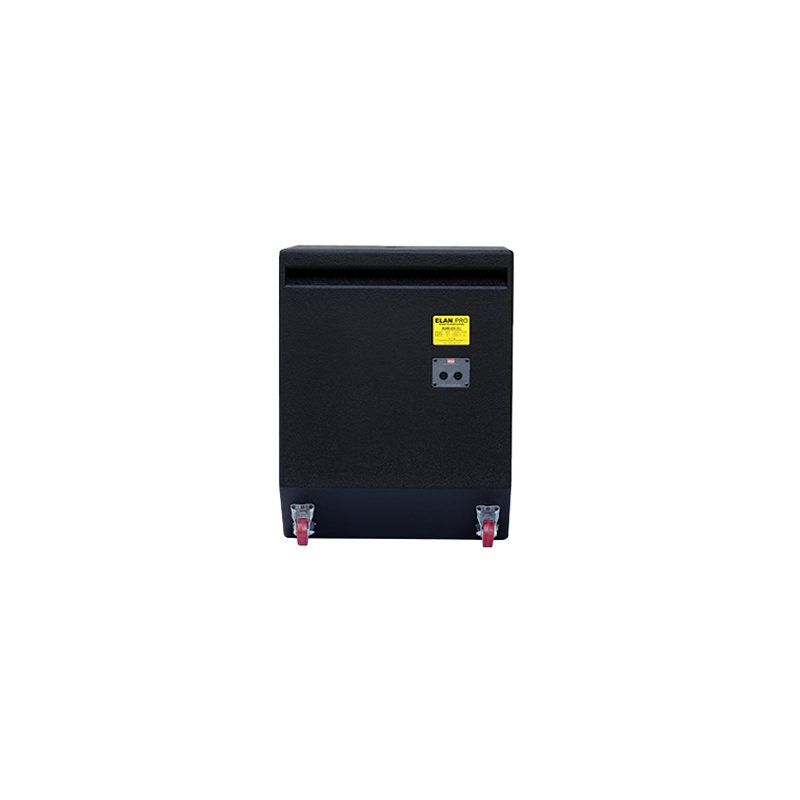

LF3 PRO
Compact high output 18-inch horn loaded subwoofer
• Compact design high-output horn loaded subwoofer system with long throw capability
• 18-inch very high excursion, high power Italian bass driver
• Frequency range 30Hz-180Hz
• 8-ohms nominal impedance
• Enclosure is stackable in both horizontal and vertical orientations
The LF3 pro is a high performance single 18-inch horn loaded subwoofer that incorporates the advantages of the very successful LF1+ subwoofer into an extremely compact subwoofer.
A derivative of the LF1, the LF3 pro design utilizes unique sub-horn cabinet construction. This design behaves like a horn over much of its range, but without the time delay and weight problems usually associated with conventional designs.
Vented-box advantages take over for the lowest octave and assist in producing exceptionally high levels of clean, punchy bass from a modest-sized box.
A specialized B&C 18-inch 1300W woofer is loaded to ensure chest-kicking low frequency, extremely long-term power handling and reliability in all applications.
The reverse woofer orientation has been used to optimize the rear chamber volume and decrease the horn flare rate for extended low-end performance.
When used with the MH3 pro, MH7 pro, XLA1, XLA3 or Elite full-range speaker systems; the LF3 pro provides high-output sound reinforcement for clubs, large halls, or outdoor events in a compact package which can be moved easily by a one-person crew.
The LF3 pro rectangular cabinet can be easily ground stacked in multiples to increase low frequency directivity and level.
When two speaker systems are placed side by side, the woofer cones mutually couple, causing the two systems to act as one system with twice the effective cone area at very low frequencies, giving an additional 3dB increase in maximum acoustic.
• Live sound (medium to large scale sound reinforcement)
• Auditorium
• Club sound
• Concert halls
• Stadiums
| TYPE | Horn loaded subwoofer |
|---|---|
| FREQUENCY RANGE | 30Hz-180Hz |
| LF SECTION | 1 x 18-inch horn loaded |
| RATED POWER | 1300W AES, 5200W peak |
| SENSITIVITY | 101dB |
| MAXIMUM SPL (CALCULATED @ IM) | 129dB continuous,135dB peak |
| NOMINAL IMPEDANCE | 8 ohms |
| ENCLOSURE | Rectangular, BWP ply construction |
| FINISH | Lloyd Lee Co. textured paint |
| PROTECTIVE GRILLE | Perforated steel power coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | (W) 560mm x (H) 805mm x (D) 590mm |
| WEIGHT | — kgs |
