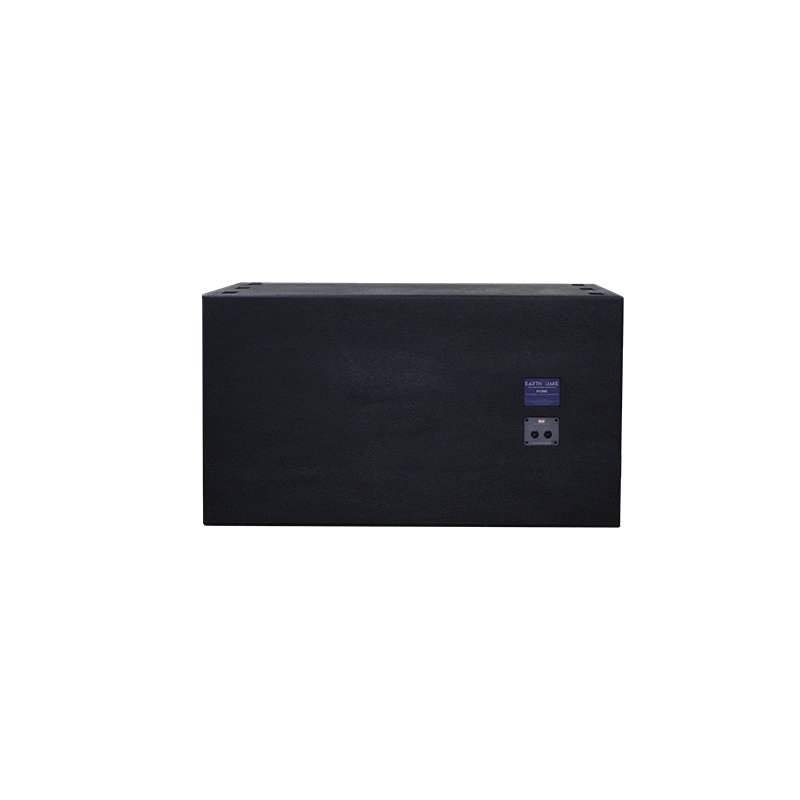

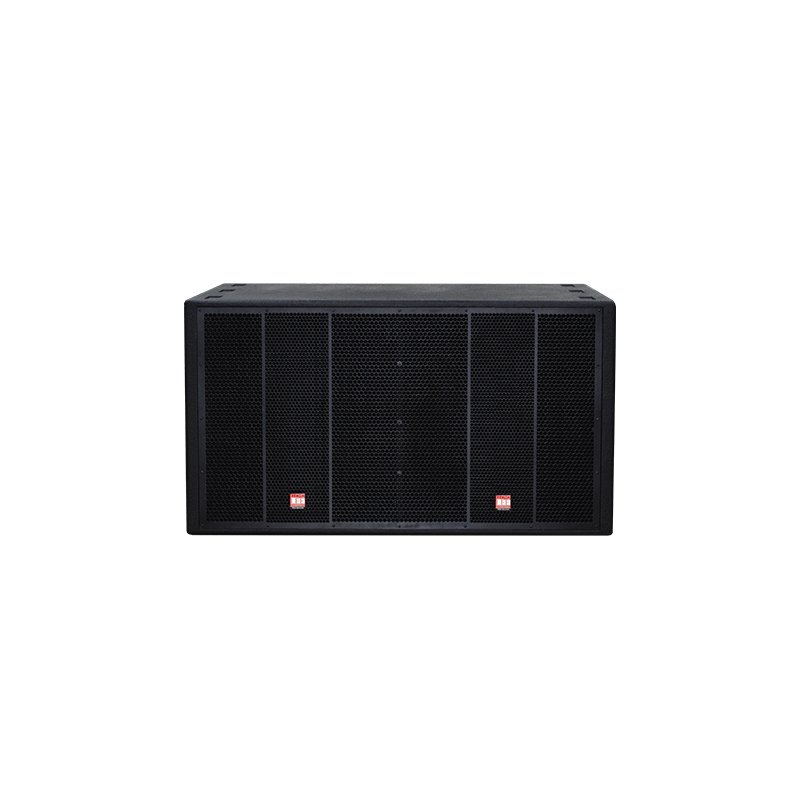

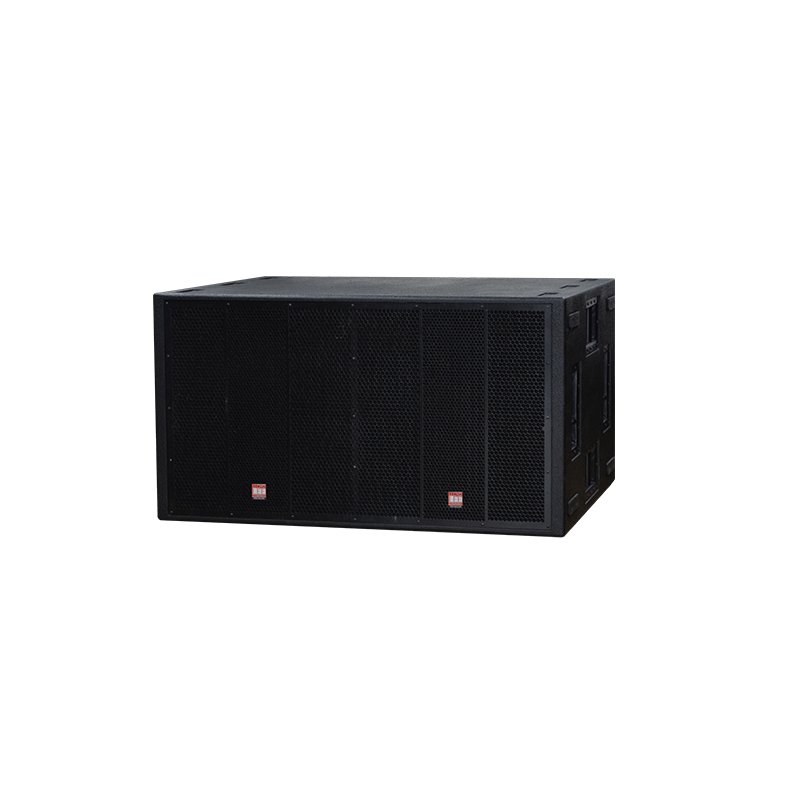

H-ONE

 Very high output dual 21-inch horn loaded subwoofer system

Features

• High efficiency, very high-power design
• 4800W AES, 1600W peak power handling
• Excellent low frequency response
• 2 x 21-inch cutting edge technology Italian woofers
• Frequency range 25Hz-140Hz
• Dual vented horn subwoofer system with long throw capability
• 4-ohm nominal impedance
• Enclosure is stackable in both horizontal and vertical orientations

Enquiry Now   Download Brochure

H-ONE is the most powerful and extreme low frequency subwoofers from Lloyd Lee Company.
The H-ONE can produce intense, extreme bass, even in the largest of venues, large clubs or outdoor applications with great reliability.

H-ONE is equipped with two 21-inch 2400W (4-ohms each) state-of-the-art woofers that bring bass reproduction closer to the ultimate experience.
The subwoofer features two state-of-the-art Italian 2400 Watt AES (4 ohms) power rating 21-inch woofers with specialized ultra linear suspension design that assures linear movement and very high controlled excursion even at high power levels.
The H-ONE is specially designed for maximum low frequency reproduction, incredible fatigue resistance and excellent long-term reliability.

The H-ONE finds its application in both live and recorded music.
Its capacity to reproduce very high levels of sub – low frequencies with extraordinary definition makes it the most powerful and versatile sub in its category.

•  Very high output dual 21-inch subwoofer system
•  4000W AES, 16000W peak power handling
•  High efficiency, very high-power design

• High power and extreme low frequency reproduction is required
• Live sound (medium-large scale)

TYPE Horn loaded subwoofer
FREQUENCY RANGE 25Hz-140Hz
DRIVERS LF 2 x 21-inch, horn loaded
RATED POWER LF1: 2400W @ 4 ohms | LF2: 2400W @ 4 ohms
SENSITIVITY 104dB
MAXIMUM SPL (CALCULATED @ IM) 147dB continuous, 153dB peak
NOMINAL IMPEDANCE LF: 4 ohms + 4 ohms
DISPERSION (-6db) -
ROTATABLE HORN -
CROSSOVER -
ENCLOSURE Rectangular, BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated steel powder coated, 16G.
CONNECTORS 2 x Neutrik NL4
DIMENSIONS —- mm x — mm x — mm  (W x H x D)
WEIGHT — kg
