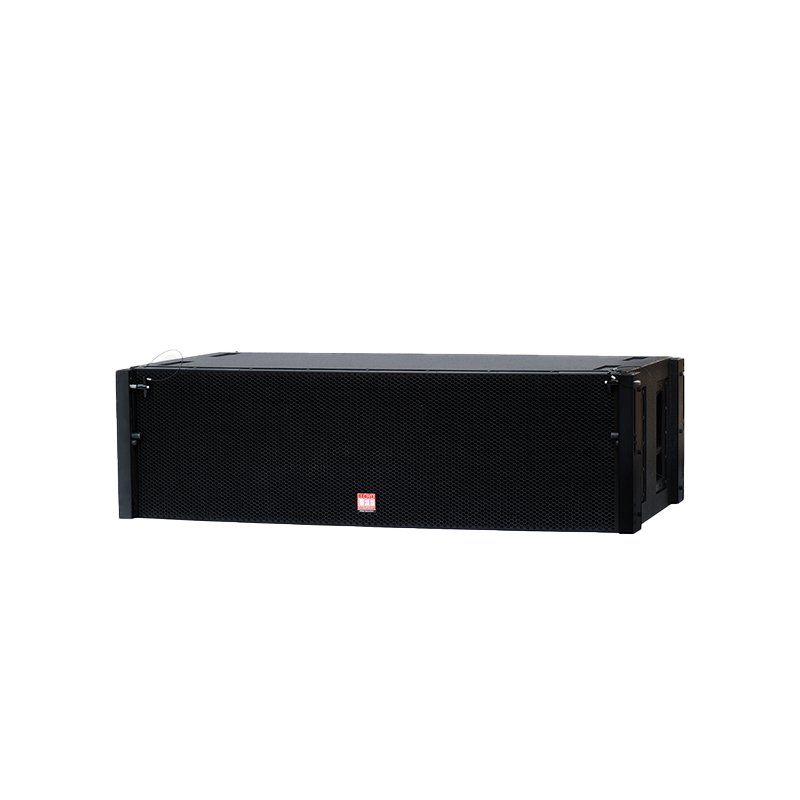

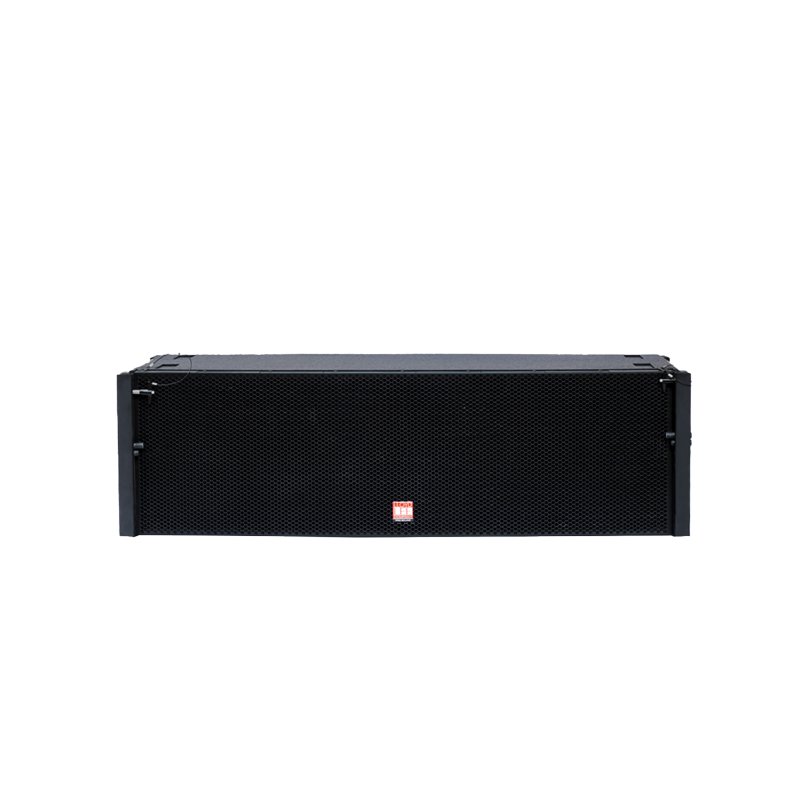

GOLD LINE+
Very high output array-able mid-high speaker system
• Very high acoustic output for very compact enclosure
• Specialized mid and high frequency transducers
• 2 x 12-inch high performance mid-bas section
• 4x1.4-inch exit high efficiency Neodymium compression drivers for precise performance
• Very long throw
• 90°H x 15°V coverage pattern
GOLD LINE+ was designed as compact, array-able mid-high system for large scale sound reinforcement.
GOLD LINE+ is a far throw, compact, 2-way mid-high system in a rectangular flyable enclosure with a 90° H x 15° V coverage pattern.
2x Italian custom built very high performance 12-inch Neodymium mid-bass transducers are coupled to 4 x 1.4-inch large format high frequency compression drivers.
The horns and drivers were designed as part of the RED development and represent a step forward in state-of-art loudspeaker design in terms of high acoustic output.
The mid bass horn provides optimal loading for the 12-inch driver, delivering smooth response and extended efficiency up to 1800Hz.
This combination results in improved vocal intelligibility and clarity with a smooth response from the lower-to-mid range.
GOLD LINE+ possesses excellent throw and coverage like the famous EXTREME RED loudspeaker, along with further enhancement in driver technology for higher power handling and very high SPL.
• Very high output array-able mid-high speaker system
• Very high acoustic output for very compact enclosure
• Specialized mid and high frequency transducers
• Live sound (medium to large scale sound reinforcement)
• Concert halls, stadiums
| TYPE | Two-way mid-high horn loaded |
|---|---|
| FREQUENCY RANGE | 120Hz-18kHz |
| DRIVERS LF | HF | 2 x 12-inch horn loaded | 4 x 1.4-inch exit HF compression driver horn loaded |
| RATED POWER | LMF 1200W AES, 4000W peak | HF 480W AES, 1920W peak |
| SENSITIVITY | LMF 108 dB | HF 118 dB |
| MAXIMUM SPL (CALCULATED @ IM) | LMF 134dB continuous, 140dB peak | HF 146dB continuous, 152dB peak |
| NOMINAL IMPEDANCE | LMF 2 x 16 ohms | HF 2 x 16 ohms |
| DISPERSION (-6db) | 100º horizontal x 15º vertical |
| ROTATABLE HORN | - |
| CROSSOVER | 1.7kHz active |
| ENCLOSURE | Rectangular, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |

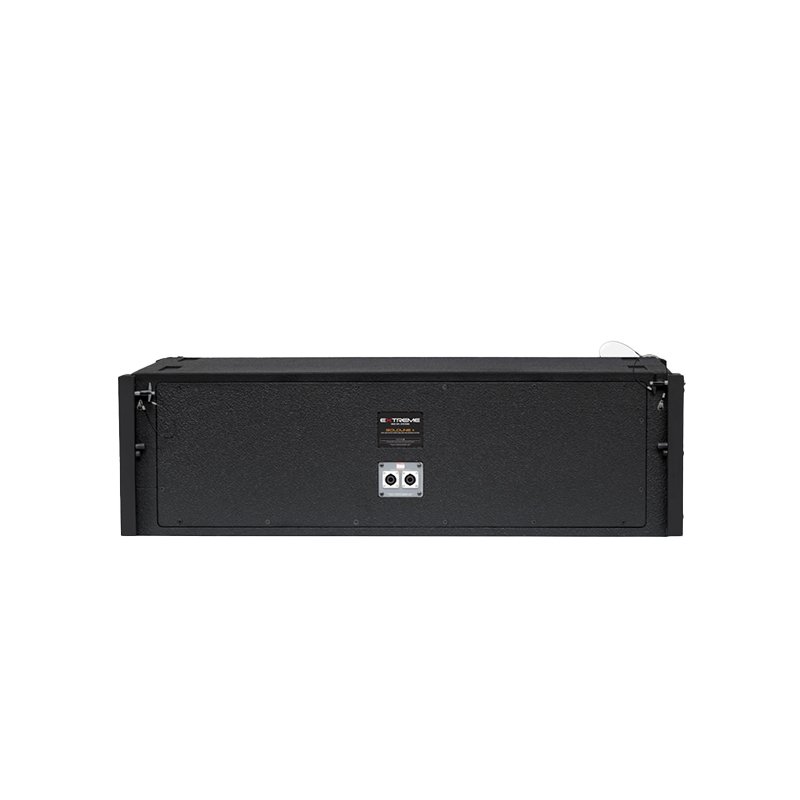

| CONNECTORS | 2 x Neutrik NL8 |
| DIMENSIONS | --- mm x 375 mm x 755 mm ( W x H x D) |
| WEIGHT | --- Kg |
