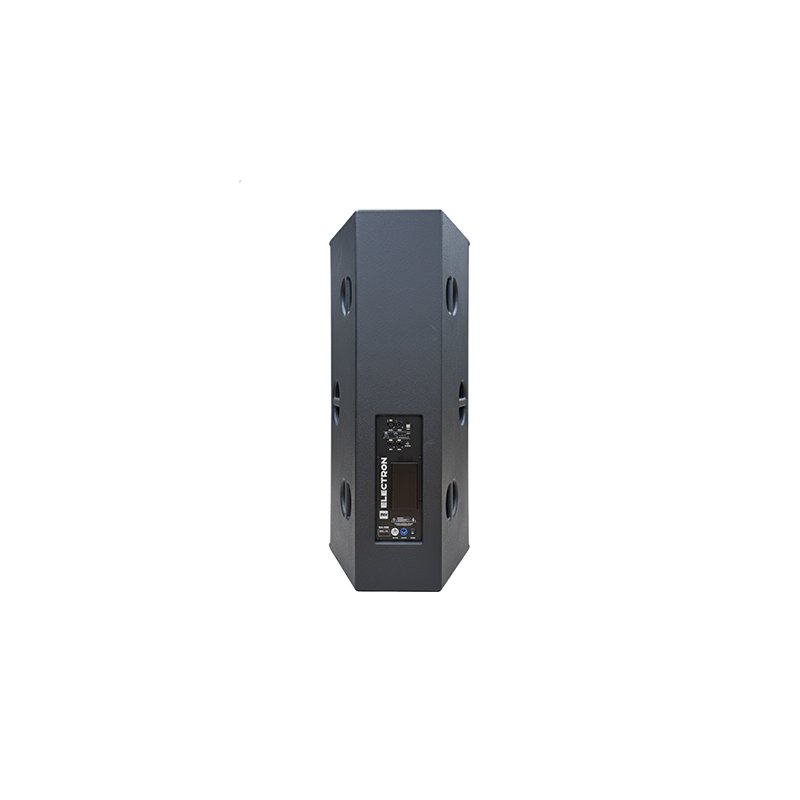

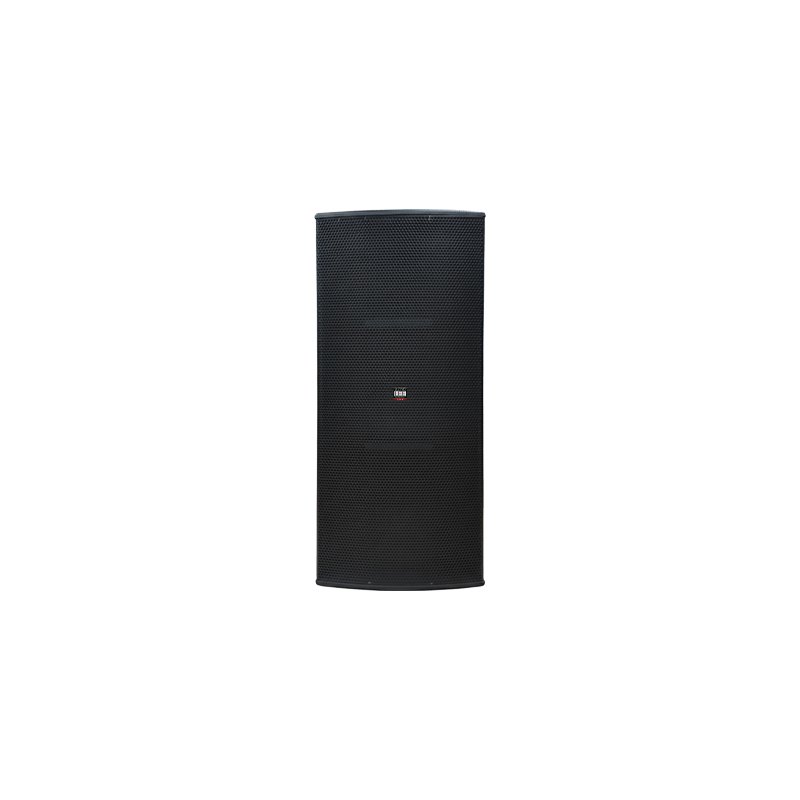

FR25A

 Powered 2000W, dual 15-inch LF + 1.4-inch HF 2 way full-range loudspeaker

Features

• 2000W powered two-way multipurpose speaker system with universal mains
• European state-of-the-art 2 Ch class D module rated at 1000W LF + 1000W HF
• World class DSP engine that ensures excellent sound quality and reliability
• European 100W 1.4-inch exit pure titanium large format HF compression driver
• European 2x1000W 15-inch LF transducer for outstanding mid and bass clarity
• Constant-directivity horn
• Integral M8 threaded points for suspension (optional)
• Vented LF enclosure, bass down to 50Hz
• Push-to-select functionality with a total of 8 pre-optimised settings
• Compatible with Electron series and a wide range of Lloyd Lee and Outplay products

Enquiry Now   Download Brochure

The ELECTRON FR25A powered loudspeaker system joins the Lloyd lee Co. family of professional sound touring products.
The FR25A is high power full rage loudspeaker designed for main PA system and high power stage side-fill applications.
 FR25A employs a two world class European 15-inch woofer that delivers excellent bass and mid-range clarity, each driver reproducing a set of frequencies.
For the HF reproduction a large format 1.4-inch exit titanium HF compression driver is used to ensure crisp vocal reproduction and reliability in the most demanding stage monitor or PA applications.

The FR25A is powered by the Lloyd Lee Co. PM2000 power module that delivers an outstanding high-power output of 2x1000W @ 4Ω.
The PM2000 module sets a new benchmark in audio performance, efficiency and power density.
 Signal processing is accomplished by way of a powerful 24 bit DSP providing unparalleled control over critical signal parameters.

The PM2000 boasts many class leading features such as-
1)Full protection circuitry including Over-Current, Over/Under-Voltage, Output DC and Over-Temperature
2)Switched-mode power supply with PFC and auto voltage sensing Class D amp module- full bandwidth
3) Built-in FIR filter, parametric eqs. crossover and phase filters and accurate limiters guarantee excellent sonic performance and system reliability.
4) The PM2000 24 bit high end converters coupled with 96kHz sample rate ensures an excellent dynamic range and exceptionally low distortion.

The FR25A is designed for medium-throw PA applications or stage side fills and can be combined with the SB18A powered subwoofer for breath-taking full-range sound.
The F25A is an ideal solution for events like conferences, parties, club sound, installations of individual speakers or clusters in entertainment, cultural or religious venues, as well as on stage with bands as stage side fills.

• Live sound
• Auditorium
• Houses of worship
• Club sound
• Various installations

TYPE Powered two-way compact/monitor (full-range)
FREQUENCY RANGE 41Hz-19kHz
DRIVERS LF | HF 2x15-inch reflex-loaded direct radiator | 1x1.4-inch exit HF compression driver horn loaded
NOMINAL HF+LMF AMPLIFIER POWER 1000W @ 4ohms / 500w @ 8ohms
NOMINAL LF AMPLIFIER POWER 1000W @ 4ohms
MAXIMUM SPL (CALCULATED @ IM) 130dB continuous, 136dB peak
NOMINAL IMPEDANCE -
DISPERSION (-6db) 50º horizontal x 90º vertical
ROTATABLE HORN No
AC REQUIREMENTS 240V, 50Hz
ENCLOSURE Trapezoid
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated steel powder coated, 16G.
CONNECTORS Maximum input level +18dBu, Input impedance 20KΩ | Input: Female XLR | Loop Thru: Male XLR | AC Input: PowerCON | AC Output: PowerCON
DIMENSIONS — mm x — mm x — mm  ( W x H x D)
WEIGHT — kg
