EM 25HP-V2
High output dual 15-inch LF + 1 x 1.4-inch HF 2 way full-range loudspeaker
• Two-way high-output full-range
• EM25HP 1800W continuous, 5600W peak power handling
• 1.4-inch exit B&C compression driver for high power and precise vocal reproduction
• 2 x 15-inch B&C LMF transducer with weather protected cone and plates for outdoor use
• Advanced crossover with HF protection
• Vented LF enclosure, solid bass down to 43Hz
The EM25HP is a dual 15-inch full-range speaker system that employ two very high-power B&C 15-inch woofers which deliver excellent mid-range clarity and low frequencies with exceptional reliability.
A specially designed crossover network integrates the 15-inch speakers to a high power 1.4-inch large format driver.
The driver is coupled to a unique elliptical 70° x 50° constant-directivity horn for smooth and even coverage.
HF overload protection is provided for reliable, long-term operation.
The 50° coverage angle of the EM25HP is wide enough to provide coverage of an audience when used one-per side yet narrow enough to allow splaying of multiple enclosures without excessive coverage overlap.
The EM25HP is designed for medium-throw PA applications, side fills or drum fills, it excels where all other dual 15-inch loudspeakers fall short on-power and detail.
The EM25HP are an excellent choice when the application calls for high performance and simplicity.
A pair of EM25HP and a single, high-power amplifier is a complete sound system capable of reinforcing bass and kick drum or playing high-level music in clubs and other venues.

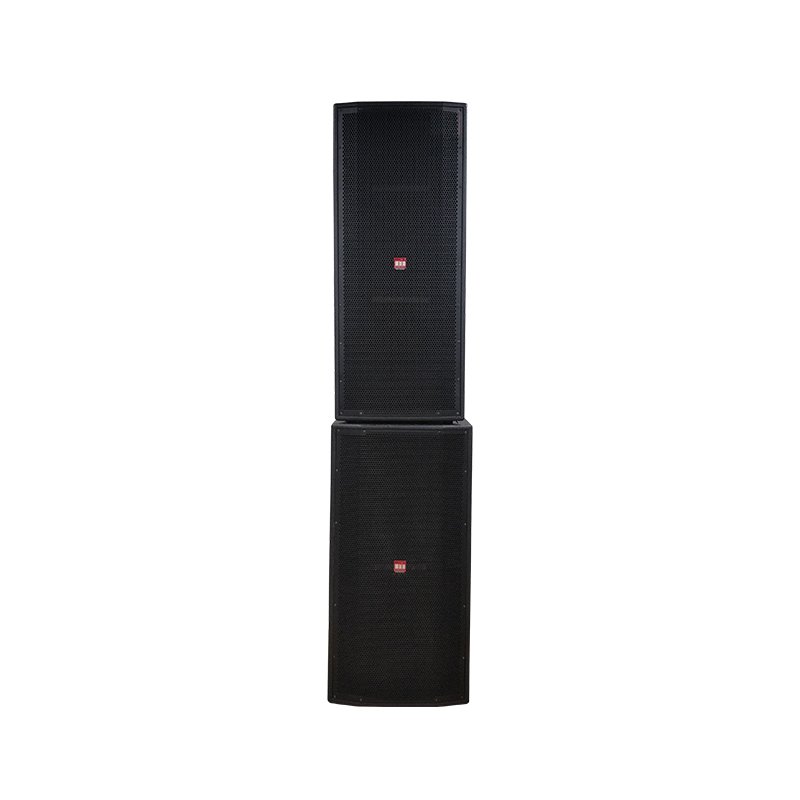

The EM25HP can be combined with ES28 subwoofer for incredible full range sound.
• Live sound
• Auditoriums
• Houses of worship
• Club sound
• Various installations
| TYPE | Two-way compact (full-range) |
|---|---|
| FREQUENCY RANGE | 43Hz-19kHz |
| DRIVERS LF | HF | 2 x 15-inch reflex-loaded direct radiator | 1 x 1.4-inch exit HF compression driver horn loaded |
| RATED POWER | 1800W AES, 5800W peak |
| SENSITIVITY | 101dB |
| MAXIMUM SPL (CALCULATED @ IM) | 130 dB continuous, 136dB peak |
| NOMINAL IMPEDANCE | 4 ohms |
| DISPERSION (-6db) | 75º horizontal x 50º vertical |
| ROTATABLE HORN | – |
| CROSSOVER | 1.5kHz passive |
| ENCLOSURE | Trapezoid, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | 485 mm x 1195 mm x 405 mm (W x H x D) |
| WEIGHT | — Kg |
