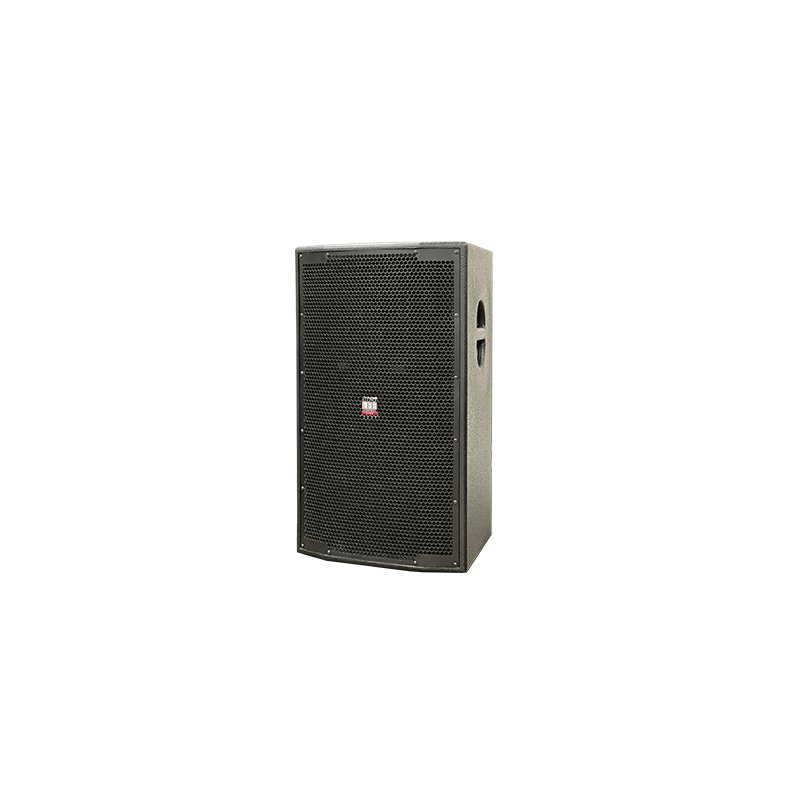

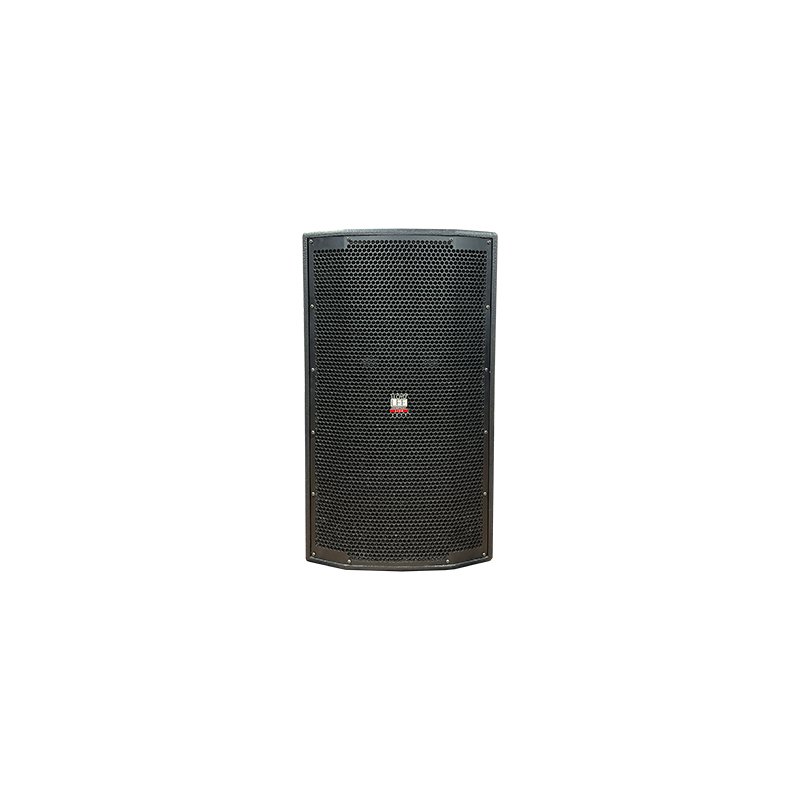

EM 15 HP

Very high output compact 15-inch LF + 1.4-inch HF 2-way full-range loudspeaker

Features

• Compact multipurpose design
• Two-way very high-output full range
• 1000W continuous, 3600W peak power handling
• 1.4-inch exit compression driver for high power and precise vocal reproduction
• 15-inch long excursion high power Italian woofer with weather protected cone and plates for outdoor use
• Advanced crossover with HF protection
• Unique elliptical 80° x 60° constant-directivity horn
• Integral M8 threaded points for suspension (optional)
• Vented LF enclosure, solid bass down to 39Hz
• Mount for tripod use

Enquiry Now   Download Brochure

The EM15 HP is a 15-inch two-way full-range loudspeaker with 1000Watts continuous power handling loudspeaker designed for main system or stage monitor applications.
The EM15 HP employs a very high excursion Italian 15-inch woofer into an enclosure with specially designed ports that enables awesome bass response down to 39Hz.
 The EM15 HP is equipped with a high power and high efficiency 1.4-inch exit driver for extra head room and long-term reliability.
The driver is coupled to 80° x 60° constant directivity horn for smooth and even coverage.
HF overload protection is provided for reliable, long term operation.
The 60° coverage angle of the EM15 HP is wide enough to provide coverage of an audience when used one-per side yet narrow enough to allow splaying of multiple enclosures without excessive coverage overlap.

The EM15 HP fits well in applications that require extra low-frequency extension and very high SPL as compared to standard 15-inch speakers.
The EM15 HP is an ideal solution for events like conferences, parties, club sound, installations of individual speakers or clusters in entertainment, cultural or religious venues, as well as on stage with bands as stage monitors.

• Very high output compact 15-inch LF + 1.4-inch HF
• 1000W continuous, 3600W peak power handling
• 2-way full-range loudspeaker

• Club sound
• Various installations
• Live sound, auditorium, theatres, houses of worship
• High output stage monitor for vocal, drums and keyboards
• Front fill and stage fill

TYPE Two-way compact (full-range)
FREQUENCY RANGE 39Hz-19kHz
DRIVERS  LF | HF 1 x 15-inch reflex-loaded direct radiator | 1 x 1.4-inch exit HF compression driver horn loaded
RATED POWER 1000W AES, 4000W peak
SENSITIVITY 98dB
MAXIMUM SPL (CALCULATED @ IM) 126dB continuous, 132dB peak
NOMINAL IMPEDANCE 8 ohms
DISPERSION (-6db) 75º horizontal x 50º vertical
ROTATABLE HORN No
CROSSOVER 1.5kHz passive
ENCLOSURE Trapezoid, BWP ply construction
FINISH Lloyd Lee Co. weather resistant textured paint cover
PROTECTIVE GRILLE Perforated steel powder coated, 16G.
CONNECTORS 2 x Neutrik NL4
DIMENSIONS 460 mm x 785 mm x 405 mm  (W x H x D)
WEIGHT -- Kg
