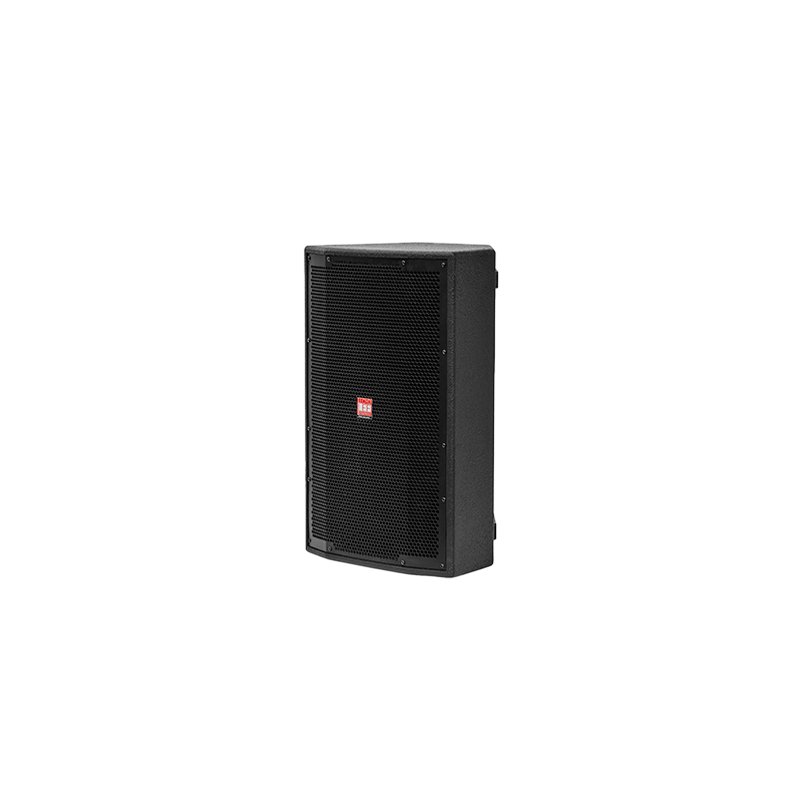

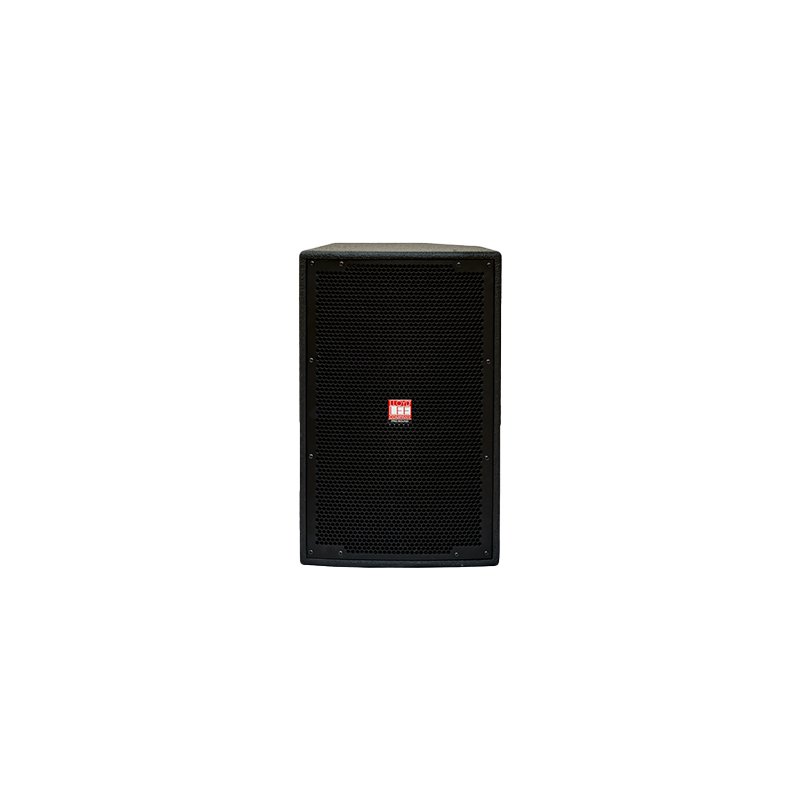

EM 12
High output compact 12-inch LF + 1-inch HF 2 way full-range loudspeaker
• Two-way high-output full-range
• Italian 1-inch exit HF compression driver
• Italian 12-inch LF transducer with weather protected cone and plates for outdoor use
• Advanced crossover with HF protection
• Unique rotatable 60° x 40° constant directivity horn
• 400W continuous, 1600W peak power handling

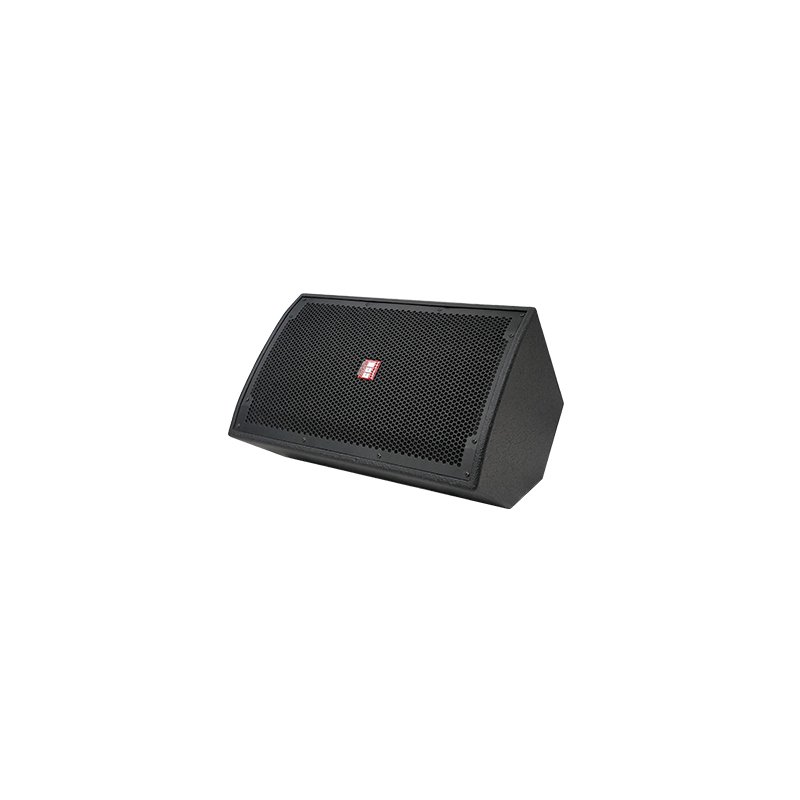

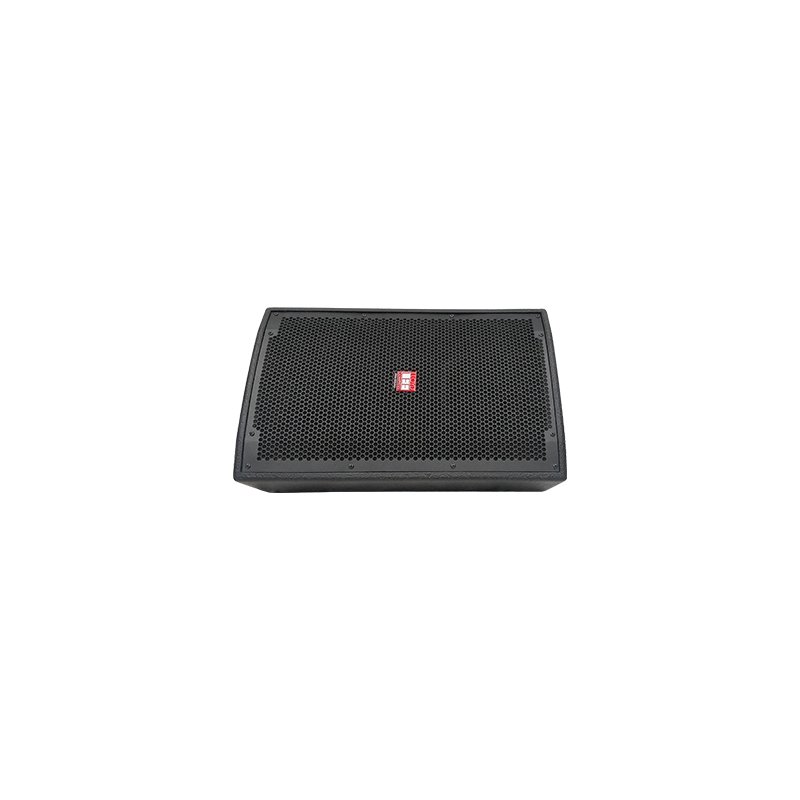

• Ultra-compact low profile 5-side multipurpose design with monitor slant
• Integral M8 threaded points for suspension (optional)
• Vented LF enclosure
The EM12 is an ultra-compact, low profile loudspeaker designed for main system or stage monitor applications.
Employing an incredibly low-distortion, Italian 12-inch woofer; the EM12 will astound you with performance that blows away ordinary 12-inch speakers.
A specially designed crossover network integrates the speaker with an Italian 1-inch pure titanium HF compression driver.
The driver is coupled to a unique 60° x 40° constant directivity horn that’s rotatable for precise and even coverage depending on application. HF overload protection is provided for reliable, long term operation.
The EM12 compact cabinet design, allows the system to be tucked tightly against a ceiling for low-profile applications.

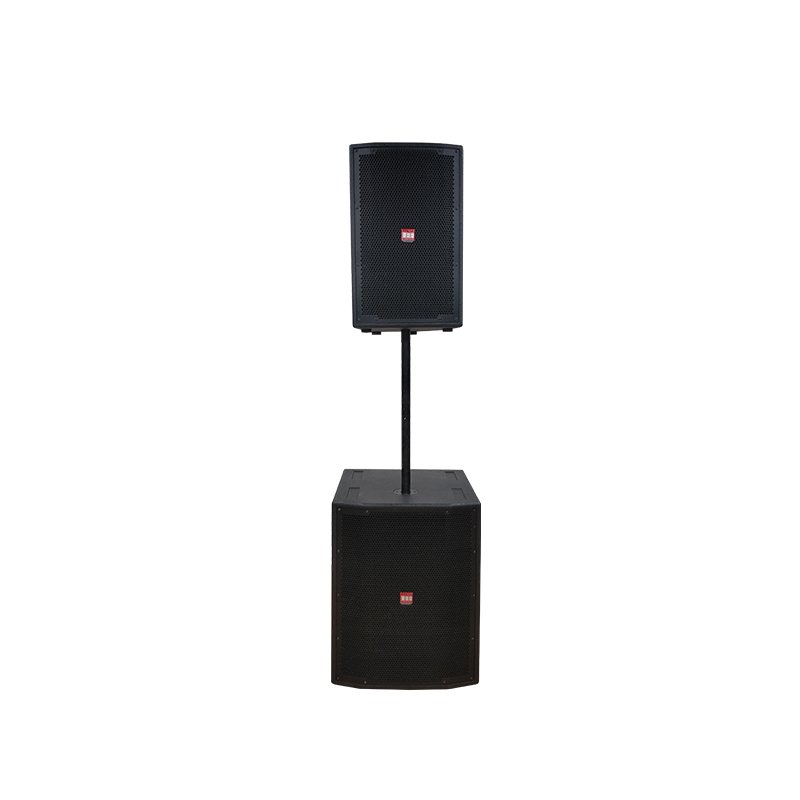

The EM12 can be combined with ES15 or ES18 subwoofer for incredible full range sound.
The EM12 is an ideal solution for events like conferences, parties, club sound, installations of individual speakers or clusters in entertainment, cultural or religious venues, as well as on stages with bands as stage monitors.
• High output compact 12-inch LF + 1-inch HF
• 400W continuous, 1600W peak power handling
• 2-way full-range loudspeaker
• Live sound
• Auditoriums
• Houses of worship
• Club sound
• Various installations
| TYPE | Two-way full range /monitor |
|---|---|
| FREQUENCY RANGE | 50Hz-18kHz |
| DRIVERS LF | HF | 1 x 12-inch reflex-loaded direct radiator | 1 x 1-inch exit HF compression driver horn loaded |
| RATED POWER | 400W AES, 1600W peak |
| SENSITIVITY | 98dB |
| MAXIMUM SPL (CALCULATED @ IM) | 119dB continuous, 125dB peak |
| NOMINAL IMPEDANCE | 8 ohms |
| DISPERSION (-6db) | 60º horizontal x 40º vertical |
| ROTATABLE HORN | Yes |
| CROSSOVER | 1.6kHz passive |
| ENCLOSURE | Trapezoid, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | 386 mm x 637 mm x 320 mm (W x H x D) |
| WEIGHT | 19 Kg |
