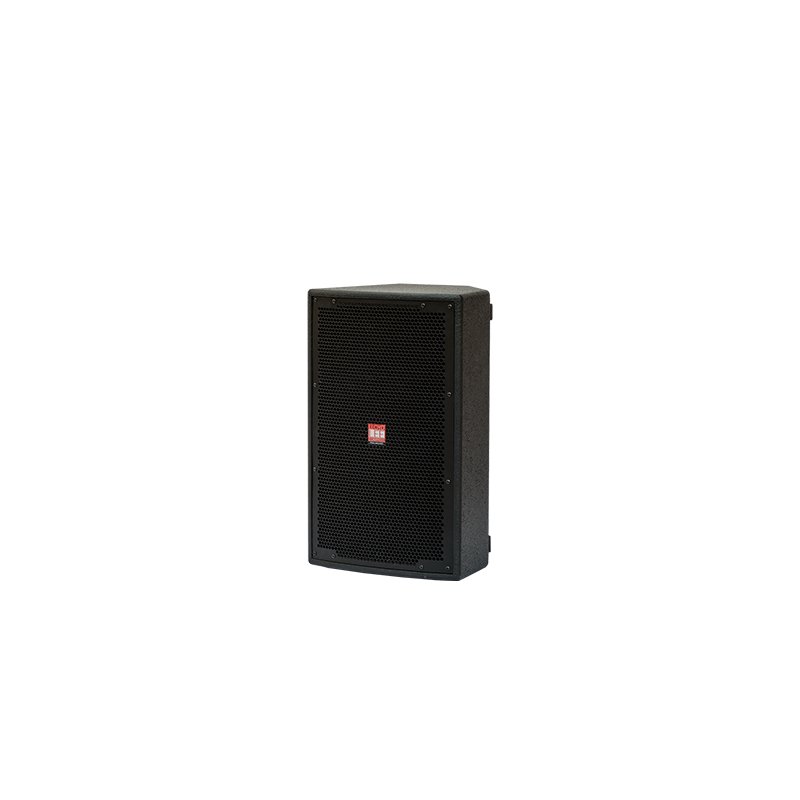

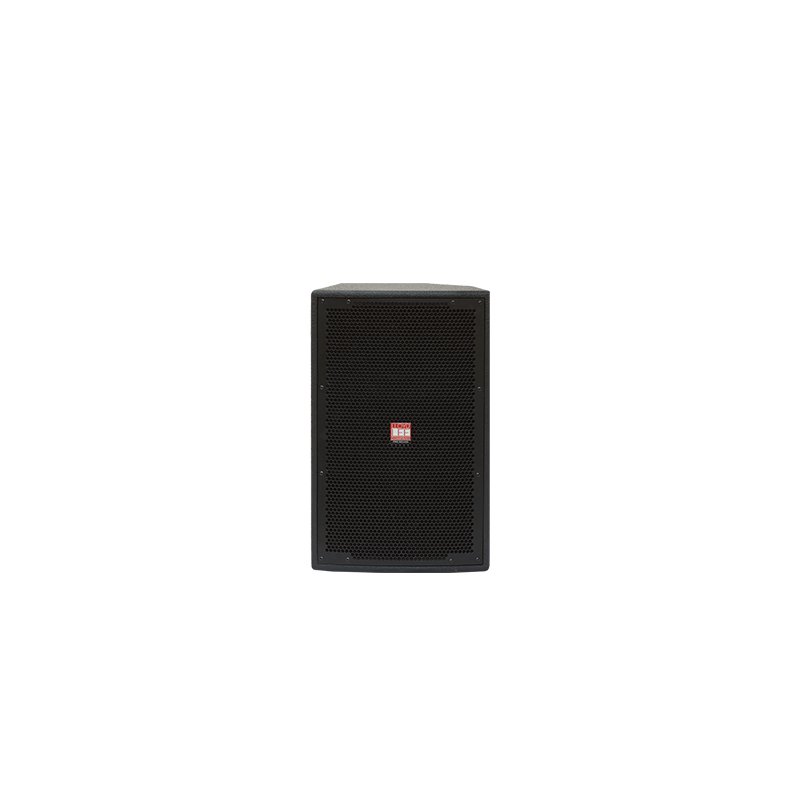

EM 10
High output compact 10-inch LF + 1-inch HF 2-way full-range loudspeaker
• Two-way high-output full-range
• 1-inch exit pure titanium HF compression driver
• Specialized B&C 10-inch LF transducer with weather protected cone and plates for outdoor use
• Advanced crossover with HF protection
• Unique asymmetrical horn
• 300W continuous, 1000W peak power handling
• Ultra-compact multipurpose design and mount for tripod use
• Integral M8 threaded points for suspension (optional)
• Vented LF enclosure
The EM 10 is an ultra-compact, low-profile loudspeaker designed for main system or stage monitor applications. Employing an incredibly low-distortion, Italian 10-inch woofer; the EM10 will astound you with performance that blows away ordinary 10-inch speakers. A specially designed crossover network integrates the speaker with an Italian 1-inch pure titanium HF compression driver. The driver is coupled to a unique 60° x 40° constant directivity horn that’s rotatable for precise and even coverage depending on application. HF overload protection is provided for reliable, long-term operation.
The EM10 compact cabinet design, allows the system to be tucked tightly against a ceiling for low-profile applications. The EM10 can be combined with ES15 or ES18 subwoofer for incredible full range sound.
The EM10 is an ideal solution for events like conferences, parties, club sound, installations of individual speakers or clusters in entertainment, cultural or religious venues, as well as on stages with bands as stage monitors.
• Live sound
• Auditoriums
• Houses of worship
• Club sound
• Various installations
| TYPE | Two-way compact/monitor (full-range) |
|---|---|
| FREQUENCY RANGE | 60Hz-18kHz |
| DRIVERS LF | HF | 1 x 10inch reflex-loaded direct radiator | 1 x 1 inch exit HF compression driver horn loaded |
| RATED POWER | 300W AES, 1000W peak |
| SENSITIVITY | 98dB |
| MAXIMUM SPL (CALCULATED @ IM) | 115dB continuous, 121dB peak |
| NOMINAL IMPEDANCE | 8 ohms8 ohms |
| DISPERSION (-6db) | 60º horizontal x 40º vertical |
| ROTATABLE HORN | Yes |
| CROSSOVER | 1.8kHz passive1.8kHz passive |
| ENCLOSURE | Trapezoid, BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | — mm x — mm x — mm (W x H x D) |
| WEIGHT | — Kg |
