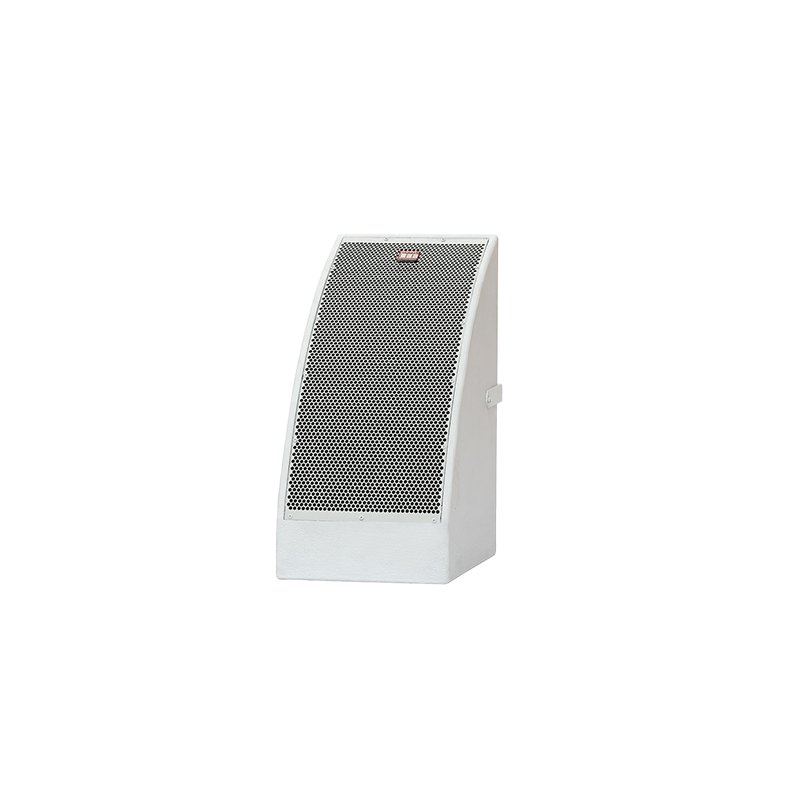

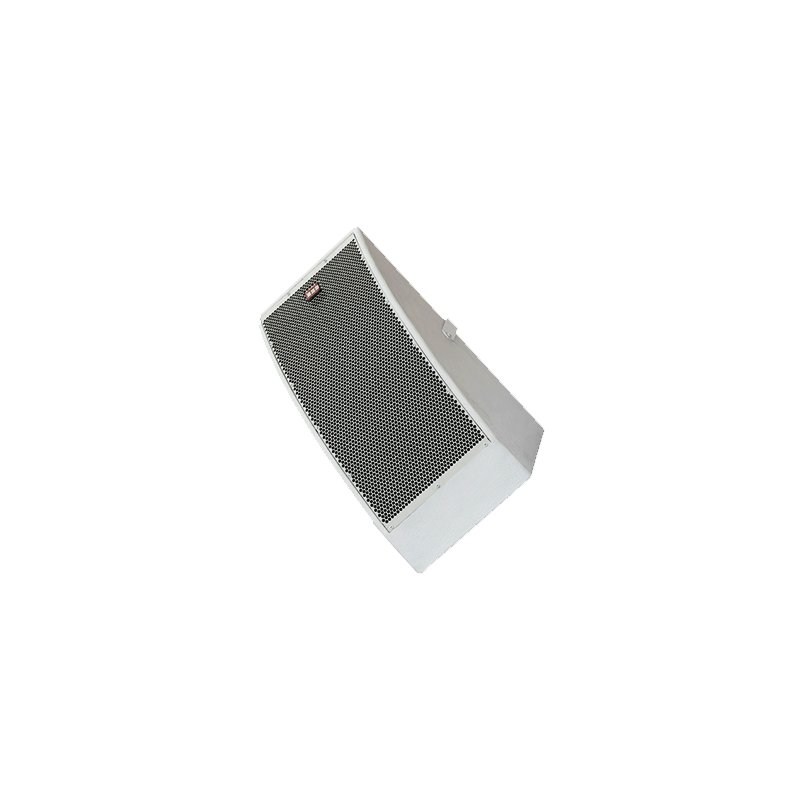

EI 12
High output compact 12-inch LF + 1-inch HF 2-way full-range loudspeaker
• Two-way high-output full-range
• Italian 1-inch exit HF compression driver
• Italian 12-inch LF transducer with weather protected cone and plates for outdoor use
• Advanced crossover with HF protection
• Variable intensity horn for even coverage
• 400W continuous, 1600W peak power handling
• Integral M8 threaded points for suspension
• Vented LF enclosure
The ENCORE Ei12 is unique loudspeaker designed for main system applications for auditoriums and houses of worship. Employing an incredibly low-distortion, Italian 12-inch woofer; the Ei12 will astound you with performance that blows away ordinary 12-inch speakers. A specially designed crossover network integrates the speaker with an Italian 1-inch pure titanium HF compression driver. The driver is coupled to asymmetrical horn for precise and even coverage depending on application. HF overload protection is provided for reliable, long term operation.
ENCORE Ei 12 offers excellent speech intelligibility in crucial spaces that can be highly diverse in layout and scale, as well as in many heritage settings, highly reverberant. The Ei 12 is an ideal solution for venues that need maximum quality and coverage without any aesthetic compromise.
• High output compact 12-inch LF + 1-inch HF
• 400W AES, 1600W peak power handling
• 2-way full-range loudspeaker
• Auditoriums
• Houses of worship
• Various installations
| TYPE | Two-way compact/monitor (full-range) |
|---|---|
| FREQUENCY RANGE | 50Hz-19kHz |
| DRIVERS LF | 1 x 12-inch reflex-loaded direct radiator |
| DRIVERS HF | 1 x 1-inch exit HF compression driver horn loaded |
| RATED POWER | 400W AES, 1600W peak |
| SENSITIVITY | 98dB |
| MAXIMUM SPL (CALCULATED @ IM) | 119dB continuous, 125dB peak |
| NOMINAL IMPEDANCE | 8 ohms |
| DISPERSION (-6db) | Variable |
| CROSSOVER | 1.6kHz passive |
| ENCLOSURE | BWP ply construction |
| FINISH | Lloyd Lee Co. weather resistant textured paint cover |
| PROTECTIVE GRILLE | Perforated steel powder coated, 16G. |
| CONNECTORS | 2 x Neutrik NL4 |
| DIMENSIONS | --- mm x --- mm x --- mm (W x H x D) |
| WEIGHT | 21 Kg |
